P8 SMD 960x960mm Outdoor Fixed Install Advertising LED Display/Screen with Pixel Pitch 8mm

P8 SMD 960x960mm Outdoor Fixed Install Advertising LED Display/Screen with Pixel Pitch 8mm

  • P8 SMD  960x960mm Outdoor Fixed Install Advertising LED Display/Screen with Pixel Pitch 8mm
  • P8 SMD  960x960mm Outdoor Fixed Install Advertising LED Display/Screen with Pixel Pitch 8mm
  • P8 SMD  960x960mm Outdoor Fixed Install Advertising LED Display/Screen with Pixel Pitch 8mm
  • P8 SMD  960x960mm Outdoor Fixed Install Advertising LED Display/Screen with Pixel Pitch 8mm
  • P8 SMD  960x960mm Outdoor Fixed Install Advertising LED Display/Screen with Pixel Pitch 8mm
  • P8 SMD  960x960mm Outdoor Fixed Install Advertising LED Display/Screen with Pixel Pitch 8mm
P8 SMD  960x960mm Outdoor Fixed Install Advertising LED Display/Screen with Pixel Pitch 8mm
Product Details:
Place of Origin: CHINA
Brand Name: SCXK
Certification: CB,CE,ROHS,FCC,SASO
Model Number: P8
Payment & Shipping Terms:
Minimum Order Quantity: 16 SQM
Price: negotiation
Packaging Details: wooden case,flight case,it is up to you
Delivery Time: 3-12 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 4200 sqm month
Contact Now
Detailed Product Description
Application:: Outdoor, Outdoor Adervertising Color:: Full Color
Panel Size:: 1024mm*1024mm Pixel Pitch:: 8mm
Display Function:: Video LED Chip Brand:: Epistar
Brightness:: Above 6000nits Viewing Angle:: 140H,120V
Certification:: CE&ROHS Product Name:: Led Sign Display
High Light:

full color led signs outdoor

,

outdoor full color led screen

                                    SCX LED Outdoor Advertising Screen SMD P8 LED Display Video Digital Billboard For Shopping Mall



steel frame fixed installation 10000nits super bright Nationstar SMD full color P8 outdoor advertising led sign display

Features:

1.raw materials
We use taiwan famous led chip brand Epistar andSilan.we guarantee the the raw materials are of good quality.
2.waterproof and high brightness
Can totally prevent from water and dust with grade IP 65,asl with brightness more than 9000cd/m2,even
against strong sunshine it still can provide the high brightness display effect.
3.perfect visual effect
The display effecrt is clear,vivid and good color consistency make it possible to be an excellent led display screen.
4.most cost-effective
There is no middleman and trading company here,we are pro led display manufacturer for more than 10 years,we sure our products are of good quality with a reasonable price.
5.wide range of application
P8 outdoor full color led display can meet the general requirements,It can be widely used in gym,plaza,shopping mall,bank,canteen,station and airport,it would be your ideal advertising LED board.



Features


1: High brightness over 7500nits by using Epistar big LED chip from Taiwan;
2: High color output: 16 bit color so the video,images shown on the LED screen is very fresh and vivid.It catches the eyes of more audiences,making your advertising very effient.
3: High refresh rate over 3840HZ/S;when you take photoes or video,no scaning lines.
4: High waterproof function: IP65 front and IP54 back.Our cabinet backdoor has special cover,no need make additional frame to protect waterproof from the rear side.
We react in 1 day,our sales will submit a good proposal based on your project,welcome to send an inquiry and visit our factory in Shenzhen,China.



Technical Parameters



Pixel Pitch 8mm
Pixel Density 15625dots/sqm
Color Configuration 1R1G1B
LED Package SMD3535
Module Size 256mm x 128mm
Module Resolution 32dots x 16dots
Drive Mode 1/4Scan, Constant Current
Brightness 6500cd/sqm
Viewing Distance 8m-200m
Interface Port HUB-75
Module Weight 0.3KG/pcs
Viewing Angle H: 140°; V:140°
Refresh Rate 3840HZ
Standard Cabinet Size 1024m x 1024mm
Cabinet Weight 40G/pcs
Frame Rate 120frame/sec
Grey Scale 16.7M colors(Synchronized)
Power Input AC110V/ 220V ±10%, 50HZ
Max Power Consumption 650W/sqm
Ave. Power Consumption 250W/sqm
Working Temperature -20℃~+50℃
Blind Spot Rate <1/10000
Life Span >100,000 Hours
Waterproof IP65
Operating Humidity 10%~95%
Control Method Synchronous, 4G, WIFI, USB
Control PC With DVI Graphic card
Operating System Win 98, Win2000, XP, Win7, Win8 , Win10 etc

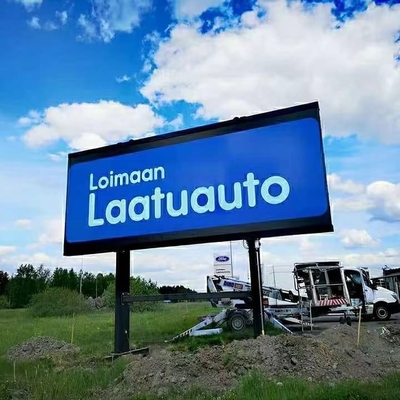

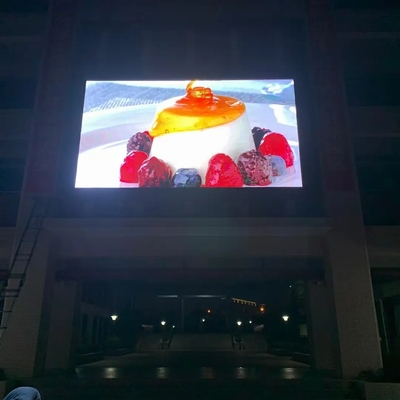

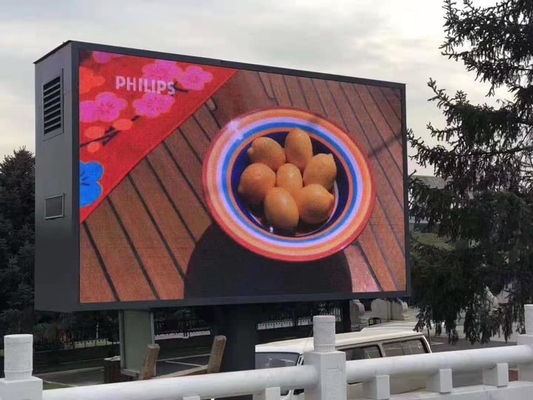

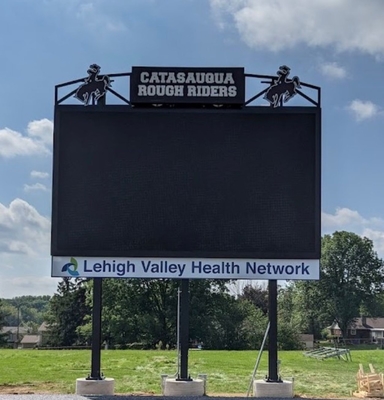

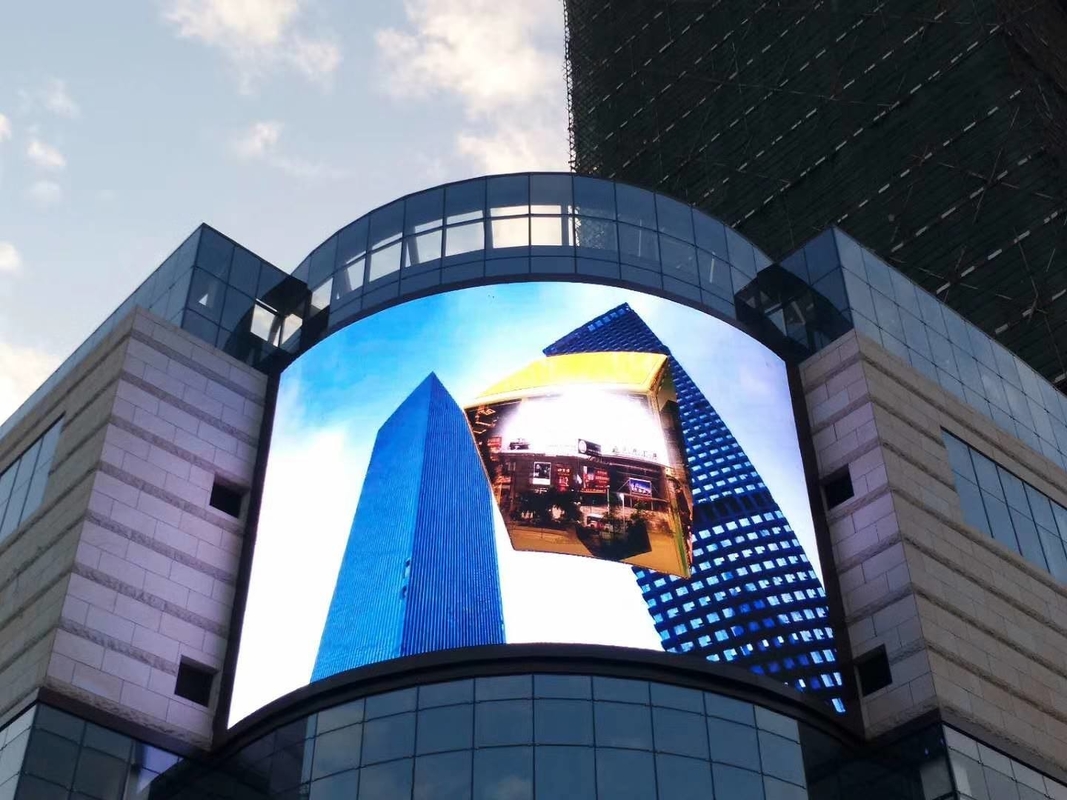

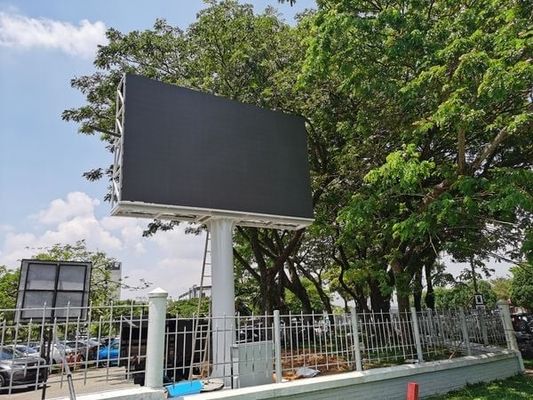

Our Cases

P8 SMD  960x960mm Outdoor Fixed Install Advertising LED Display/Screen with Pixel Pitch 8mm 0

P8 SMD  960x960mm Outdoor Fixed Install Advertising LED Display/Screen with Pixel Pitch 8mm 1



Our Service



Pre-sale service


1. Reply enquiries in 24 hours.


2. Market research and forecast for customer.


3. Provide professional solutions based on customer's requirement.


4. Offer sample and all document as customers required.


5. Other services, such as factory visiting and so on.

In-sale service


1. Tracking report of production.


2. Quality test report for every order.


3. Photos and videos as per customer's requirement.


After-sale service


1. Lifetime maintenance and software upgrade.


2. Complaint respond period not exceed 24 hours, maintenance guidance and problem solution supplied in 48 hours.


3. Free technician training.


4. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.


5. Engineer guide installation onsite if needed.



FAQ

Q1: When is the delivery time?
A1: we will accomplish manufacturing within 10 days after receiving the deposit.
Q2: What is the payment method?
A2: We support a variety of payment methods, the most common is the TT.
Q3: Can I have a sample order for led display product?
A: Yes, we welcome sample order to test and check quality. Both for LED module and whole screen.
Q4: How long is the warranty?
A4: 2 year
Q5: Can it play HD video?
A5: Yes, it can realize HD video function with Linsn controlling system.
Q6: What's the controlling system?
A6: Our standard controlling system for this model is Linsn, Novastar. Also support other controlling system, like Xixun,TF, Colorlight, etc.
