Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CB/CE/ROHS/FCC/ISO/UL |
| Model Number: | SMD P10 |
| Minimum Order Quantity: | 16 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 3-12 working day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5200 sqm month |
| Application:: | Play Videos And Images | Color:: | Full Color |
|---|---|---|---|
| Panel Size:: | 960mmx960mm | Pixel Pitch:: | 10mm |
| Use: | Advertising Publish, Shopping Mall | Specification:: | Video Wall |
| Usage:: | Outdoor | Module Size:: | 320x160mm |
| Pixel Density:: | 10000dots/m2 | Power Supply:: | 110V~240V AC |
| Brightness: | 7500cd/sqm | ||
| High Light: | full color led signs outdoor,outdoor full color led screen |
||
Description:
P10 SMD outdoor full color LED display screen adopts physical SMT technology which makes the picture more clear and vivid, no flicker and blind dots. The screen is manufactured in a waterproof and dustproof design so it can work very well in rain and sunshine.
It characterized by perfect vivid image, super brightness, high refresh rate, long life span and stable work, and waterproof, etc.
It is widely used in advertising, sports, industrial enterprise, transportation, stations, terminals, airports, construction, education system and other public places.
Features:
1:High brightness over 7500nits by using Epistar big LED chip from Taiwan;
2:High color output: 16 bit color so the video,images shown on the LED screen is very fresh and vivid.It catches the eyes of more audiences,making your advertising very effient.
3:High refresh rate over 3840HZ/S;when you take photoes or video,no scaning lines.
4 High waterproof function: IP65 front and IP54 back.Our cabinet backdoor has special cover,no need make additional frame to protect waterproof from the rear side.
We react in 1 day,our sales will submit a good proposal based on your project,welcome to send an inquiry and visit our factory in Shenzhen,China.
♦ Product specification
| SMD P10 | ||||||||||||||
| Lamp size | 3535 | |||||||||||||
| Resolution/mm | 10 | |||||||||||||
| Pixel configuration | RGB 3 in 1 | |||||||||||||
| Pixel density/pixels/m² | 10000/m² | |||||||||||||
| Module resolution | 32x16 | |||||||||||||
| Module size/mm | 320x160 | |||||||||||||
| View distance | ≥8m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >8000cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 14 bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | 1/4 | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >1200Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
| Maximum power:/㎡ | <750W | |||||||||||||
| Average power:/㎡ | <280W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||

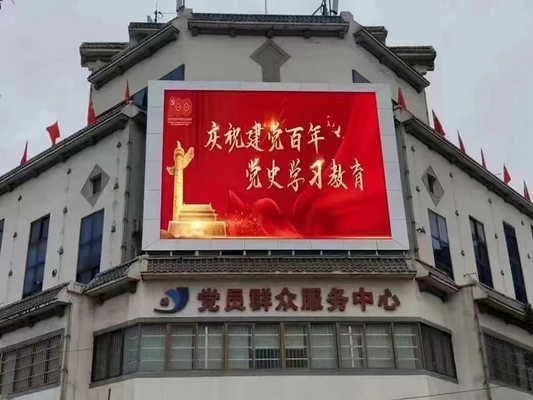

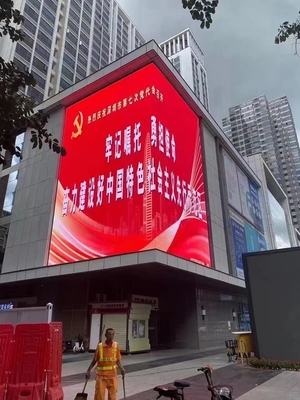

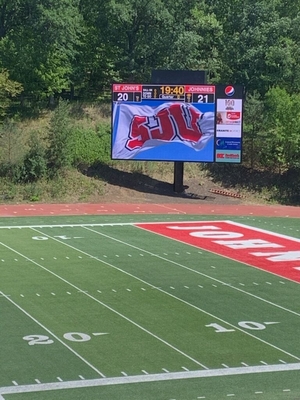

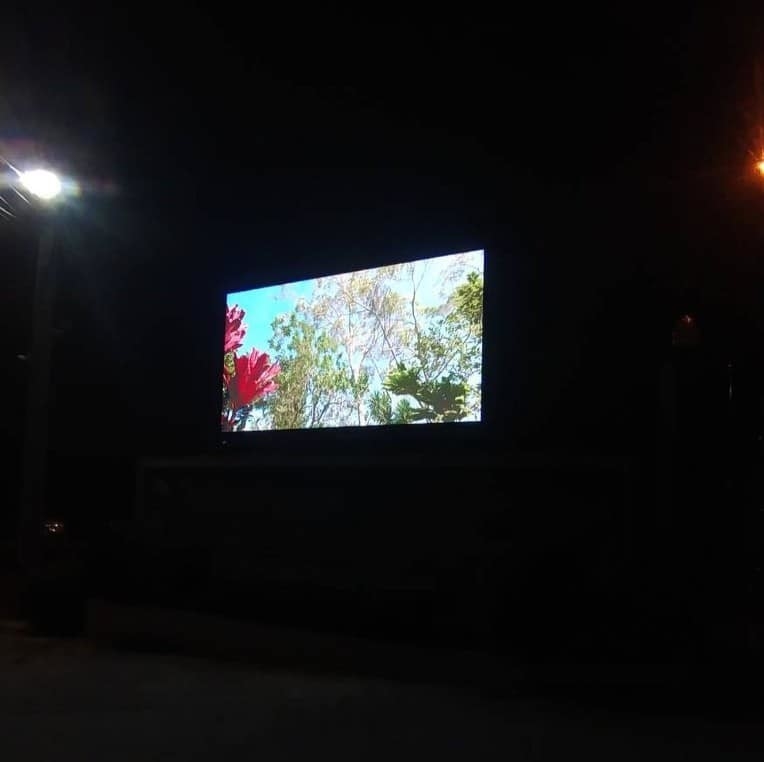

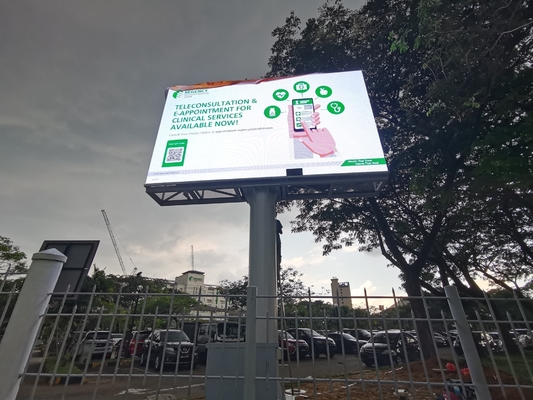

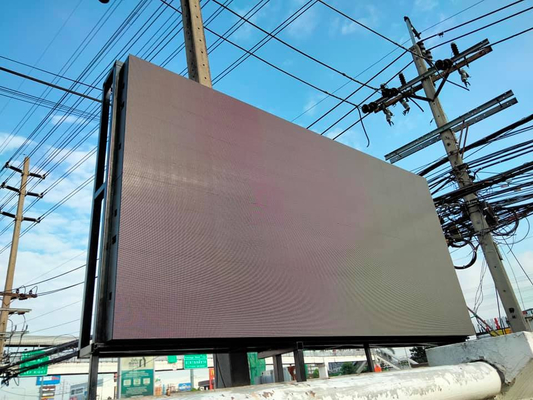

Our case
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Applications
LED display can be widely used in advertising,multi-media,stadium,stage,rental show,transit directions,etc.
♦ Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
♦ Why choose us:
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
After-Sales Service
1, Guarantee
(a) we guarantee that all of our LED displays and necessary components are well tested before shipment, and we will replace or repair the goods if any problem that belongs to us happens during 2 years.
(b) we provide free life-time maintenance and only charge the raw material cost.
2, Technical Support
(a) we provide free technical support, which includes operation training and maintenance training in the factory
(b) we can send our engineers to your country after negotiation
3, Maintenance and Consultation
(a) we provide full maintenance for a lifetime and only charge the raw material cost
(b) we also provide lifetime consultation through Email, SMS, Phone call, etc.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2009,sell to Domestic Market(30.00%),North America(16.00%),Eastern Asia(12.00%),Eastern Europe(10.00%),Western Europe(10.00%),Southern Europe(8.00%),Mid East(3.00%),Central America(3.00%),Northern Europe(3.00%),South Asia(3.00%),Southeast Asia(2.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
led display,led display screen,LED screen,creative LED display,irregular LED display
4. why should you buy from us not from other suppliers?
* A member of Ledman Group(stock code: 300162), more than 13 years in Led history
* 130000m² manufacture bases in Shenzhen City & Huizhou City
* National Hi-tech Certificate Enterprise with ISO9001- 2008 standard
* 40+ R&D engineers & 60+ invention, industrial design and utility model patents
* OEM & ODM optional, multi-solutions provider
* On-time delivery, consistant supply, competitive prices, perfect after-sale service
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU；
Accepted Payment Currency:USD,EUR,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish,French,Russian,Korean
Contact Person: BOSCO
Tel: +8615177780539
