Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CB/CE/ROHS/FCC/ISO/UL |
| Model Number: | SMD P6 |
| Minimum Order Quantity: | 13 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case，flight case.it is up to you. |
| Delivery Time: | 3-16 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5200 sqm month |
| Application:: | Outdoor | Color:: | Full Color |
|---|---|---|---|
| Panel Size:: | 192x192mm | Media Available:: | Datasheet, Photo, EDA/CAD Models |
| Specification:: | Video Wall | Application::: | Outdoor Advertising, Outdoor Advertising |
| Brightness::: | 5500- 7000 Cd/sqm | Use Voltage::: | AC 220V/110V±10% |
| Certificate::: | CE RoHS FCC Certifications | Refresh Rate::: | 1920 -3840 Hz |
| Cabinet Size::: | 960*960 Mm/768*768mm | ||
| High Light: | full color led signs outdoor,outdoor full color led screen |
||
SCX LED high brightness p6 full color advertising display outdoor screens led mobile advertising
1, With good lightening accordance and no mosaic
2,Can play different formats of image files, flash, WAV/MIDI, video signal from
TV, video signal from video and other equipment
3, Different video frequency can be changed freely at the same time, and the image
can be enlarged and reduced
4,High brightness, and can be adjustable, meets the need of changing requirement
of customer in environment
5,Uses real pixels rather than virtual pixels, better viewing effect
1. Wide application field&short ROI time:Commercial advertising LED display, Stadium perimeter LED display,Mobile trailer LED panel for mobile media,shopping mall LED panel for logo showing,bank&stock exchange LED panel for rates showing,train&bus station,air port,telecommunication LED panel system for information showing and instruction.
2. High Contrast:7000:1,which is a very high level to ensure a vivid image of our LED display screen system.
3. First-class LED chip: Supplied by Ni-chia of Japan to ensure the long lifetime and high brightness of our LED screen system.
4.Clear vivid image quality even in direct, full-on sunlight to ensure you attracts more audience to get short ROI of your LED screen’s investment.
5.Long-term Brightness:7500-nit brightness( for outdoor full color) (1200-2700 nits brightness for indoor full color)capacity throughout product lifetime of the LED display.
♦ Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 6-8 working days
8. Excellent R&D team,factory Price and assure you quality goods.
♦ Product specification
| outdoor SMD P6 | ||||||||||||||
| Resolution/mm | 6 | |||||||||||||
| Pixel configuration | 1R1G1B | |||||||||||||
| Pixel density/pixels/m² | 27778/m² | |||||||||||||
| Module resolution | 32*32 | |||||||||||||
| Cabinet size/mm | 576x576 | |||||||||||||
| View distance | 5-400m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >8000cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 16bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | (1/4) | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >4200Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ | |||||||||||||
| Maximum power:/㎡ | <900W | |||||||||||||
| Average power:/㎡ | <350W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||

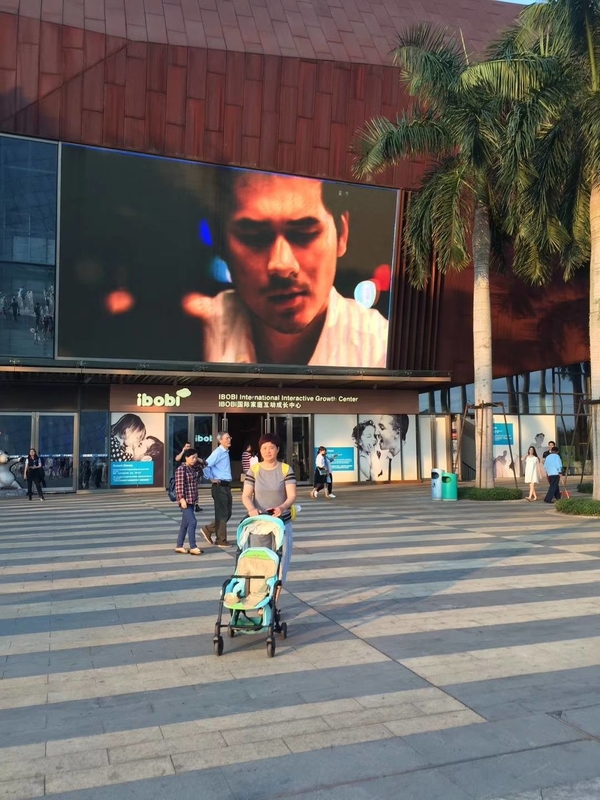

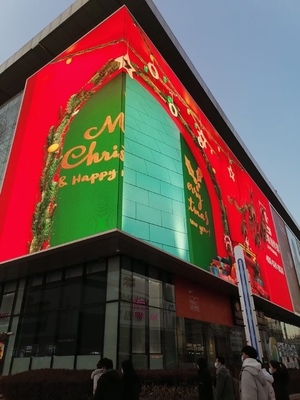

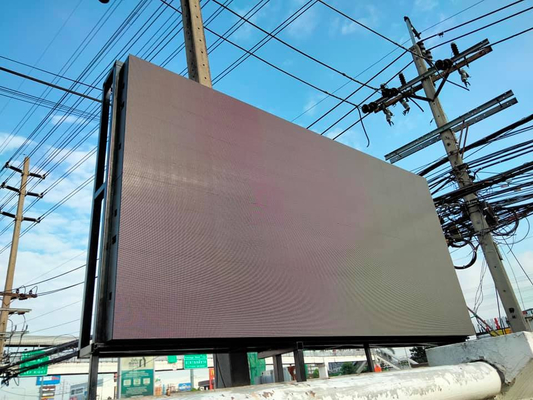

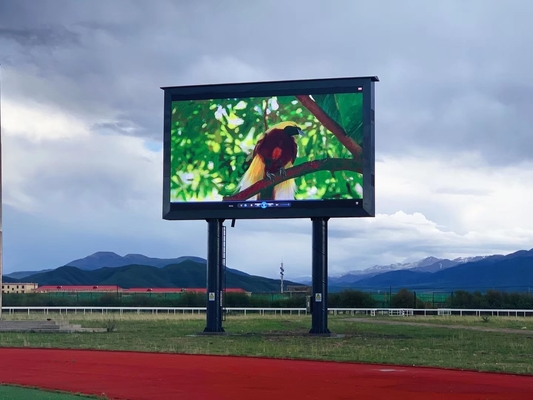

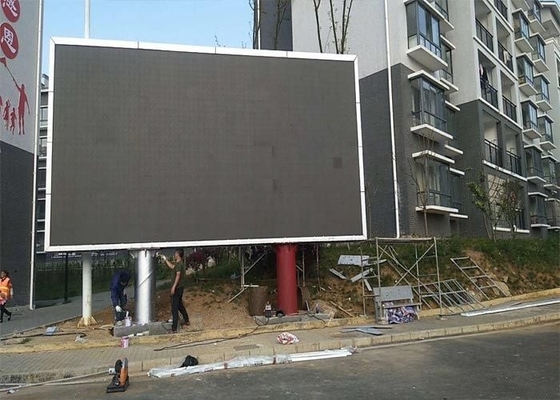

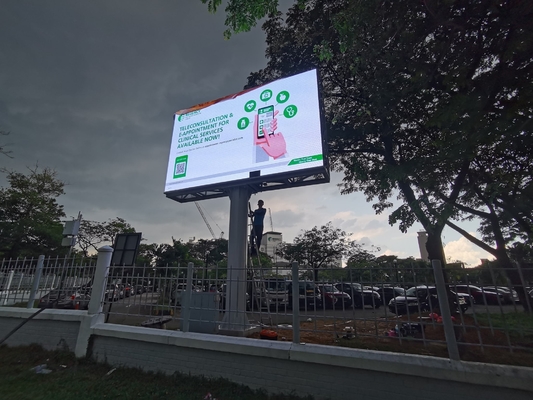

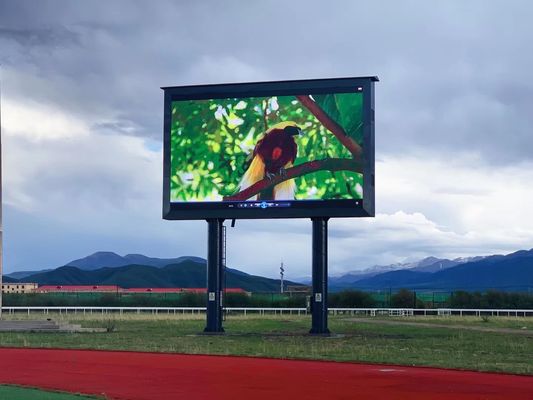

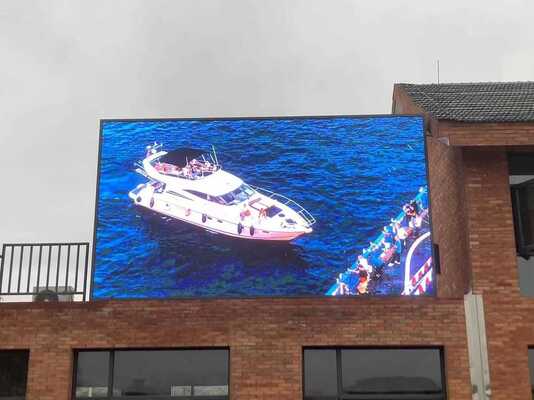

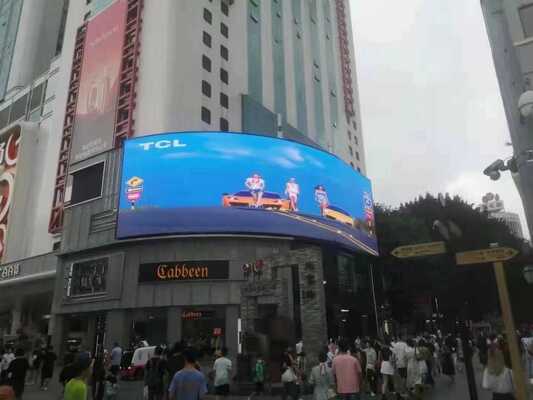

Our case
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and shipping
1. Delivery time: Accomplish manufacturing within7- 10 days after receiving the deposit.
2. Before delivery, we will test the display, and keep it light up for 72 hours, and check all the parts of the display to confirm it is OK for delivery.
3. Package:(1)carton (2) anti-shaking wooden case (3) flight case
4. Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
FAQ
Q1: How are these LED display controlled? RE: We use Nova control system. Before delivery, our engineer will very well programmed and the end users could have an turn-key led display.
Q2: What the software your company uses for your product? RE: We mainly use Novastar / Colorlight and Linsn.
Q3: Can I have a sample order for Led display ? RE: Yes , we welcome sample order to check and test quality. Maxed samples are acceptable.
Q4: What about the lead time ? RE: Our regular production time is 15-20normal days against advance payment, for huge quantity, please check with our sales manager.
Q5: What is the warranty for your led display? Re: The standard warranty is 2years, while it is possible to extend the max. warranty to 5years with extra cost.
Q6: How to be our distributor? Re: Please check with our sales manager for details.
Q7:How to maintenance led screen? Re: In usually every year to maintenance led screen one time, clear the led mask, checking the cables connection, if any led screen modules fail, you can replace it with our spare modules
Q8. What if I don't know how to install the screen? a. We will provide your details drawing for installation led screen, But you need provide us on-site picture for installation place. b. We provide training 2 people in the factory for free. c. We can send our engineers to your country to guide how to install the screen.
Q9. How to deliver my goods?
