Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CB/CE/ROHS/FCC/ISO/UL |
| Model Number: | SMDP10 |
| Minimum Order Quantity: | 12 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case，flight case，it is up to you. |
| Delivery Time: | 5-12 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5200 sqm month |
| Application:: | Outdoor Application Fields | Color:: | RGB |
|---|---|---|---|
| Panel Size:: | 960*960*100mm | Pixel Pitch:: | 10mm, 10mm |
| The Maximum Power Consumption:: | 900W/m^2 | The Average Power Consumption:: | 300W/m^2 |
| Brightness:: | ≥6000cd/m^2 | Refreshing Rate:: | ≥1920Hz |
| Maintenance:: | Front And Rear | Cabinet Resolution:: | 96x96 Pixels |
| Warranty: | 3 Years | ||
| High Light: | full color led signs outdoor,outdoor full color led screen |
||
| LED Module | ||
|
|
pixel pitch | 10mm |
| module size | 320*160mm | |
| module resolution | 32*16 | |
| LED | SMD3535 | |
| Scan | 1/4scan,1/2 scan | |
| Application | Outdoor | |
| Weight | 0.5KG | |
| LED Cabinet conponent | ||
|
|
Cabinet Size |
640*640*70mm/960*960*130mm/ 1024*1024*130mm/1280*960*130mm |
| Cabinet resolution | The resolution according to the cabinet size | |
| module quantity | The module quantity according to the cabinet size | |
| LED driver | G-Energy/Meanwell 5v,40a/5v 60A | |
| Material | Sealed Iron Cabinet/Steel | |
| LED Screen | ||||
|
|
Pixel | 10000dots/Sqm | Continuous Working Hours | >72 hours |
| Ave power consumption | 230W/Sqm | Using Life | 100,000 hours | |
| Max power consumption | 580W/Sqm | MTBF | >10,000H | |
| Optimum Viewing Distance(m) | 6-100m | Scatter OOC Point | <0.01% | |
| Brightness | >6500cd | Continuous OOC Point | None | |
| Refresh Rate | 300---2440 frame/s | IP Grade | IP65/IP54 | |
| LED Drive mode | Constant Current | Working Temperature | -35C----+60C | |
| Display color | 17M——69G | Working Humidity | 10---90% | |
| Voltage | 100-240V | |||

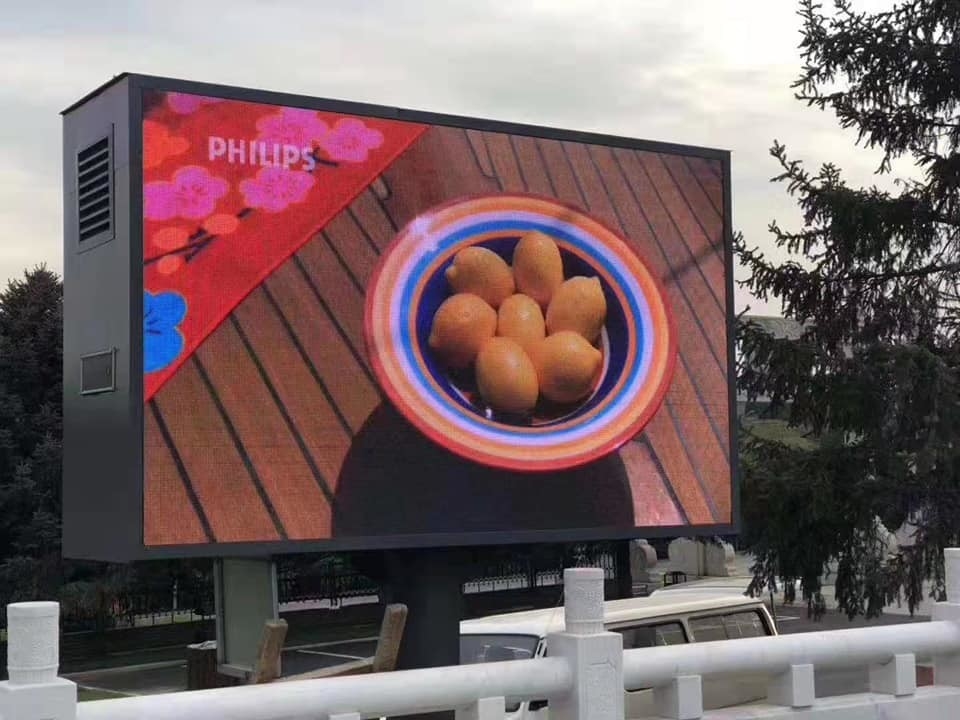

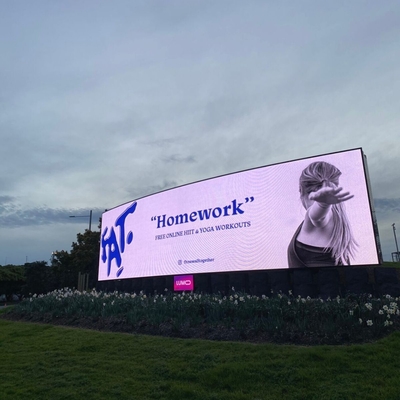

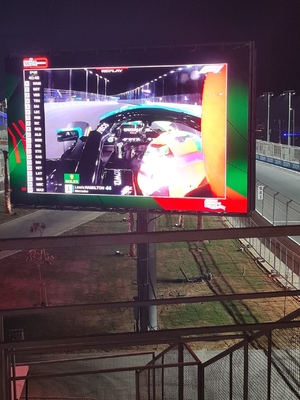

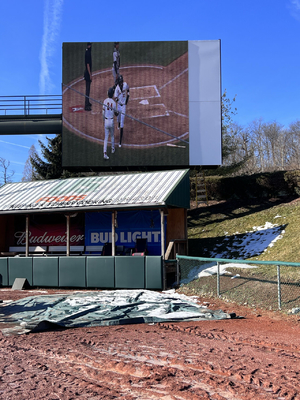

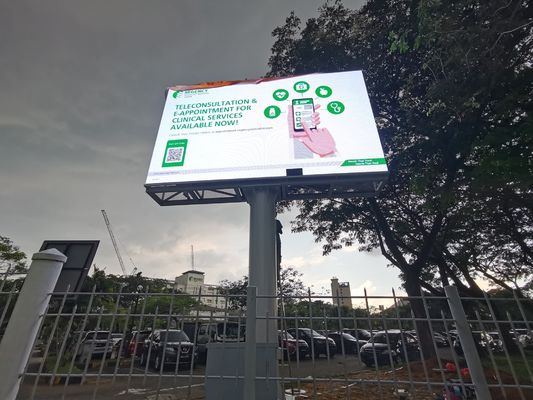

Our Case
Our service
Service goal: Fast, In time, Customer first
1, Free inquiry before and after sell.
2, Warranty: 2 years.
3, Maintain and repair. Respond in time (within 4 hours). Repair within 24 hours for common failure, 72 hours for sever failure.
Maintain regularly.
4, Provide spare parts and technical tolls for long-term.
5, Technology support for important action and programs.
6, Free system upgrade.
7, Free training.
FAQ
Q1. Can I have a sample order for led screen?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1-7 days, mass production time needs 1-2 weeks for order quantity more than 15pcs.
Q3. Do you have any MOQ limit for led screen order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT, or send by air or sea . It usually takes 3-5 days to arrive. Airline and sea
shipping also optional.
