High Brightness Full Color Stage Led Screens P3.91 With Die Casting Aluminum

High Brightness Full Color Stage Led Screens P3.91 With Die Casting Aluminum

    • High Brightness Full Color Stage Led Screens P3.91 With Die Casting Aluminum
    • High Brightness Full Color Stage Led Screens P3.91 With Die Casting Aluminum
    • High Brightness Full Color Stage Led Screens P3.91 With Die Casting Aluminum
  • High Brightness Full Color Stage Led Screens P3.91 With Die Casting Aluminum

    Product Details:

    Place of Origin: CHINA
    Brand Name: SCXK
    Certification: CB/CE/ROHS/FCC/ISO/UL
    Model Number: SMD-P3.91

    Payment & Shipping Terms:

    Minimum Order Quantity: negotiation
    Price: negotiation
    Packaging Details: wooden case,flight case,it is up to you.
    Delivery Time: 7-10 working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 5000 sqm month
    Contact Now
    Detailed Product Description
    Lamp Size: 2121 Resolution/mm: 3.91
    Pixel Configuration: RGB 3 In 1 Pixel Density/pixels/m²: 64510/m²
    Module Size/mm: 250x250 White Balance Brightness: >8000cd/㎡
    Refresh Frequency: >4200Hz Scanning Mode: 1/8
    Product Name:: Full Color LED Display P3.91 Stage LED Screen With Die-casting Aluminum

    High Brightness Full Colorstage Led Screens P3.91 With Die Casting Aluminum



    Product Features



    1, Outdoor high resolution and high brightness, smallest pixel in the world 3.91mm, unequalled image quality in outdoor environment.
    2, Ingress protection being IP65, weather proof and dust proof.
    3, High brightness uniformity and color uniformity(≥95%)
    4, Super thin and light with die-casting aluminum cabinet design.
    5, Good anti-UV and anti-oxidation performance.
    6, Large viewing distance, 140° in horizontal, 140° in vertical.
    7, Excellent flatness and no splicing gap between modules
    8, Quick installation and removal with facile connection lock


    Product specification

    SMD P3.91
    Lamp size 2121
    Resolution/mm 3.91
    Pixel configuration RGB 3 in 1
    Pixel density/pixels/m² 64510/m²
    Module resolution 64x64
    Module size/mm 250x250
    View distance ≥2m
    Single point brightness adjust Can be added
    Single point color adjust Can be added
    White balance brightness >8000cd/㎡
    Color temperature 6500K-9500K
    Horizontal view angle 120(degrees)
    Vertical view angle 60(degrees)
    Signal Process bit 10 or 14 bit
    Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
    Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
    Driving mode Constant driving current
    Scanning mode 1/8
    Frame rate 60Hz
    Refresh frequency >4200Hz
    Control mode Computer synchronous
    Brightness adjusted range Manual, automatic operation, stepless continuous adjusted
    255 steps. No grey loss
    Out of control point <1/10000
    Working hours ≥72hours
    Mean Time Between Failure >5000hours
    Life time 100000hours
    Life-all-white(brightness halving) 50000hours
    Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
    Maximum power:/㎡ <1000W
    Average power:/㎡ <280W
    Self-check technology LED spot self-check, communications check, power check,
    temperature monitor(need customization)
    Remote monitoring Remote supervision and control, record potential fault,
    send out warning signs to the operators.(need customization)
    Software environment WindowsNT,Windows1999,WindowsXP
    Luminous point width between centres Deviation<3%
    Brightness uniformity <10%
    Color uniformity(chromaticity coordinate) ±0.003
    Power supply request AC85-264V(50Hz-60Hz)
    Contrast (1000:1)
    System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
    Humidity(working) working:10-95%
    Humidity(storing) storing:10-95%


    Product Overviews

    Items Indoor Led display:
    P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10
    Outdoor Led display:
    P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25
    Material steel,aluminum ,die casting aluminum
    Payment
    terms
    30% deposit before production, 70% balance before shipping
    T/T
    Western Union
    Packing: Standard Export Carton with fully Polyfoam or Pearl Wool
    Flight case;
    Anti-shaking wooden case
    Shipping: 5 to 7 working days upon receiving deposit payment
    After-Sales-Service: Lifetime with professional engineer support for free.
    Within 5 year, supply spare parts for free if has quality problem
    ( not by man-made damage)
    Using Range Shopping mall,bank,bus station, train station,
    center of downtown, airport, school, factory, bus, taxi,and so on.

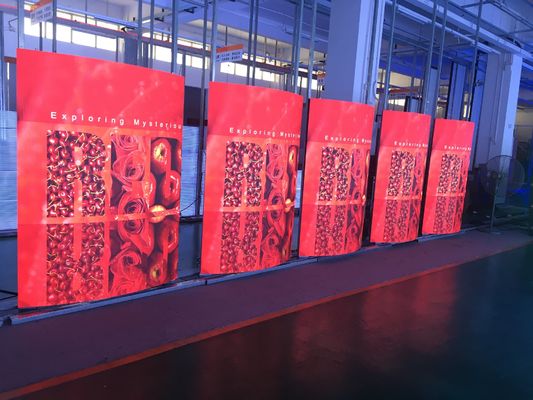

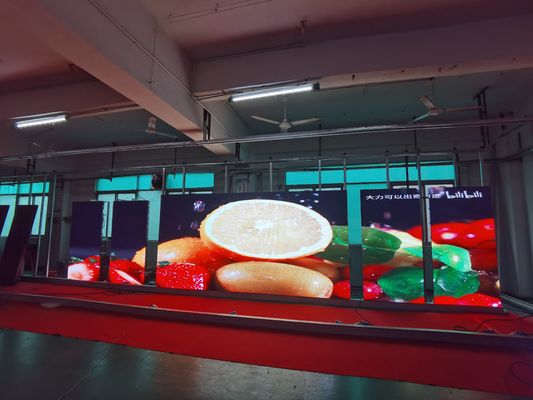

    Production Pictures


    Stage Screen Video Wall Full Color Indoor Outdoor Rental LED Display P2.6 P2.9 P3.91 P4.81 P5.95 P6.25



    Stage Screen Video Wall Full Color Indoor Outdoor Rental LED Display P2.6 P2.9 P3.91 P4.81 P5.95 P6.25





    Stage Screen Video Wall Full Color Indoor Outdoor Rental LED Display P2.6 P2.9 P3.91 P4.81 P5.95 P6.25

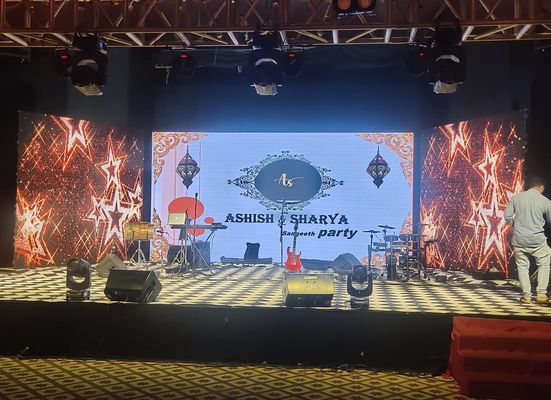

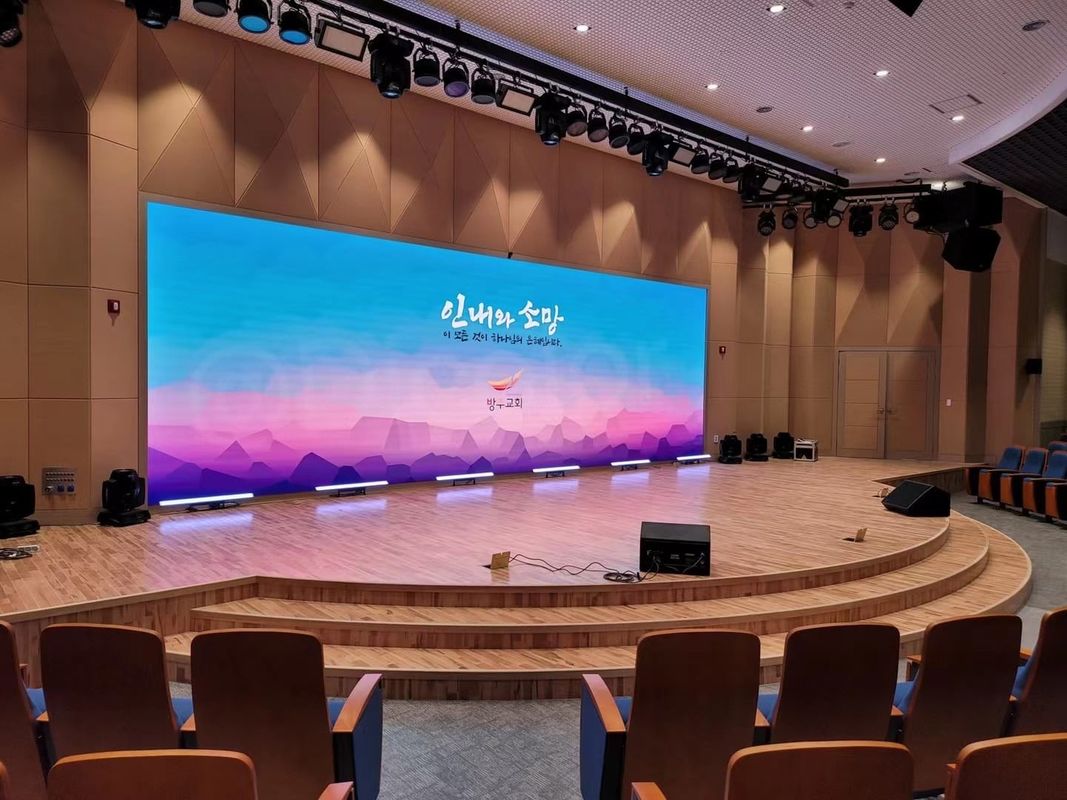

    Application



    Stage Screen Video Wall Full Color Indoor Outdoor Rental LED Display P2.6 P2.9 P3.91 P4.81 P5.95 P6.25











    Package



    Stage Screen Video Wall Full Color Indoor Outdoor Rental LED Display P2.6 P2.9 P3.91 P4.81 P5.95 P6.25











    Company Informaiton

    Shenzhen ShiChuangXinke Electronics Co.,Ltd (SCX LED) was located in Shenzhen,We are the high technology enterprise Company,and specialized in research,development,production and sales the Rental LED display screen,Fix Install LED display sreen and Poster LED etc.
    SCX LED is a full color LED display, LED screen and LED should products as the main business, scientific research, development, manufacturing, and engineering for the integration of high-tech enterprises. The company is located in shenzhen baoan district shajing, has a modern research and development base, equipped with the world advanced level of scientific research, production, analysis, testing equipment, has a high-quality scientific research team, committed to the development of the industry application in the field of photoelectric photoelectric products and services. Company strictly abide by the "honesty, keep promise" of the enterprise purpose, to build the company into a cross industry step by step, cross-regional, across the international large enterprises with comprehensive operation ability.



    We warmly welcome clients from all over the world to contact us for more information,and we are looking forward to establishing long-term business relationship with you.

    Stage Screen Video Wall Full Color Indoor Outdoor Rental LED Display P2.6 P2.9 P3.91 P4.81 P5.95 P6.25
    Stage Screen Video Wall Full Color Indoor Outdoor Rental LED Display P2.6 P2.9 P3.91 P4.81 P5.95 P6.25



    Production process:
    1) Incoming Inspection→2) SMD→3) Plug-in
    →4) Wave Soldering→5) After Welding→6) Testing
    →7) Semi Finished Aging→8) Module Assembly
    →9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing


    Features
    1. Seamless --- precision cabinet, light weight and more durable.
    2. Quality LEDs --- with wide viewing angle to ensure vivid and sharp images and video.
    3. High refresh rate and high gray scale --- to ensure color consistency and better images
    Packaging and shipping
    Wooden case or flight case package are available.
    Shipping by sea,air or DHL,multiple shipping ways for your choice.
