Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CB,CE,ROHS,FCC,SASO |
| Model Number: | SMD-P8 |
| Minimum Order Quantity: | 13 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case，flight case，it is up to you. |
| Delivery Time: | 5-12 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5200 sqm month |
| Application:: | Outdoor Advertising | Color:: | Full Color |
|---|---|---|---|
| Panel Size:: | 256mm*128mm | Pixel Pitch:: | 8mm, 8mm |
| Module Pixel Resolution:: | 32dots*16dots | Brightness:: | 6500nits |
| Name:: | Outdoor Waterproof Full Color P10 Advertising Large Led Display Screen | Cabinet Material:: | Steel |
| Warranty:: | 2 Years | ||
| High Light: | SMD outdoor led video display,P16 full color led signs |
||
Excellent Quality 4X3 P8 Outdoor Led Screen Use P8 Outdoor 320X160Mm Led Modules Led Display P8 Mbi Ic P8 Led
♦ Technical specification
| outdoor SMD P8 | ||||||||||||||
| Resolution/mm | 8 | |||||||||||||
| Pixel configuration | 1R1G1B | |||||||||||||
| Pixel density/pixels/m² | 15625/m² | |||||||||||||
| Module resolution | 32x16 | |||||||||||||
| Module size/mm | 256x128 | |||||||||||||
| View distance | 7-500m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >8000cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 16bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | (1/4) | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >4200Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ | |||||||||||||
| Maximum power:/㎡ | <950W | |||||||||||||
| Average power:/㎡ | <350W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||

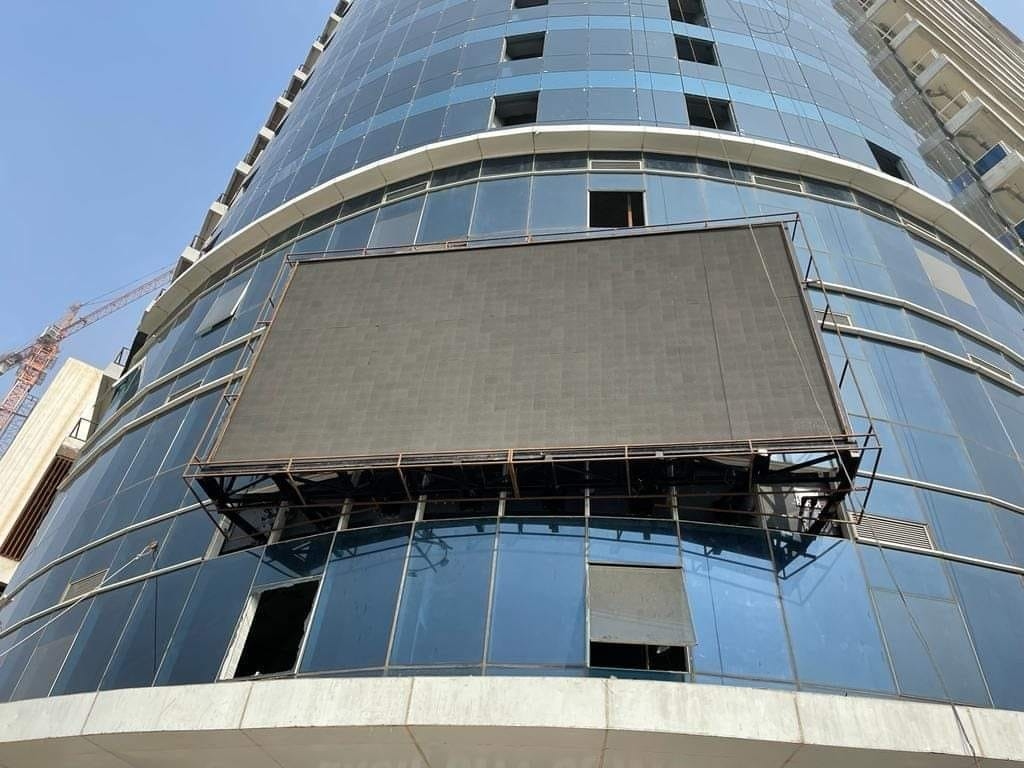

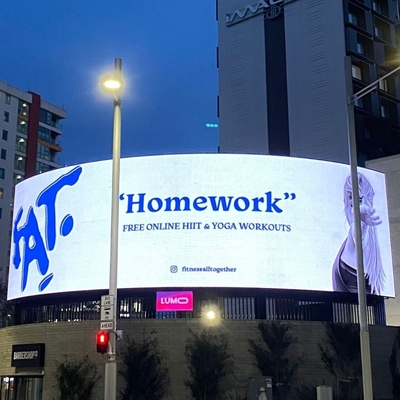

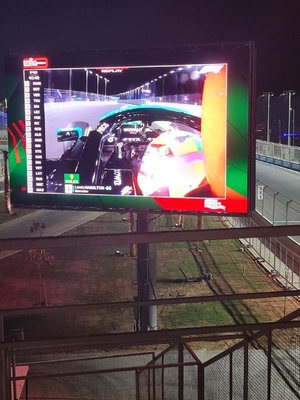

Our case
♦ Production process
1) Incoming Inspection→2)SMD→3)Plug-in
→4) Wave Soldering→5)After Welding→6)Testing
→7) Semi Finished Aging→8)Module Assembly
→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Applications
--- Outdoor and indoor advertising, digital billboards, advertising companies
--- Sports halls, fields, playgrounds,school church
--- Airports, bus stations and railway passenger terminals.
--- Facades of shopping malls, department stores, banks and car dealerships.
--- Architecture and social projects, information systems in cities.
--- Show-business, concerts, festivals, motor shows and other public events.
Product Application
Outdoor led screen can work under the sun for high brightness and large viewing angle with a certain function of a windbreak, rainproof and waterproof.
Which is widely used as outdoor advertising and information media at station, square and shopping mall.

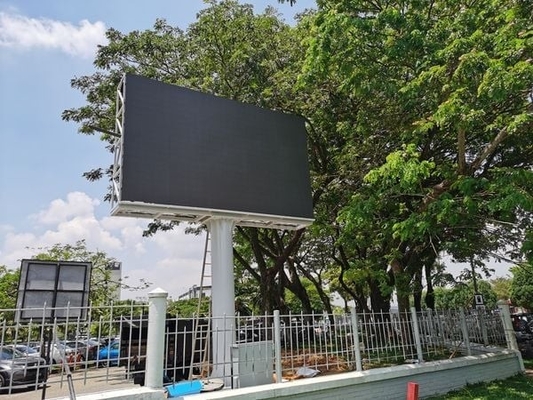

Outdoor led screen can be divided into a pillared screen, wall-mounted screen, and floor-standing screen, etc.
WorkShop
Our Service
FAQ
Q1: How to choose the LED screen suitable for my needs?
A1: When you choose a led screen, you only need to consider three simple questions.
1. Will you use it indoors or outdoors?
2. Is it for rental purpose (need to move from one place to another often) or for fixed installation (to be installed in one place forever)?
3. What is the length and width of the LED screen you want to buy?
Q2: Which pixel pitch should I choose?
A2: There are many differences from 1.25--16mm pixel pitch, in principle it is so-usually indoor LED screens use smaller pixels (1.25mm-10mm), outdoor LEDs use larger pixels (2.5mm-16mm) screens ( For example, huge highway ads).
Q3: Which control system should I choose?
A3: There are synchronous and asynchronous control systems on the market. For large-size LED screens (usually more than 20 square meters), you need to use a synchronous control system; when it is less than 20 square meters, you can use synchronous or asynchronous. For asynchronous control systems, you can choose to use wifi, 3G, 4G and other wireless control.
Q4: How to order from your company?
A4: You can place an order with RGX through Alibaba online or offline transactions, please contact us to confirm before placing an order.
Q5: How to pay?
A5: We accept payment online via Alibaba, or offline to our company account via T / T, Paypal or Westerunion.
Q6: How to ship?
A6: This is optional, and we respect our customers ’choices. You can choose to ship by air, DHL (FedEx, UPS, TNT, EMS, etc.) international express company, or by sea according to the weight, volume and required delivery time of the goods.
Q7: How to install after receiving?
A7: We will provide you with drawings to guide you through the installation. We can also provide drawings of steel structures, software settings drawings or photos, or send our engineers to help you when needed.
