Place of Origin: | China |
Brand Name: | SCXK |
Certification: | CE/ROHS/FCC/ISO/UL |
Model Number: | SMD P6 |
Minimum Order Quantity: | 13 sqm |
---|---|
Price: | negotiation |
Packaging Details: | wooden case,flight case,it is up to you. |
Delivery Time: | 4-16 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 3600 sqm month |
Application:: | Outdoor Advertising | Color:: | Full Color |
---|---|---|---|
Panel Size:: | 960*960mm | Display Function:: | Video |
Pixels:: | 6mm | Brightness: | 6500 |
Module Size:: | 192X192mm | Life Span:: | 100000 |
Certificate:: | CE RoHS CCC FCC ISO9001 | Product Name:: | P6 Outdoor Waterproof LED Fixed Display Screen |
Refresh Rate:: | 1920Hz | ||
High Light: | P6 outdoor full color led signs,Billboard outdoor led display |
P6 Outdoor Waterproof IP65 Fixed Installation LED Display Billboard /Outdoor LED Advertising Digital Display Screen
1.Light ball:
Our company adopts high quality SMD3535 , from raw material processing to encapsulation technology to quality control, we are all more trustworthy than market three without products !
2.Chip:
The solid crystal, gold wire bonding, precision testing of the leading LED packaging technology, equipping with advanced automatic production line and production equipment, the international leading quality inspection and reliability test equipment, guaranteeing the effect of chip quality LED display screen refresh rate is higher.
3.Border:
From details to ensure product quality.The frame thickness is 0.5mm above the market, which is more durable and durable.Surface level not to drop paint, work fine and more beautiful.
4.Factory strength:
Our company focus on full color LED display screen and LED technology industry production, sales and service, our company has the industry advanced, complete automatic rapid assembly lines, production capacity output high on industry.Worldwide commitment and fulfillment of user professional services and guidance.
5.High gray high brush:
The sun is still bright and bright picture, the display is natural and true, each module has been through the point brightness and chroma correction, brightness and color uniformity.
High waterproof and dustproof rating (before IP65), strong anti-seismic ability to adapt to extreme weather
Flatness: the whole screen: ≤ ± 1mm patchwork between the module: ≤ 1mm
Viewing distance: 8-200m, the display is clearly visible
Image adjustment: Contrast / tone adjustment / single mode group brightness adjustment
♦ Product specification
outdoor SMD P6 | ||||||||||||||
Lamp size | 3535 | |||||||||||||
Resolution/mm | 6 | |||||||||||||
Pixel configuration | RGB 3 in 1 | |||||||||||||
Pixel density/pixels/m² | 27778/m² | |||||||||||||
Module resolution | 32x32 | |||||||||||||
Module size/mm | 192*192 | |||||||||||||
View distance | ≥6m | |||||||||||||
Single point brightness adjust | Can be added | |||||||||||||
Single point color adjust | Can be added | |||||||||||||
White balance brightness | >1800cd/㎡ | |||||||||||||
Color temperature | 6500K-9500K | |||||||||||||
Horizontal view angle | 120(degrees) | |||||||||||||
Vertical view angle | 120(degrees) | |||||||||||||
Signal Process bit | 10 or 14 bit | |||||||||||||
Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||
Driving mode | Constant driving current | |||||||||||||
Scanning mode | 1/8 | |||||||||||||
Frame rate | 60Hz | |||||||||||||
Refresh frequency | >1200Hz | |||||||||||||
Control mode | Computer synchronous | |||||||||||||
Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
Out of control point | <1/10000 | |||||||||||||
Working hours | ≥72hours | |||||||||||||
Mean Time Between Failure | >5000hours | |||||||||||||
Life time | 100000hours | |||||||||||||
Life-all-white(brightness halving) | 50000hours | |||||||||||||
Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
Maximum power:/㎡ | <1100W | |||||||||||||
Average power:/㎡ | <280W | |||||||||||||
Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
Luminous point width between centres | Deviation<3% | |||||||||||||
Brightness uniformity | <10% | |||||||||||||
Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
Contrast | (1000:1) | |||||||||||||
System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
Humidity(working) | working:10-95% | |||||||||||||
Humidity(storing) | storing:10-95% |

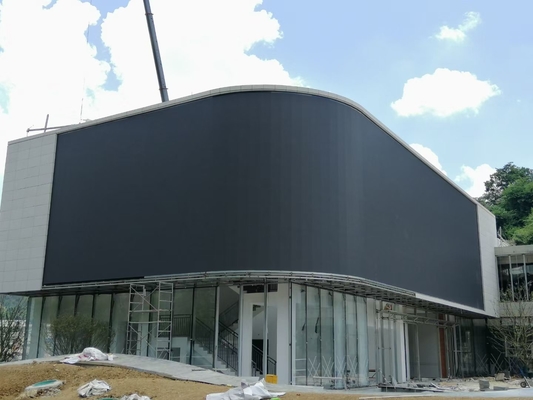

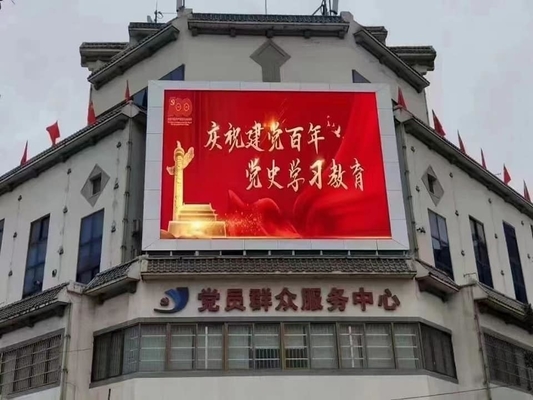

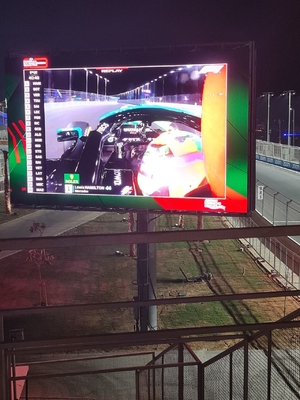

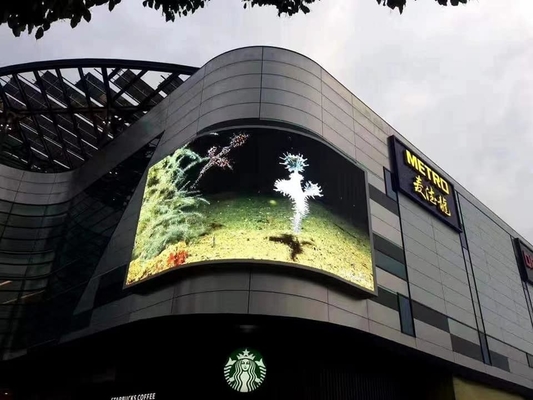

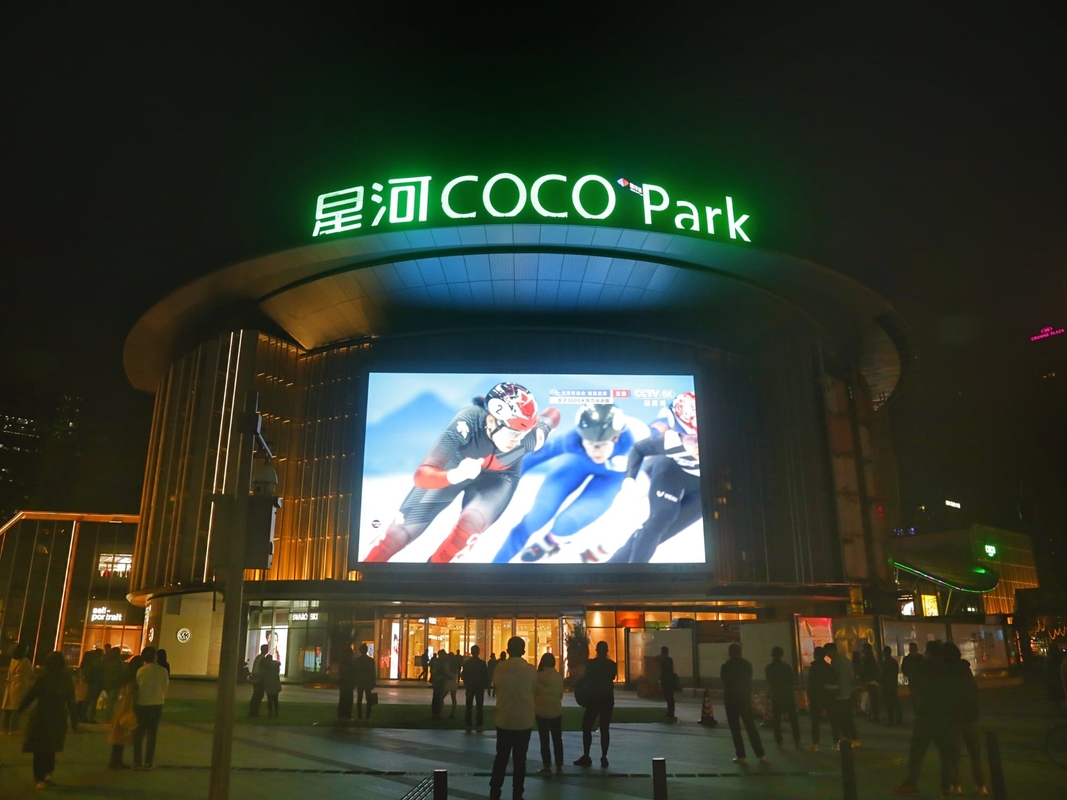

Our case
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
our factory
FAQ
Q1: Are you trading company or manufacturer ?
A: Scree is a professional LED display manufacturer, having been enrolled in led display industry with professional R&D team and
skilled QC team for 11 years
Q2: What is the control system? How is it?
A: We use Novastar/Colorlight/Linsn control system. Support cluster play and management. Support APP/ Phone/ WIFI/ Ipad/ Laptop/
PC/ Cloud control.
It’s very easy and convenient to control the screen.
Q3: What is your best service?
A: One to one sales engineer to customer responsibility system. We will do:
1. Know your project and provide the best solution for it;
2. Track your order and let you know each step and detail of it;
3. Teach you how to install and use the screen;
4. Care the subsequent use of your screen and ensure your after - sales service be well,
5…6…etc.
Q4. How about your delivery time?
A: Standard module we have stock ,Can send out after 7 hours aging testing .The specific delivery time depends on the items and
the quantity of your order.
Q5:How about your Warranty Term?
A: 1-3-year warranty. Structure design, installation problem, program the screen, how to use the screen…don’t worry, we have
professional after-sale team to solve your any questions after you placed an order. And your exclusive sales engineer will also
help you get over any problems.
