Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CB,CE,ROHS,FCC,SASO |
| Model Number: | SMD-P8 |
| Minimum Order Quantity: | 13 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case，flight case，it is up to you. |
| Delivery Time: | 5-16 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3600 sqm month |
| Application:: | OUTDOOR | Color:: | FULL COLOR |
|---|---|---|---|
| Panel Size:: | 1024mm*1024mm | Pixel Pitch:: | 8 Mm |
| LED Chip:: | Epistar | Certificate:: | FCC,ROHS,CE,IP65 |
| Brightness: | 6000 Cd/m2 | Function:: | Graphics / Video Display |
| Pixel Configuration:: | SMD 3IN1 | ||
| High Light: | P6 outdoor led video display,SMD p10 outdoor led display |
||

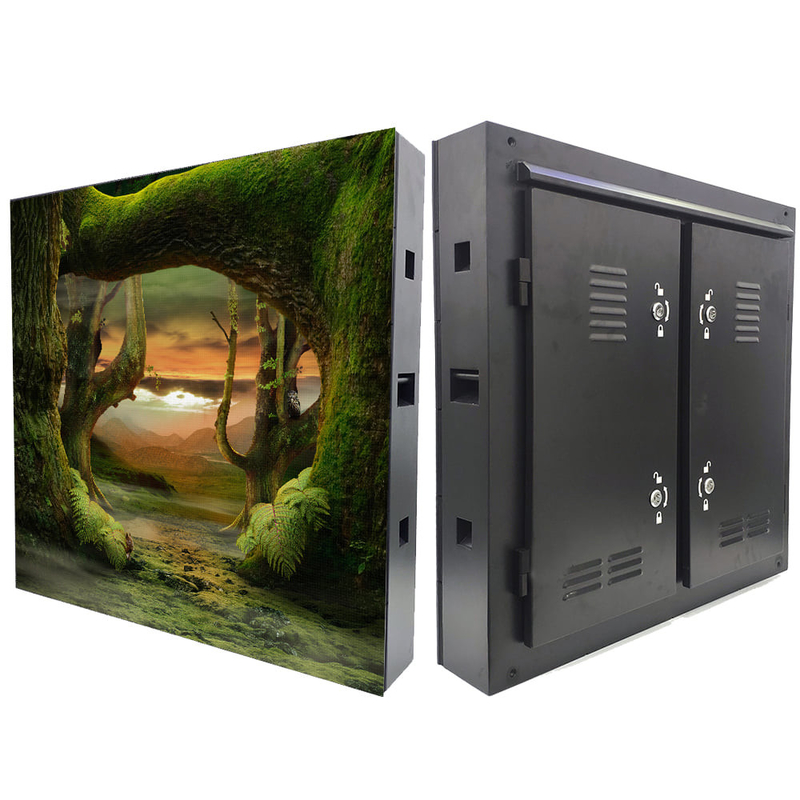

SCX LED electronic scoreboard wireless remote control P8 Outdoor Fixed led display epistar led chip
♦ Technical specification
| outdoor SMD P8 | ||||||||||||||
| Resolution/mm | 8 | |||||||||||||
| Pixel configuration | 1R1G1B | |||||||||||||
| Pixel density/pixels/m² | 15625/m² | |||||||||||||
| Module resolution | 32x16 | |||||||||||||
| Module size/mm | 256x128 | |||||||||||||
| View distance | 7-500m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >8000cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 16bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | (1/4) | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >4200Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ | |||||||||||||
| Maximum power:/㎡ | <950W | |||||||||||||
| Average power:/㎡ | <350W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||

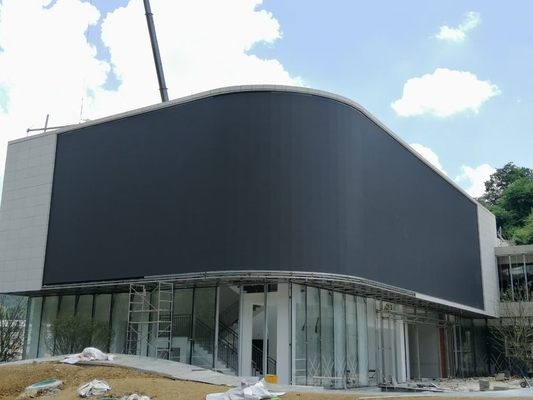

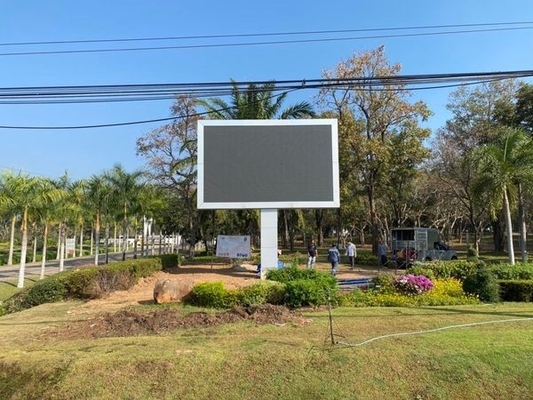

Our case
♦ Production process
1) Incoming Inspection→2)SMD→3)Plug-in
→4) Wave Soldering→5)After Welding→6)Testing
→7) Semi Finished Aging→8)Module Assembly
→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Applications
--- Outdoor and indoor advertising, digital billboards, advertising companies
--- Sports halls, fields, playgrounds,school church
--- Airports, bus stations and railway passenger terminals.
--- Facades of shopping malls, department stores, banks and car dealerships.
--- Architecture and social projects, information systems in cities.
--- Show-business, concerts, festivals, motor shows and other public events.
Product Application
Outdoor led screen can work under the sun for high brightness and large viewing angle with a certain function of a windbreak, rainproof and waterproof.
Which is widely used as outdoor advertising and information media at station, square and shopping mall.

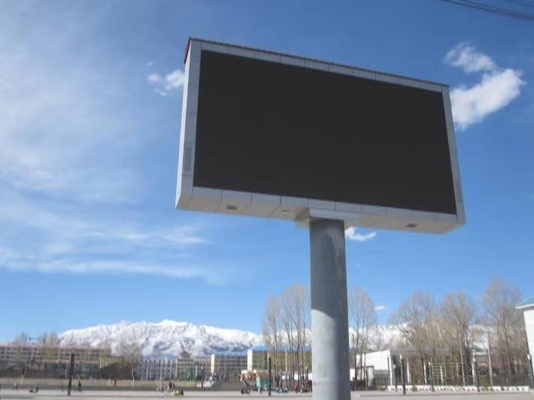

Outdoor led screen can be divided into a pillared screen, wall-mounted screen, and floor-standing screen, etc.
Our Service
Q1: What's the warranty for your LED Display Screen?A1: We have a 3-year warranty for our led display screen and 100,000 hours life span of the led lamps. |
Q2: What about your pre-sale service and post-sale service?A2: For pre-sale service: We have a professional sales team and 13 years technical team who are willing to answer your question 24/7. We can offer a whole complete solution for your project! |
Q3: What's your payment term? How long it takes to delivery?A3: We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery. |
Q4: What's the control system?A4: For synchronization control: We use Nova, Linsn Or Colorlight control system. If you have another option, please let us know. |
Q5: How can you ensure the led display product quality?A5: Our led display screen quality is our core competence, for 8 years, what we rely on. |
