Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P6 |
| Minimum Order Quantity: | 13 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case. |
| Delivery Time: | 7-13 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 4300 sqm per month |
| Application:: | Outdoor Fixed, Outdoor Video Wall | Color: | Full Color |
|---|---|---|---|
| Panel Size:: | 960*960mm | Brightness:: | 5500cd/m2 |
| Scan Mode:: | 1/8 Scan | Module Size:: | 192*192mm |
| Protection Grade:: | IP65 | Cabinet Material:: | Waterproof Steel Cabinet |
| Refresh Rate:: | 1920Hz | LED Type:: | SMD3535 |
| High Light: | 5500cd/Sqm Outdoor Fixed Sign Board,P6 Outdoor Fixed Sign Board,330W/M2 Full Color Led Screen |
||
SCX LED High quality wall mount install outdoor led screen advertising display p6 outdoor led display
3-year warranty P6 Outdoor Fixed electric sign board impressive full color led screen type outdoor display
LED display, also called led screen, led video wall, or led sign, with its unique advantages, has gradually replaced the traditional billboards, light boxes, etc. LED display advertising has become a new force in the media industry.
Traditional advertising can only show pictures, But LED display/led video wall/led screen can perfect combine text, pictures, video, and sound with high resolution, high brightness and full colour! LED display Advertising screen can easily attract the attention of pedestrians, and also are easy to remember, which can generate greater advertising effectiveness.
Led display screen now are widely applied in media advertising, transportation, Security, Real estate and Stage show background.
Module Parameter
| Pixel pitch | 6mm |
| Pixel configuration | 1R1G1B |
| LED type | 3-in-1 SMD 3535 |
| Module size | 192x192mm |
| LED lamp | KingLight or Nationstar |
| Module resolution | 32x32dots |
Cabinet Parameter
| Cabinet size | 960x960mm |
| Cabinet material | Ironed steel cabinet |
| Cabinet weight | 32.5kg |
| Ingress protection | Front/Rear IP65/IP54 |
Whole Screen Parameter
| Pixel density | 27778 dots/m² |
| Brightness | ≥5500 cd/m² |
| Viewing angle | H≥120° V≥60° |
| Min.viewing distance | 6m |
| Max.power consumption | 900W/m² |
| Avg.power consumption | 330W/m² |
| Working voltage | 110~220VAC±15% |
| Interface | HUB75 |
| Colors | 16.7millon colors |
| Gray level | 65536 |
| Refresh rate | ≥1920Hz |
| MTBF | ≥100,000 hours |
| Lifespan | ≥100,000 hours |
| Protective function | Over-heat/Over-load /Power-down /Power-leakage /Lightning-protection etc. |
| Operating temperature | -10℃ ~ +60℃ |
| Storage temperature | -20℃ ~ +60℃ |
Control System Parameter
| Video signal (with video processor) | AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
| Color temperature | Adjustable by software |
| Brightness level | 256 levels, automatic adjustment by software |
| Control way | Computer, video-synchronous, real-time, off-line, wireless, internet etc. |

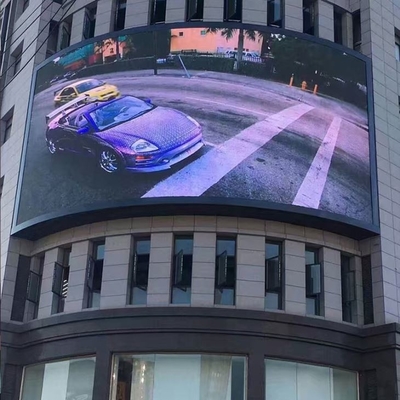

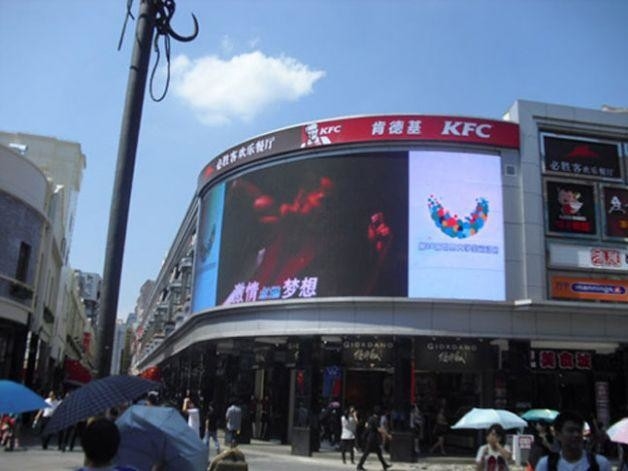

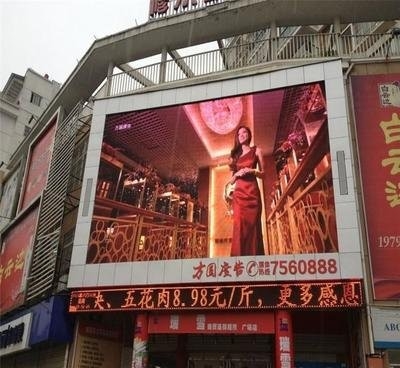

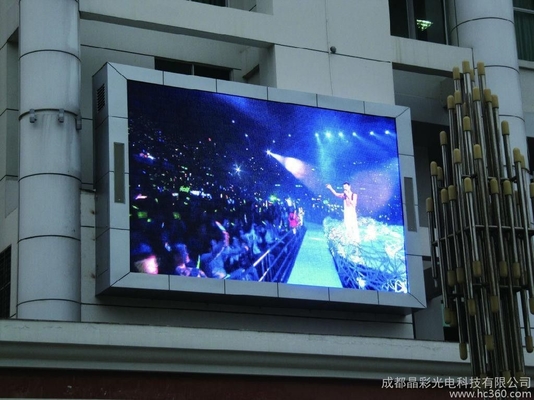

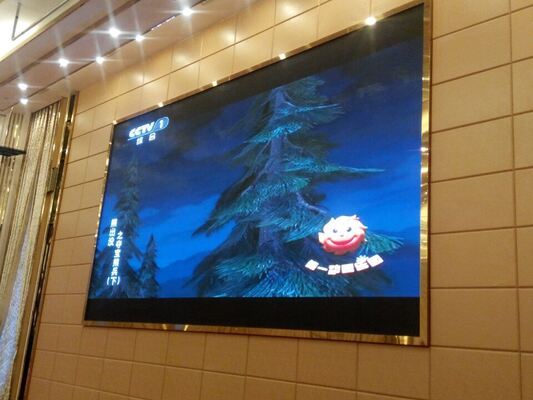

Our Case
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
FAQ
1. who are we?
We are based in guangdong, China, start from 2018,sell to North America(40.00%),Northern Europe(15.00%),Western Europe(15.00%),Central America(10.00%),Domestic Market(5.00%),Eastern Asia(5.00%),Oceania(5.00%),Southern Europe(4.00%),Mid East(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Led display module,led display screen,outdoor led display,indoor led display,rental led display
4. why should you buy from us not from other suppliers?
We're specialized in LED display design and manufacture. We pay attention to technology innovation and technique improvement, focus on requirements from market and customers, we're keeping "Quality First, Service First" as our principle.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Portuguese,Arabic
