Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P10
Payment & Shipping Terms:
Minimum Order Quantity: 16 sqm
Price: negotiation
Packaging Details: wooden case.
Delivery Time: 3-16 working days
Payment Terms: T/T, Western Union
Supply Ability: 5600 sqm per month
Contact Now
Detailed Product Description
Application:: Advertising Color:: Full Color
Panel Size:: 960mm*960mm Pixel Pitch:: 10mm
Module Resolution:: 32dot*16dot LED Chip:: Epistar
Warranty: 3 Years Brightness:: 7000cd/m2
Module Size:: 320mm*160mm Material:: Waterproof Iron
High Light:

SMD3535 Outdoor Fixed Led Screen

,

8000nits Outdoor Fixed Led Screen

,

960x960mm Led Advertising Video Wall

SCX LED Super brightness Lionled P10 moving show text message full color led display outdoor fixed waterproof wall


Module Parameter

Pixel pitch 10mm
Pixel configuration 1R1G1B
LED type 3-in-1 SMD 3535
Module size 320x160mm
LED lamp KingLight or Nationstar
Module resolution 32x16dots


Cabinet Parameter

Cabinet size 960x960mm
Cabinet material Ironed steel cabinet
Cabinet weight 32.5kg
Ingress protection IP65



Applications

--- Outdoor and indoor advertising, digital billboards, advertising companies
--- Facades of shopping malls, department stores, banks and car dealerships.
--- Architecture and social projects, information systems in cities.
--- Show-business, concerts, festivals, motor shows and other public events.


Whole Screen Parameter

Pixel density 10000 dots/m²
Brightness ≥5500 cd/m²
Viewing angle H:120° V:60°
Min.viewing distance 10m
Max.power consumption 900W/m²
Avg.power consumption 330 W/m²
Working voltage 110~220VAC±15%
Interface HUB75
Colors 16.7millon colors
Gray level 65536
Refresh rate ≥1920Hz
MTBF ≥100,000 hours
Lifespan ≥100,000 hours
Protective function Over-heat/Over-load /Power-down /Power-leakage
/Lightning-protection etc.
Operating temperature -10℃ ~ +60℃
Storage temperature -20℃ ~ +60℃


Control System Parameter

Video signal (with video processor) AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP
Color temperature Adjustable by software
Brightness level 256 levels, automatic adjustment by software
Control way Computer, video-synchronous, real-time, off-line, wireless, internet etc.

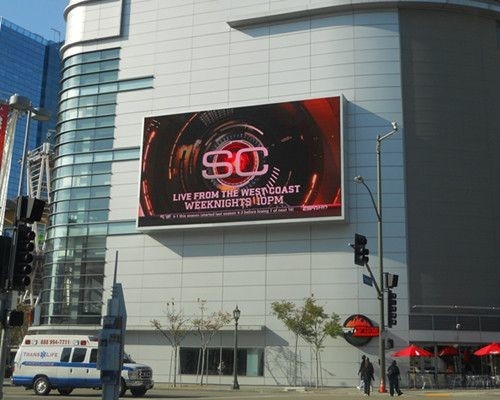

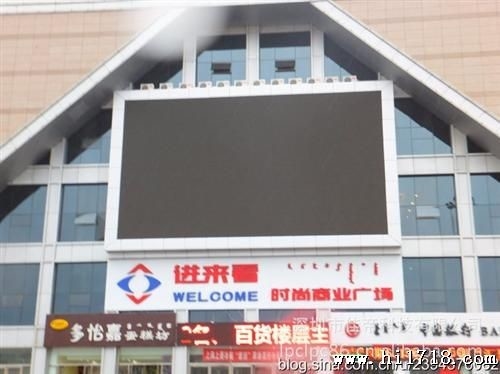

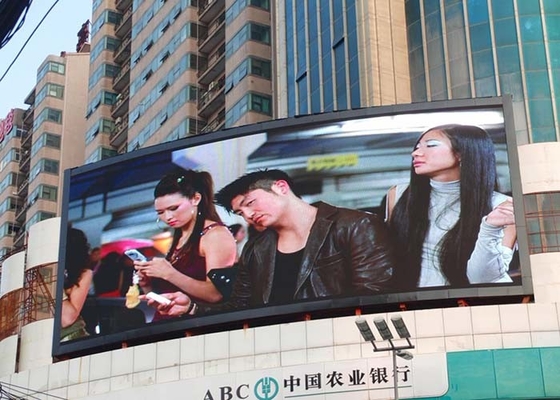

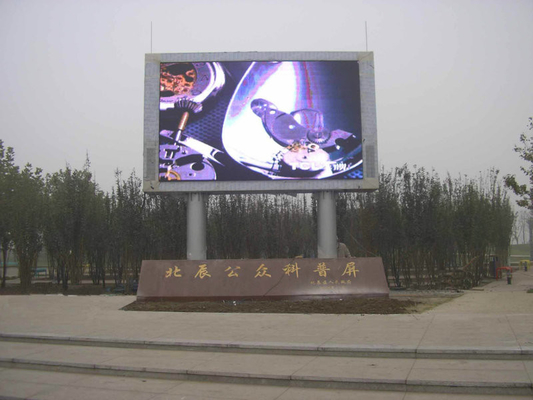

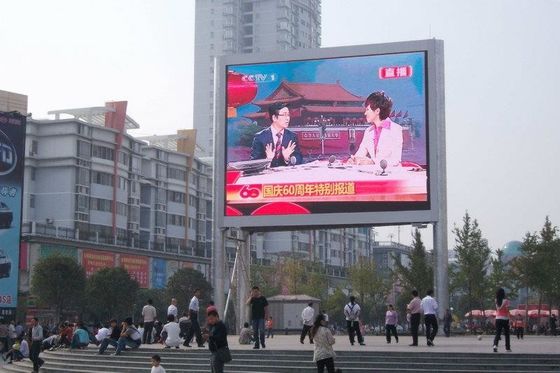

Our case

High Refresh Rate 3840Hz P10 LED Wall Video Processor Outdoor LED Large Screen Display Fixed Installation LED RGB Displa 0High Refresh Rate 3840Hz P10 LED Wall Video Processor Outdoor LED Large Screen Display Fixed Installation LED RGB Displa 1


Company profile


Shenzhen SCXK Electronic Co.,Ltd established in 2009 and has the standard new factory, about 100 employees. We have outstanding R&D department and after-sell service workers, and separately design ability. Our product mainly included led indoor full color display, led outdoor full color display,led indoor full color display, led wireless car usd screen, poster screen,transparent screen etc.It can be used on the shopping mall, bank, bus station, train station, center of downtown, airport,school,factory,bus,taxi and so on. We adapt many methods and very good after-sell service to sell our product all over the world. Whenever and wherever we are, we always take the principle that is: professional makes good quality,good price product market to price product market to provide perfect product and service for our customers.


Certificate
High Refresh Rate 3840Hz P10 LED Wall Video Processor Outdoor LED Large Screen Display Fixed Installation LED RGB Displa 2

Our Services

1)Your inquiry related to our products or price will be replied in 24hrs

2)OEM&ODM,any your customized lightings we can help you to design and put into product

3)Distributoer ship are offered for your unique design and some our current models

4)Protection of your sales area,ideas of design and all your private information

5)Two years warranty for the whole system except human factor and force majeure
6)One year quality warranty, lifetime maintenance, and guarantee the maintenance time in contract.
7)During the warranty period: solve problems for users through the phone, fax or E-Mail. Update the software free of charge.

Product Description

1)Front or rear maintenance option, realizing module, power supply and receiving card front or rear maintenance, saving your maintenance cost.

2)Adopt top high brightness with low power consumption LED lamp,energy saving≥30%, if adopt 28 kinds of main patent technique, entire energy saving ≥50%, environment protection.Pioneer in outdoor mature HD LED Display, all advanced specifications 2 years earlier than others, successful cases around the world.



3)Adopt dual service of black kingkong series among core techniques, free back service path for all kinds of installation surroundings.Broadcast level color scale, color temperature and brightness adjustable intelligentizedly, smooth color, high color ratio, nature pictures.



FAQ

Q1: When is the lead time?

A: Sample:2-5days; small quantity: 15-20days; large order: 20-25days; according to quantity.

Q2: Is it all right to make customers’own brand name?

A: That’s all right to make your own brand name.

Q3: Is it available for samples?

A:Yes, of course. sample is free, and you may pay freight cost. that would be reasonable.

Q4:Is there a middle man draining your profit?

A:Get rid of them,it’s information age. The factory directly provides you with the high-quality product, quick-delivery,best-quality service and affordable prices.

Q5: How much is the min.order?
A:Of course,you can order any quantity you need.
Q6:Could the led display be customize ?
A:Yes , of course , any type and size you want , please tell me , we can disign and discuss together
Q7:How to place an order:
1. Sample approval.
2. Client makes 30% deposit or open LC after receiving our PI.
3. Client approves our pp sample, and get the testing report if any necessary .
4. Mass Production.
5. Arrange shipment.
6. Supplier arranges necessary documents and sends copy of these documents.
7. Client effect balance payment.
8. Supplier sends original documents or telex release the good.
