Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P10 |
| Minimum Order Quantity: | 10sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case. |
| Delivery Time: | 3-16 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5200 sqm per month |
| Tube Chip Color:: | FULL COLOR | Display Function:: | Video |
|---|---|---|---|
| Pixels:: | 10mm | Screen Dimension:: | 160*320mm |
| Product Name:: | P10 Outdoor LED Display Screen LED Full Color High Definition RGB | Brightness:: | 6500cd/sqm |
| LED Chip:: | Epistar | Life Span:: | 100000hours |
| Application:: | Outdoor Advertising Led | ||
| High Light: | SMD3535 Fixed Full Color LED Display,5500nits Fixed Full Color LED Display,1R1G1B Waterproof LED Panel |
||
SCX LED P10 outdoor LED Display Screen LED full Color High definition RGB HD fixed led display
Features
1. Bright color, high contrast, good consistency and high brightness to keep the high resolution of the video under the sunlight.
2. Adopt hight-tech technology in high precision processing box body, Using connection frame structure,
installation and maintenance is very convenient.
3. Ultra-high dynamic contrast and high-quality display Ultra-high-definition perfect picture quality,
giving you an exposed visual enjoyment.
4. High refresh rate,no ghosts and Wide viewing angle make the video display perfect.
5. Minimal Power Consumption HJY LED displays are designed with optimized power supplies to limit power consumption to a minimum.
HJY long-term commitment toenvironmental protection and core focus on green energy-efficient solutions.
Application
Outdoor far viewing distance (10mm) Led Display has the ability to play monitor videos and graphic information in real time. So it can be widely used in large area such as transportation, electricity, water conservancy, security, military conferences, city management, radio and television industries etc.
Module Parameter
| Pixel pitch | 10mm |
| Pixel configuration | 1R1G1B |
| LED type | 3-in-1 SMD 3535 |
| Module size | 320x160mm |
| LED lamp | KingLight or Nationstar |
| Module resolution | 32x16dots |
| Module quantity per cabinet | 18pcs |
Cabinet Parameter
| Cabinet size | 960x960mm |
| Cabinet material | Ironed steel cabinet |
| Cabinet weight | 32.5kg |
| Ingress protection | Front/Rear IP65/IP54 |
Whole Screen Parameter
| Pixel density | 10000 dots/m² |
| Brightness | ≥7000 cd/m² |
| Viewing angle | H≥120° V≥120° |
| Min.viewing distance | 10m |
| Max.power consumption | 800W/m² |
| Avg.power consumption | 280 W/m² |
| Working voltage | 110~220VAC±15% |
| Interface | HUB75 |
| Colors | 16.7millon colors |
| Gray level | 14-16bits |
| Frame frequency | ≥60frames/s |
| Refresh rate | ≥600Hz |
| MTBF | ≥10000 hours |
| Lifespan | ≥50000 hours |
| Protective function | Over-heat/Over-load /Power-down /Power-leakage /Lightning-protection etc. |
| Operating temperature | -10℃ ~ +60℃ |
| Operating humidity | 10-80% no condensation |
| Storage temperature | -20℃ ~ +60℃ |
| Storage humidity | 10-85% no condensation |
Control System Parameter
| Video signal (with video processor) | AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
| Color temperature | Adjustable by software |
| Brightness level | 256 levels, automatic adjustment by software |
| Control way | Computer, video-synchronous, real-time, off-line, wireless, internet etc. |

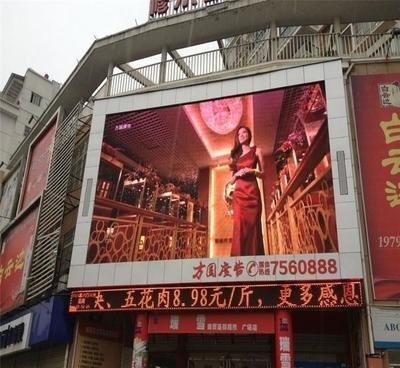

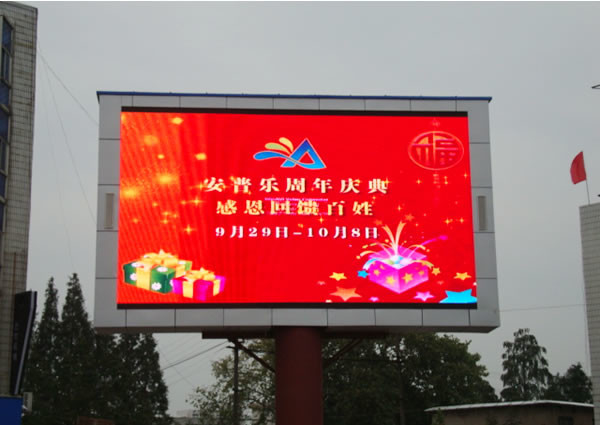

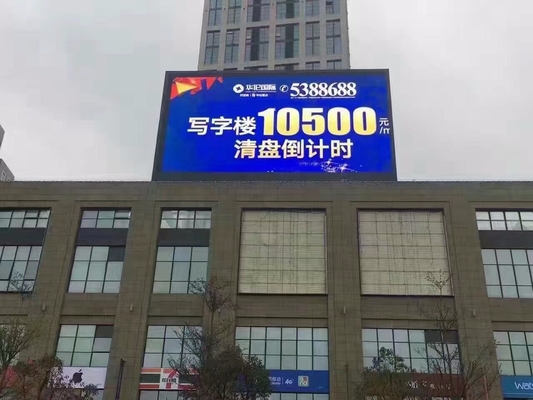

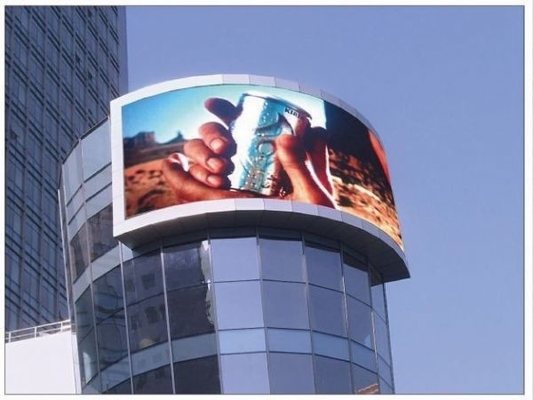

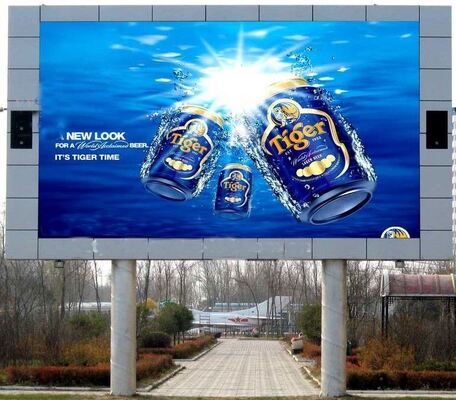

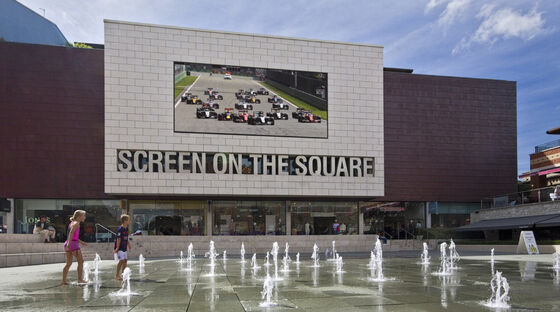

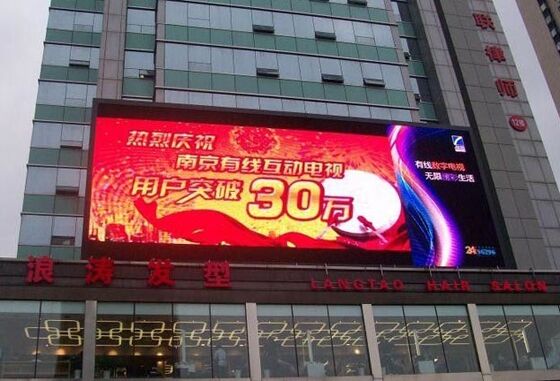

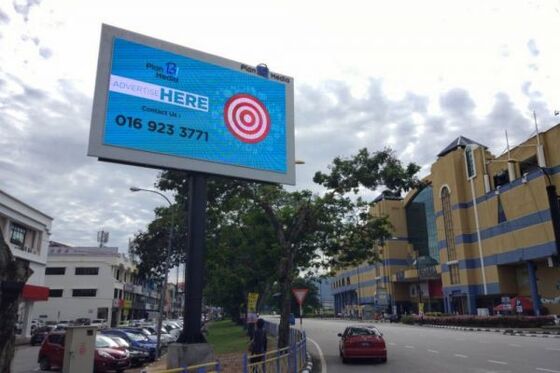

Our case
Many other hot product, welcome to visit our company!
Company profile
our service
Warranty:
We guarantee all our displays, modules, parts for two full years.
During this time, we will replace or amend all our goods for free if there is something wrong with them. We provide lifetime maintenance and charge only for the raw materials.
We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory. Any associated CAD drawing on how to fix up the display and some other expert suggestion will be provided.
