Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CE RoHS FCC CCC TUV UL |
| Model Number: | SMD-P10 |
| Minimum Order Quantity: | 13 SQM |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case, flight case |
| Delivery Time: | 3-16 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5300 sqm month |
| Application:: | Outdoor | Panel Size:: | 320*160MM |
|---|---|---|---|
| Use:: | Advertising Publish, Shopping Mall | Specification:: | Video Wall |
| Brightness:: | 5000-5500 Nits | Refresh Rate:: | 1920-3840Hz/s HD |
| Life Span:: | 110000 Hrs | Driving Method:: | 1/2 Scaning |
| Density:: | 10000dots/sqm | ||
| High Light: | SMD3535 Led Advertising Video Wall,7000nits Led Advertising Video Wall,280W Outdoor Led Advertising Billboard |
||
P10 Outdoor Rental Led Display p10 Outdoor Fixed Led Display p10 Outdoor Led Panel Digital Screen Module p10 rgb Outdoor
Advantages:
1. Energy-saving, saving money.
2. Low heat, low working temperature.
3. Long lifespan.
4. Low attenuation.
5. High protection degree, IP65. Protect it from dust and water.
6. Color Temperature is constant and the colorless block is used for a long time.
| outdoor SMD P10 | ||||||||||||||
| Lamp size | 3535 | |||||||||||||
| Resolution/mm | 10 | |||||||||||||
| Pixel configuration | RGB 3 in 1 | |||||||||||||
| Pixel density/pixels/m² | 10000/m² | |||||||||||||
| Module resolution | 32x16 | |||||||||||||
| Module size/mm | 320x160 | |||||||||||||
| View distance | ≥10m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >7000cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 120(degrees) | |||||||||||||
| Signal Process bit | 10 or 14 bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | 1/16 | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >1200Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
| Maximum power:/㎡ | <1100W | |||||||||||||
| Average power:/㎡ | <280W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||

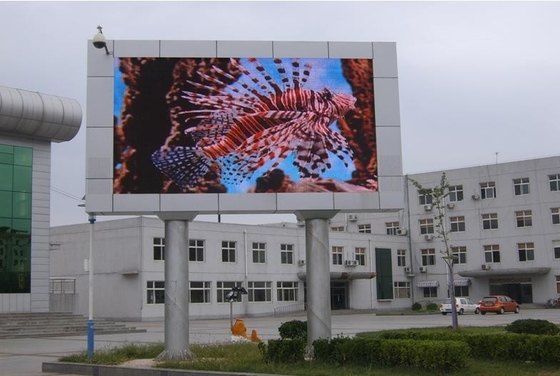

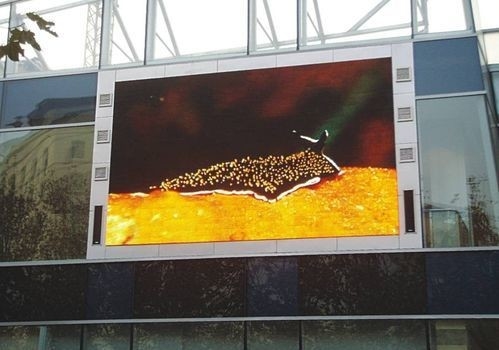

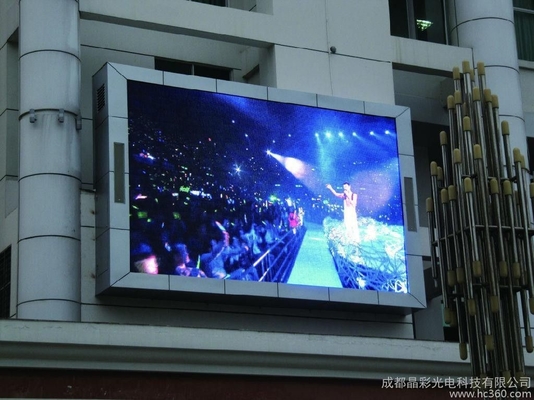

Our case
FAQ
Q1:Can i oem/odm?
A: OEM/ODM is welcome,we have R&D team,UV printer /laser machine to meet you need.
⭐Q2:How about the quality of your products?
A:CE ROHS FCC MSDS approval,for more ;ocal certificates,please contact us for confirmation.
⭐Q3:What is the quality control method in your factory?
A: Quality first. QC department has professional quality assurance, experts always attach great importance to quality control.Each
product will be tested more than 3 times.
⭐Q4:When will the goods ship?
A: We have enough stock to ship out within 48hours,lead,time by express is 3-8days,by EMS is 15-35 days.Normally we ship by
Alibaba logistics,it is expensive,but safe,reliable,efficient and fast,if you need to send by other express,please contact us.
⭐Q5:How to place an order?
A: “Start Order “
“choose the quantity,colors”
“Filling your address”(remember to put your Phone Number&Post Code )”
Or you could "Send inquiry"to us,we will fast reply within 2 hours of work time.
⭐Q6:I'd like to visit your latest products and quotations, how can I get them?
A:Welcome to contact us directly by online messenger, Trademanager or Whatsapp for latest catalogues. Send us inquiry or direct
email is welcome too.
⭐Q7:Can you accept small orders?
A:Yes, small orders are accepted. Just let us know how many pieces you need.
⭐Q8:Can you supply me samples?
A:Yes, we can. Welcome to contact us for further information.
⭐Q9:If your product does not arrive within your delivery time, please let us know.
A: This has never happened in our company, because we have professional management personnel to comprehensively manage and control
every link of production, and we also train every employee.
⭐Q10:What will your company do with the defective product?
A: All of our productscome with a one-year warranty. If there are any problems during this period, we will take full
responsibility. You can return itany time you like.
We care about our valued cutomers, if you have any question, please feel free to contact us by Trademanger, Skype, QQ, MSN, Mob,or E-mail.
