Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CB/CE/ROHS/FCC/ISO/UL |
| Model Number: | SMD P10 |
| Minimum Order Quantity: | 16 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 5-12 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 4600 sqm month |
| Cabinet Size: | 960x960mm | Product Name: | Outdoor High Brightness Waterproof P10 Screen |
|---|---|---|---|
| Led Lamp: | Nationstar | Resolution: | 3840hz |
| Control Card: | Colorlight，linsn | Warranty: | 3 Year |
| High Light: | Full Color P10 Outdoor LED Display,waterproof p10 outdoor led display,Nationstar Lamp Stage Rental LED Display |
||
Advantage and feature:
1.color spots or picture shade will be removed through the adjustment of brightness and color by each independent pixel
2, adopted with self developed steel structure and special kits will be kept in good flatness and smoothness
3, strict water proof testing by Ip65
4, according to environmental changes the brightness can be adjusted automatically for energy saving
5, special PVC kits are adopted to protect from corrosion according to coastal weather
6, according to environmental changes the brightness can be adjusted automatically for energy saving
7, auto power on/off, work unattended
ronous control and asynchronous control.The asynchronous control can make use of USB,RJ45,WIFI and 4G to transmitted.
♦ Product specification
| outdoor SMD P10 | ||||||||||||||
| Resolution/mm | 10 | |||||||||||||
| Pixel configuration | 1R1G1B | |||||||||||||
| Pixel density/pixels/m² | 10000/m² | |||||||||||||
| Module resolution | 32*16 | |||||||||||||
| Module size/mm | 320*160 | |||||||||||||
| View distance | 9-400m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >8000cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 16bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | (1/4) | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >3500Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ | |||||||||||||
| Maximum power:/㎡ | <900W | |||||||||||||
| Average power:/㎡ | <350W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||

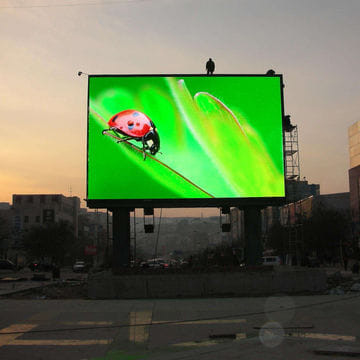

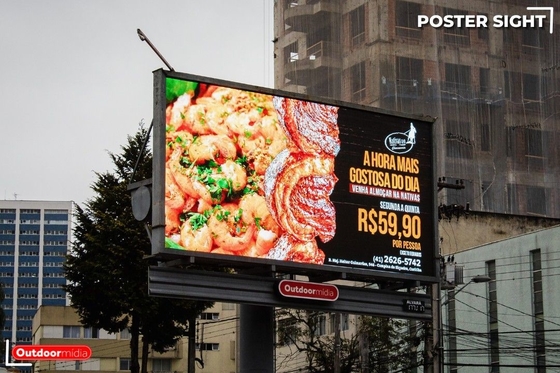

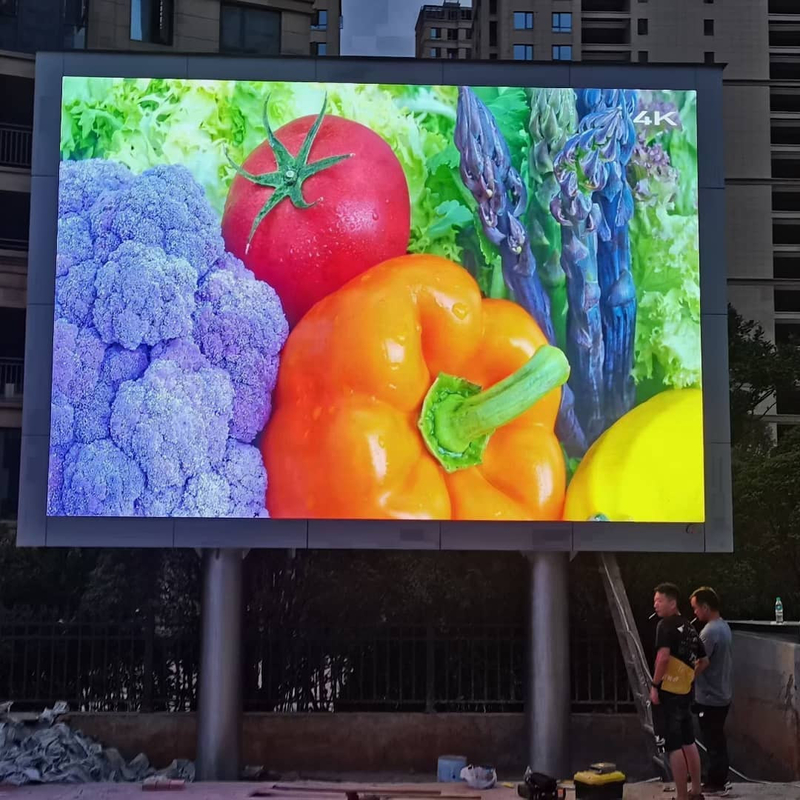

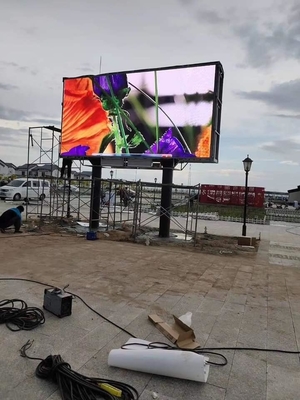

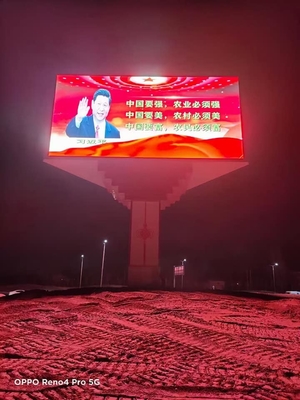

Our case
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Description:
• With sensitive control system, it can adjust screen brightness automatically according to the lighting change of indoor and outdoor, saving energy to reduce your operating costs greatly.
• High refresh rate and high gray make the picture more realistic, which meets the demand of high visual quality of commercial usage.
• The advertising contents can be changed at any time, for different customers and various advertisements.
• You can know the display operation anytime, anywhere.
• It can turn on and turn off the screen by software timing or manually at any time, achieving unattended function.
Mainly applications:
1. Outdoor advertising: Widely use for shopping mall, big square, down town area, traffic road side etc, the places where can attract people’s eyes most.
2. Popular LED signs: Widely use for business, church , school, government, banks, hospitals, real estate, community and more.
3. Others: Stadium, mansion video wall, banks, schools, bus station, airport, gym, monitoring centers, hospitals etc...
