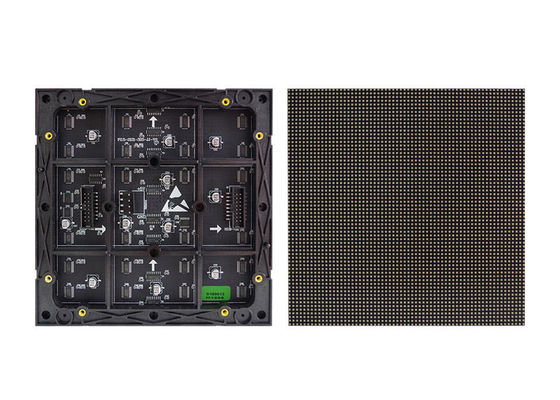

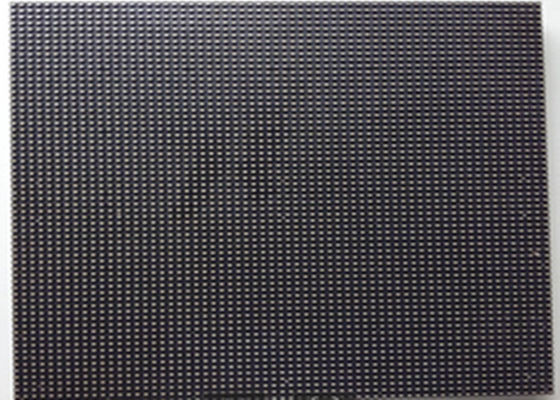

Professional HD 1R1G1B P2.5mm LED Display Module Full Color 160mm×160mm full color led display module

Professional HD 1R1G1B P2.5mm LED Display Module Full Color 160mm×160mm full color led display module

  • Professional HD 1R1G1B P2.5mm LED Display Module Full Color 160mm×160mm full color led display module
  • Professional HD 1R1G1B P2.5mm LED Display Module Full Color 160mm×160mm full color led display module
Professional HD 1R1G1B P2.5mm LED Display Module Full Color 160mm×160mm full color led display module
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P2.5
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: T/T or western Union
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Product Name: Led Display Module Module Size(W * H): 160mm*160mm
Standard: CE/ROHS/FCC/ISO2001 Tube Chip Color: Full Color
Pixel Pitch: 2.5mm Module Qty: 1pcs
Type: Free Standing Resolution(W*H): 64dots*32dots
High Light:

led screen module

,

led sign module

Professional HD 1R1G1B P2.5mm LED Display Module Full Color 160mm×160mm full color led display module

Specifications

We are the professional manufacturer of outdoor and indoor led display. With more than 8 years experience, our led display enjoy good reputation . The  led display  module is very high definition and brightness,its’ very attractive and hot sell.

1, The SMD and DIP Technology ,many choices.
2, full color and double color ,single color to be choose

  1. High brightness and high definition.
  2. 2 years warranty , long life use
  3. Many pixels to be choose
  4. DC5V


The detailed parameter as follows.


1,  Item Name

  technology parameter

2,  pixel tube:

   pixel pitch:2.5mm;  primary colors: pure red+pure green+pure blue ,
   color composing: 3 in 1
   Density:160000dots/sq m;  SMD2121

3 , unit box

  module size:160mm×160mm;  Module resolution:64x64
  cabinet thickness:(cold-roll steel sheet)150mm+(maintain)600mm;

4, whole screen:

the optimum viewing angel :horizontal 110°, vertical 50°
viewing distance:>15m;working temperature:-20°C~+45°C(-30°C ~+50°C  optional)

relative humidity:≤95%RH;   Drive IC ET6024


5, operating voltage

AC220V±10% or 110V±10% ,average consumption:500 W/sq m
  max consumption:≤650 W/ sq m

6, main parameter

1) driving mode: 1/16 scan
2) refreshing rate:≥400Hz/s
3) frame frequency:≥60Hz/s
4) gray scale/color:≥16.7Mcolors(Synchronized)
5) manage gray:≥72bit
6) brightness:≥7000cd/sq m
7) color temperature condition:3500K~9500K,be adjustable
8) adjusting style of brightness: hand movement/auto
9) video signal: RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION etc. managing ability of signal:≥12bit.against Y revised curve: owns 3pcs above Y curve that can adjustable.
10) average trouble-free time:≥5000hours
11) evenness: between random adjacent pixel ≤0.5mm,module splicing space<1mm
12) switch power loading:5V/40A
13) display mode of computer:1024×768


Professional HD 1R1G1B P2.5mm LED Display Module Full Color 160mm×160mm full color led display module 0Professional HD 1R1G1B P2.5mm LED Display Module Full Color 160mm×160mm full color led display module 1Professional HD 1R1G1B P2.5mm LED Display Module Full Color 160mm×160mm full color led display module 2

Methods for Quality Assurance
a. Aging
1. 100% fully test  Condition: 72 hours with 256 gray level

b. Vibration Testing
Condition: 3-5 min up and down in 5mm range


Company information
About us.jpg
Professional HD 1R1G1B P2.5mm LED Display Module Full Color 160mm×160mm full color led display module 4Professional HD 1R1G1B P2.5mm LED Display Module Full Color 160mm×160mm full color led display module 5

Professional HD 1R1G1B P2.5mm LED Display Module Full Color 160mm×160mm full color led display module 6





Order Procedure
Negotiation---First solution recommended---Finalize all the details---30%deposit in advance or full deposit---
Start production---Pay the balance---shipment by DHL--provide tracking number---feedback.
Parking and Shipping



Professional HD 1R1G1B P2.5mm LED Display Module Full Color 160mm×160mm full color led display module 7

Professional HD 1R1G1B P2.5mm LED Display Module Full Color 160mm×160mm full color led display module 8
A. Flight case Packing
1)150KG Per flight case
2)3 cabinets in one case
3)Flight case size: 1010mm*560mm*1175mm=39inch*22inch*46inch
B. Plywood case
1)180KG per plywood case
2)3 cabinets in one case
3)Plywood case size: 1120mm*585mm*930mm= 44inch*23inch*36inch
C.customized packing is acceptable
D. 20"FT container loading of 100sq.m


1) T/T, 30% deposit, 70% before shippment.
2) 100% Western Union in advance.


Professional HD 1R1G1B P2.5mm LED Display Module Full Color 160mm×160mm full color led display module 10Professional HD 1R1G1B P2.5mm LED Display Module Full Color 160mm×160mm full color led display module 11
