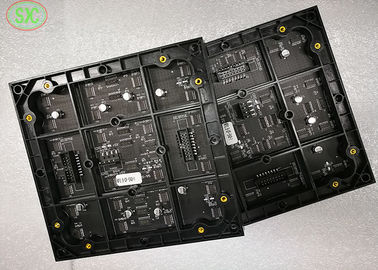

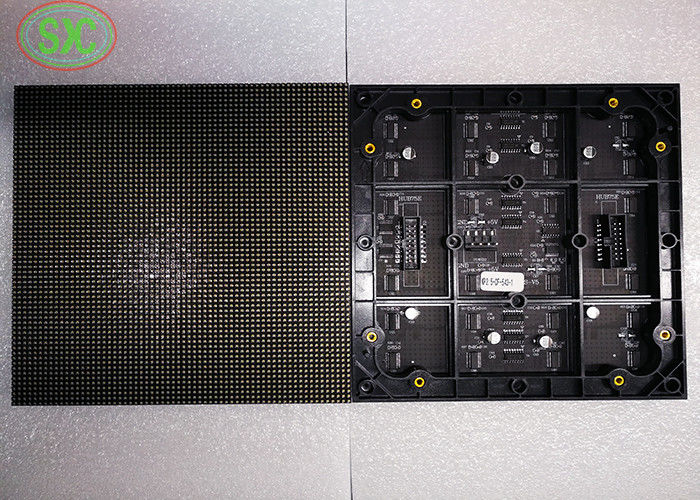

LED Video Display High Definition Photo Indoor P2.5mm LED Display Module 160mm*160mm,320mm*160mm

LED Video Display High Definition Photo Indoor P2.5mm LED Display Module 160mm*160mm,320mm*160mm

    • LED Video Display High Definition Photo Indoor P2.5mm LED Display Module 160mm*160mm,320mm*160mm
    • LED Video Display High Definition Photo Indoor P2.5mm LED Display Module 160mm*160mm,320mm*160mm
  • LED Video Display High Definition Photo Indoor P2.5mm LED Display Module 160mm*160mm,320mm*160mm

    Product Details:

    Place of Origin: China
    Brand Name: SCXK-p2.5
    Certification: CE/ROHS/FCC/ISO/UL
    Model Number: p2.5

    Payment & Shipping Terms:

    Minimum Order Quantity: negotiation
    Price: negotiation
    Packaging Details: flight case, wooden case, carton, it is up to you.
    Delivery Time: 7-10 working days after receive your payment
    Payment Terms: T/T, Western Union
    Supply Ability: 5000sqm per month
    Contact Now
    Detailed Product Description
    Product Name: P2.5 Small Pixel Pitch Led Screen Module Size(W * H): 160mm*160mm
    Pixel Pitch: 2.5mm Standard: CE/ROHS/FCC/ISO2001
    Resolution: 64*64 Chip Color: 1R1G1B

    LED Video Display High Definition Photo Indoor P2.5mm LED Display Module 160mm*160mm,320mm*160mm



    SCXK has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.

    Pre-sale service:

    1. Reply enquiries in 24 hours.

    2. Market research and forecast for customer.

    3. Provide unique and professional solutions based on customer's requirement.

    4. Data sheet and samples offer.

    5. Other services, such as special packing design, factory visiting and so on.



    In-sale service:

    1. Tracking report in producing.

    2. Quality test report for every order.

    3. Photos and videos as per customer's requirement.

    4. Free spare parts.



    After-sale service:

    1. Lifetime free maintenance and upgrade.

    2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.

    3. Customer satisfaction tracking report.

    4. Free technician training.

    5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.

    6. Special service for big project, such as stadium, exhibitions, squares and so on.



    Established in 2005,Shenzhen Shichuangxike Electronics Co.,Ltd has been focusing on the international market to realize the global strategic layout. Relying on the strong technical strength, the advanced production management system, the complete operating programs and our international business team, we successfully set up a base gathering the abilities of R & D, production and sales in Shenzhen.



    As the most professional provider of outdoor and indoor led displays, SCXK Electronics has the widest business coverage, the most complete product lines, the greatest comprehensive strength in the industry.



    With the perfect global marketing network, our products are sold to The Middle East, South America, North America, Europe, Southeast Asia, Australia, Africa and other regions.







    The epistar Led chip. with SMD and DIP Technology .
    we adopt the epistar led chip from Taiwan,DIP and SMD led display module will be available



    The wire or wireless controll system are available .( 3g and wifi controll will be welcome) the steel consturction is very stable for led display,and you can purchase from your local market .



    The detailed parameter as follows


    1, Item Name P2.5 SMD indoor LED Display Module
    2, pixel tube: pixel pitch:2.5mm; primary colors: pure red+pure green+pure blue ,
    color composing: 1R1G1B
    Density:160000dots/sq m; smd2121
    3 , unit box module size:160mm×160mm; Module resolution:64X64
    cabinet thickness:(cold-roll steel sheet)150mm+(maintain)600mm;
    4, whole screen: the optimum viewing angel :horizontal 110°, vertical 50°
    viewing distance:>15m;working temperature:-20°C~+45°C(-30°C ~+50°C optional) relative humidity:≤95%RH; Drive IC ET6024

    5, operating voltage AC220V±10% or 110V±10% ,average consumption:500 W/sq m
    max consumption:≤650 W/ sq m
    6, main parameter 1) driving mode: 1/16 scanning
    2) refreshing rate:≥400Hz/s
    3) frame frequency:≥60Hz/s
    4) gray scale/color:≥16.7Mcolors(Synchronized)
    5) manage gray:≥72bit
    6) brightness:≥1500cd/sq m
    7) color temperature condition:3500K~9500K,be adjustable
    8) adjusting style of brightness: hand movement/auto
    9) video signal: RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION etc. managing ability of signal:≥12bit.against Y revised curve: owns 3pcs above Y curve that can adjustable.
    10) average trouble-free time:≥5000hours
    11) evenness: between random adjacent pixel ≤0.5mm,module splicing space<1mm
    12) switch power loading:5V/40A
    13) display mode of computer:1024×768




    competitive Advantage:

    1. 2 years’ warranty with free repair service
    2. 24/7 Hours online Remote Support
    3. Solution and PCB design
    4. Free factory training
    5. On site installation instruction and regular inspection
    6, Small order accepted.



    Methods for Quality Assurance
    a. Aging
    1. 100% fully test

    2. Condition: 72 hours with 256 gray level



    b. Vibration Testing
    Condition: 3-5 min up and down in 5mm range



    Order Procedure


    Negotiation---First solution recommended---Finalize all the details---30%deposit in advance or full deposit---
    Start production---Pay the balance---shipment by DHL--provide tracking number---feedback.

    A. Flight case Packing
    1)150KG Per flight case
    2)3 cabinets in one case
    3)Flight case size: 1010mm*560mm*1175mm=39inch*22inch*46inch

    B. Plywood case
    1)180KG per plywood case
    2)3 cabinets in one case
    3)Plywood case size: 1120mm*585mm*930mm= 44inch*23inch*36inch

    C.customized packing is acceptable
    D. 20"FT container loading of 100sq.m
    1) T/T, 30% deposit, 70% before shippment.
    2) 100% Western Union in advance.
