Small Indoor P6 Led Display Screen Xxx Sexy Video Customized Full Color LED Video Board HD P6 SMD Electronic

Small Indoor P6 Led Display Screen Xxx Sexy Video Customized Full Color LED Video Board HD P6 SMD Electronic

    • Small Indoor P6 Led Display Screen Xxx Sexy Video Customized Full Color LED Video Board HD P6 SMD Electronic
    • Small Indoor P6 Led Display Screen Xxx Sexy Video Customized Full Color LED Video Board HD P6 SMD Electronic
  • Small Indoor P6 Led Display Screen Xxx Sexy Video Customized Full Color LED Video Board HD P6 SMD Electronic

    Product Details:

    Place of Origin: ShenZhen in China
    Brand Name: SCXK
    Certification: CE/ROHS/FCC/ISO/UL
    Model Number: P10

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 sqm
    Price: negotiation
    Packaging Details: flight case, wooden case, carton, it is up to you.
    Delivery Time: 7-10 working days after receive your payment
    Payment Terms: Western Union, MoneyGram, D/P, T/T, L/C
    Supply Ability: 5000sqm per month
    Contact Now
    Detailed Product Description
    Pixels: 6mm Tube Chip Color: Full Color
    Display Function: Video Cabinet: Steel Or Aluminum For Options
    Voltage: DC5V Refresh Rate: >=180HZ
    Maximum Power: 600m2 The Optimum: 600w/m2
    Module Size: 192mmx192mm Brightness: 6000cd/m2
    Certificates: CE,RoHs,FCC,ISO Dot Density: 27778
    Driving Mode: 1/8 Scan IC: MBI 5024 IC
    Chip Brand: Epistar Led



    Customized Full Color LED Video Board HD P6 SMD Electronic Outdoor Advertising LED Display Screen

    Tech Specification
    LED Specification
    1 LED Chip Brand Epistar
    2 Wave Length (nm) R: 625nm;
    G: 525nm;
    B: 470nm
    3 Pixel Configuration 1R1G1B SMD 3 in 1
    Module & Cabinet Specification
    4 Physics Distance Between Pixels 6mm
    5 Physics Pixel Density 27,777 Pixel/m²
    6 Module Dimensions (W x H) 192mmx192mm
    7 Physics Pixel / Module 32x 32=1024
    8 Cabinet Dimensions ( W x H xT) 960mmx960mmx150mm(Customized)
    9 Physics Pixel / Cabinet 160x 160=25600
    10 Cabinet Weight 42kg
    11 Cabinet Material Steel Cabinet / Aluminum Cabinet
    12 Cabinet Frame Standard Frame
    Lifting Frame (specially for rental use)
    Screen Specification
    13 Brightness >6000cd/m²
    14 Viewing Distance (min, max) >6m
    15 Power Consumption / Screen MAX : 1000w/m² ;
    AVE: 300w/m² ;
    16 Drive Mode 1/4 scan
    17 Refresh Rate 300-3000 HZ adjustable
    18 Frame Rate 60HZ
    19 Display Flatness 0.5mm
    20 Maintenance Back/Front maintenance
    21 Led Life Span 100, 000 hours
    22 Supply Voltage AC220V/50HZ, ± 10%;
    AC110V/60HZ, ± 10%
    23 Operating Temperature -30º C~+50º C
    24 Operating Humidity 10%-90%
    25 Storage Temperature -40º C~+60º C
    26 Viewing Angle Horizontal: 120° ; Vertical: 120°
    27 Grey Scale Red, green, blue each 16k
    28 Display Colors 4096 Billion
    29 IP Rating IP65
    30 Aging Time in Factory More than 72 hours constantly
    Control
    31 The Software Nova/Linsn
    32 System Supported Win 98 / 2000 / 2003 / XP / WIN7 / WIN10
    33 Control Mode Synchronous / Asynchronous
    34 Display Capability Flash, Video, Graphic, Text
    35 Signal Supported RGB, VGA, DVI, etc.

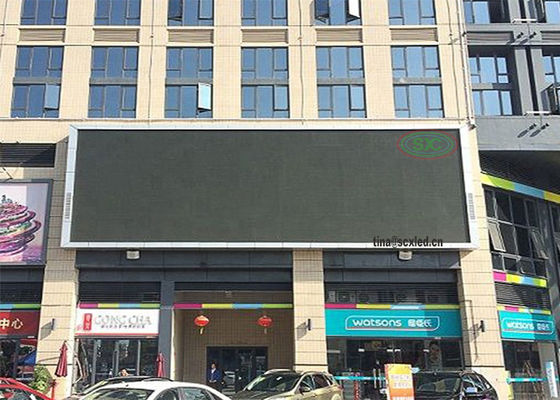

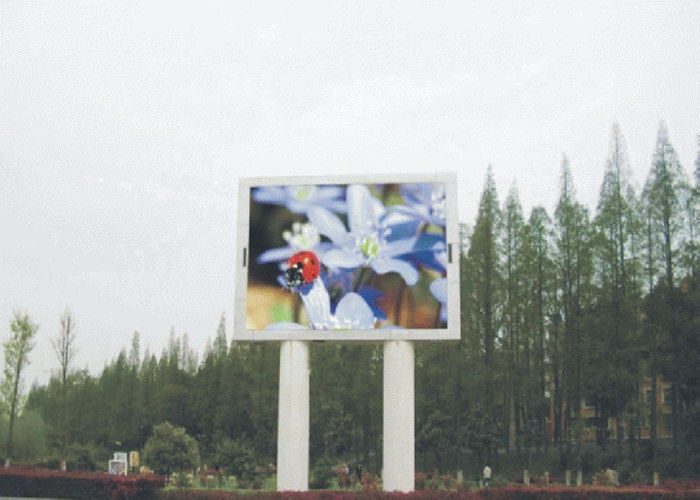

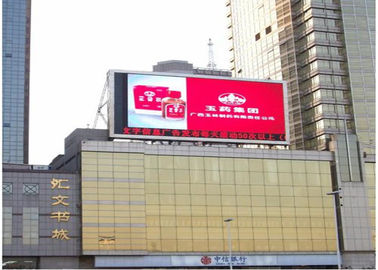

    Project cases:





    BESDLED factory price wholesale waterproof commercial advertising outdoor led display screen/sign /panel P5/P6/P8/P10



    BESDLED factory price wholesale waterproof commercial advertising outdoor led display screen/sign /panel P5/P6/P8/P10

    Installation type:

    BESDLED factory price wholesale waterproof commercial advertising outdoor led display screen/sign /panel P5/P6/P8/P10



    Steel structure to support :

    BESDLED factory price wholesale waterproof commercial advertising outdoor led display screen/sign /panel P5/P6/P8/P10

    Packaging & Shipping

    BESDLED factory price wholesale waterproof commercial advertising outdoor led display screen/sign /panel P5/P6/P8/P10



    1. CE,FCC,RoHS,C-Tick approved

    2. High brightness: >6000nits, high refresh

    3. Superior uniformity, good display effect

    4. 2 years warranty, best after-sales service

    5. Video, flash, animation, graphic, text available;

    6. Installation structure drawing offered FOC;

    7. Factory visiting and inspecting is welcome;

    8. OEM service offered;

    9. Models available:

    Indoor led display-P2.5mm, P3mm, P4mm, P5mm, P6mm, P10mm, etc.

    Outdoor led display-P5mm, P6mm, P8mm, P10mm, P16mm, etc.



    1. Brand new mask design makes the light from LEDs almost non-reflection.

    2. Cabinet design of the module uses high temperature spraying technology to improve the anti-rust function greatly.

    3. Use high quality LEDs with high luminous efficiency and low brightness decay to make the display stable

    4. The flatness of module erection side is controlled within 0.2mm, so as to ensure the flatness of the whole led display

    5. With a full range of anti-static measures, effectively reducing the damage to LED from the static, so as to control the death rate of the LED within five over one million each year

    6. Advanced technology of production ensures the quality and lifetime of LED display

    7. Good uniformity in color solves the problem of mosaic well

    8. With wave-soldering process and green oil protection from Oxygen on PCB, preventing the circuit from moist and Oxygen, so as to increase the lifetime of LED display

    9. Utilization rate of power supply is improved a lot, reducing the failure rate of the power supply

    10. Using good quality silicon gel in the front and waterproof rubber in the rear to improve the waterproof performance of LED display

    11. Applied to all kinds of severe environment outside because of its high reliability, high brightness and high performance on waterproof and dustproof beyond IP65.


    FAQ



    1)Your inquiry related to our products or price will be replied in 24hrs

    2)OEM&ODM,any your customized lightings we can help you to design and put into product

    3)Distributoership are offered for your unique design and some our current models

    4)Protection of your sales area,ideas of design and all your private information

    5)Top Quality+Reasonable Price+Responsible After Service=Successful & Win

    Payment term:

    1.Payment:T/T,30% deposits before production,70% balance to be paid before dleiverying
    2.Shipping freight are quoted under your requests
    3.Shipping port:ShenZhen,Mainland China
    4.MOQ:1pcs

    Q2: What is the payment method?a2: We support a variety of payment methods,the most common is the TT.Q3: What's the pixel pitch for Outdoor LED Display Screen?a3: Outdoor (P6mm / P8mm/P10mm)Q4: Where is it used for?a4: Outdoor & rental use. Widely used for backdrop of staging event, rental business, liveshow, concert, etc.Q5: What's the controlling system?a5: Our standard controlling system for this model is Novastar. Also support other controlling system, like Linsn, etc.Q6: How about the size of project?



    a6: Please offer the size with "width by height" of project. We wil offer the suitable solution for your project size. I will appreciate it if any drawing files about installation offered.

    Q7: How about your service?

    a7:

      1. Lifetime free maintenance and upgrade.
      2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
      3. Customer satisfaction tracking report.
      4. Free technician training.
      5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
      6. Special service for big project, such as stadium, exhibitions, squares
