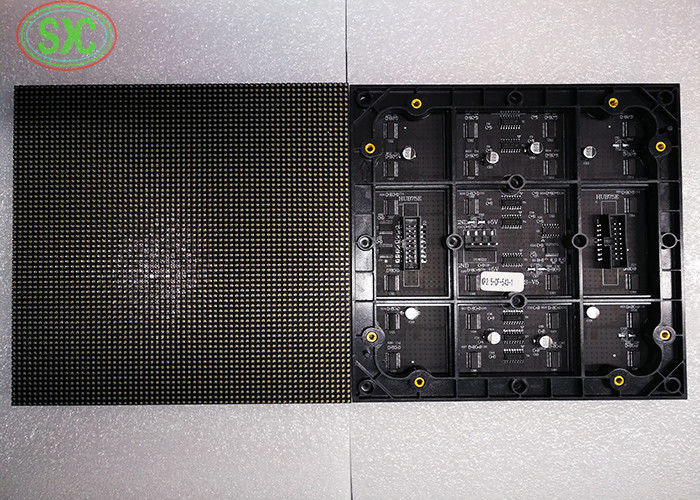

Outdoor P5 Smd Full Color Led Screen Module , high brightness led video wall modules

Outdoor P5 Smd Full Color Led Screen Module , high brightness led video wall modules

    • Outdoor P5 Smd Full Color Led Screen Module , high brightness led video wall modules
    • Outdoor P5 Smd Full Color Led Screen Module , high brightness led video wall modules
  • Outdoor P5 Smd Full Color Led Screen Module , high brightness led video wall modules

    Product Details:

    Place of Origin: MADE IN CHINA
    Brand Name: SCXK
    Certification: CE/ROHS/FCC/ISO/UL
    Model Number: SCXK-P5 outdoor

    Payment & Shipping Terms:

    Minimum Order Quantity: 1sqm
    Price: negotiation
    Packaging Details: flight case, wooden case, carton, it is up to you.
    Delivery Time: 7-10 working days after receive your payment
    Payment Terms: T/T, Western Union
    Supply Ability: 5000sqm per month
    Contact Now
    Detailed Product Description
    Product Name: P5 Outdoor Smd Full Color Module Module Size: 160*160mm
    Tube Chip Color: Full Color Pixel Pitch: 5mm
    Module Qty: 1pcs Resolution: 32mm*32mm
    Certificate: CE FCC SGS ROSH ISO9001

    Outdoor P5 Smd Full Color Led Screen Module , high brightness led video wall modules


    Shenzhen Shichuangxinke Electronic Co.,Ltd is a perfessional led display manufacturer, and an innovative team devoted to improve led display technology the world over.since its establishment in 2005, our team has been innovating new ways to deliver the highest quality products, services and value to our customers, our led screens projects include some of the most advanced technology and forward-thinking design on the market today.


    Scxk relies on more than 100 engineers dedicated to develop a steady stream for new and improve products.utilizes 80000 Square feet for manufacturing, administrative and customer service to support all our led electronic display needs.



    Our main objective is to provide the very best quality products for the most competitive prices.success has been derived from persistence and hard work. coming together is a beginning, keeping together is progress, and working together is success.we achieve this goal by treating our clients, vendors, and employees like partners.



    outdoor p5 SMD full color led screen technology parameter

    1, Item Name technology parameter
    2, pixel tube:

    pixel pitch:5mm; primary colors: pure red+ pure green +pure blue;
    color composing:3 in 1 or 1R1G1B
    Density 40000dots/sq m; SMD3528

    3 , unit box

    module size:160mm×160mm; Module resolution:32*32
    cabinet thickness:(cold-roll steel sheet)150mm+(maintain)600mm;

    4, whole screen:

    the optimum viewing angel :horizontal 110°, vertical 50°
    viewing distance:10-300m;working temperature:-20°C~+45°C(-30°C ~+50°C optional) relative humidity:≤95%RH; Drive IC ET6024


    5, operating voltage

    AC220V±10% or 110V±10% ,average consumption:500 W/sq m
    max consumption:≤650 W/ sq m

    6, main parameter

    1) driving mode: 1/8 scan
    2) refreshing rate:≥400Hz/s
    3) frame frequency:≥60Hz/s
    4) gray scale/color:≥16.7Mcolors(Synchronized)
    5) manage gray:≥72bit
    6) brightness:≥5000cd/sq m
    7) color temperature condition:3500K~9500K,be adjustable
    8) adjusting style of brightness: hand movement/auto
    9) video signal: RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION etc. managing ability of signal:≥12bit.against Y revised curve: owns 3pcs above Y curve that can adjustable.
    10) average trouble-free time:≥5000hours
    11) evenness: between random adjacent pixel ≤0.5mm,module splicing space<1mm
    12) switch power loading:5V/40A
    13) display mode of computer:1024×768


    About our led displays


    1.Wide application field & short ROI time:

    commercial advertising LED display screen, Stadium perimeter LED display screen, Mobile trailer LED display screen for mobile media,shopping mall LED display screen for logo showing, bank&stock exchange LED display screen for rates showing, train & bus station LED display screen
    air port LED display screen, telecommunication LED display screen system for information showing and instruction .

    2. High Contrast ratio: 4000:1
    Which is a very high level to ensure a vivid image of our LED display screen system.


    3. First-class LED chip:
    Supplied by Nichia of Japan & other high strictly selected LED chip to ensure the long lifetime and high brightness of our LED display screen system


    4. Clear vivid image quality:
    Even in direct, full-on sunlight to ensure you attract more audience to get short ROI of your LED display screen's investment.





    Methods for Quality Assurance
    a. Aging
    1. 100% fully test     Condition: 72 hours with 256 gray level

    b. Vibration Testing
    Condition: 3-5 min up and down in 5mm range


    The epistar Led chip. with SMD and DIP Technology .

    we adopt the epistar led chip from Taiwan,DIP and SMD led display module will be available




    The wire or wireless controll system are available .( 3g and wifi controll will be welcome)



    The steer consturction is very stable for led display,and you can purchase from your local market .

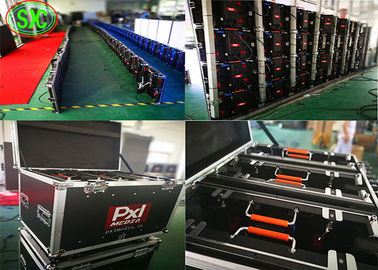

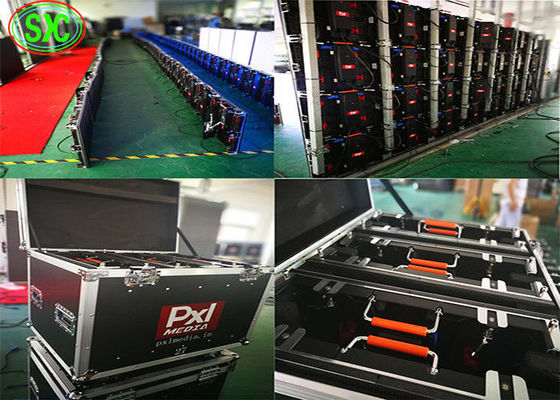

    The package and shippment




    we can receive all kinds of transportation. and the shippment term. FOB and CIF. EXW and so on.
    we can choose the best shippment which is convenient to you!
    SCXK group can give you the short delivery time and With the large production ability ,
    you can feel free about this . By air ,by train, by sea?



    Factory Equipment
    Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
    Automatic Glue- pouring Machine, Solder Paste Printing Machine,
    Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
    Withstand Voltage Tester, Ground Resistance Tester,
    Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
    Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.


    Competitive Advantage:
    1. 2 years’ warranty with free repair service
    2. 24/7 Hours online Remote Support
    3. Solution and PCB design
    4. Free factory training
    5. On site installation instruction and regular inspection
    6, Small order accepted.



    Outdoor P5 Smd Full Color Led Screen Module , high brightness led video wall modules
