Digital P4 RGB LED Curtain Display Wall Mounted , Curved LED Wall IP65 Waterproof

Digital P4 RGB LED Curtain Display Wall Mounted , Curved LED Wall IP65 Waterproof

  • Digital P4 RGB LED Curtain Display  Wall Mounted , Curved LED Wall IP65 Waterproof
  • Digital P4 RGB LED Curtain Display  Wall Mounted , Curved LED Wall IP65 Waterproof
  • Digital P4 RGB LED Curtain Display  Wall Mounted , Curved LED Wall IP65 Waterproof
  • Digital P4 RGB LED Curtain Display  Wall Mounted , Curved LED Wall IP65 Waterproof
Digital P4 RGB LED Curtain Display  Wall Mounted , Curved LED Wall IP65 Waterproof
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: SMD P4
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Name: Curved P4 LED Display Module Pixel: 2048 Dots
Pixel Configuration: SMD 1R1G1B Module Resolution: 64*32
Module Size:: 256x128mm Brightness: 9000cd/sqm
High Light:

flexible led stage screens

,

flexible led screen wall

Digital p4 Curtain LED Display Wall Mounted, Curved LED Screen IP65



What are Pixel Pitch, Pixel Density, LED QTY, and Pixel Configuration?
Pixel Pitch is the distance between neighboring pixels.
Pixel Density is the quantity of pixels per square meter.
LED QTY is the quantity of LED lamps per square meter.
Pixel Configuration is the description of the consistence of a pixel, for instance, we use 1 red lamp, 1 green lamp, and 1 blue lamp to compose a pixel, the pixel configuration is 1R1G1B.



♦ Product specification

indoor  SMD P4
Lamp size 2121
Resolution/mm 4
Pixel configuration RGB  3 in 1
Pixel density/pixels/m² 62500/m²
Module resolution 64x64
Module size/mm 256*128
View distance ≥0.5m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >2500cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 14 bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode Constant driving current
Scanning mode 1/32
Frame rate 60Hz
Refresh frequency >4200Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡ <1000W
Average power:/㎡ <280W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%



Product Overviews

Items Indoor Led display:
p1.5, P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10
Outdoor Led display:
P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25
Material steel,aluminum ,die casting aluminum
Payment
terms
30% deposit before production, 70% balance before shipping
T/T
Western Union
Packing: Standard Export Carton with fully Polyfoam or Pearl Wool
Flight case;
Anti-shaking wooden case
Shipping: 5 to 7 working days upon receiving deposit payment
After-Sales-Service: Lifetime with professional engineer support for free.
Within 5 year, supply spare parts for free if has quality problem
( not by man-made damage)
Using Range Shopping mall,bank,bus station, train station,
center of downtown, airport, school, factory, bus, taxi,and so on.



Cabinet

Digital P4 RGB LED Curtain Display  Wall Mounted , Curved LED Wall IP65 Waterproof 0



♦ Production process:

1) Incoming Inspection→2) SMD→3) Plug-in

→4) Wave Soldering→5) After Welding→6) Testing

→7) Semi Finished Aging→8) Module Assembly

→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing



♦ Our advantages

Professional Manufacturer of led display

1. OEM service,No MOQ

2. Easy installation,regular items in Stocks

3. Offering free design drawing as requested.

4. Remote controlling and adjusting are available.

5. Wooden case or flight case,you are the boss.

6. Your reply will be replied within 24 hours.

7. Fast delivery: Usually 6-8 working days

8. Excellent R&D team,factory Price and assure you quality goods.



♦ Packaging and shipping

Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.



♦ Methods for Quality Assurance

a. Aging
1) 100% fully test
2) Condition: 72 hours with 256 grey level

b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range



♦ Why choose us:

Continues Quality

With more than 12 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.

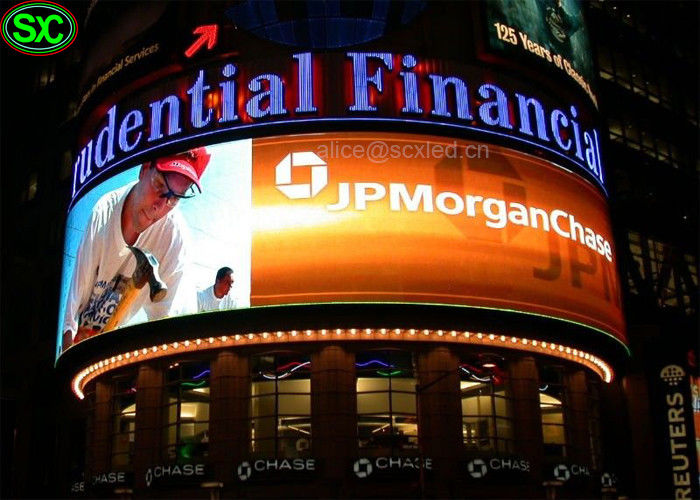

Our project

Digital P4 RGB LED Curtain Display  Wall Mounted , Curved LED Wall IP65 Waterproof 1

Digital P4 RGB LED Curtain Display  Wall Mounted , Curved LED Wall IP65 Waterproof 2
