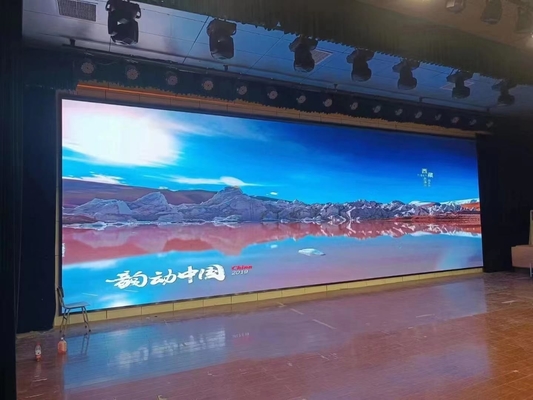

Lightweight GOB HD Indoor Full Color LED Display Screen Led Advertising Board

Lightweight GOB HD Indoor Full Color LED Display Screen Led Advertising Board

  • Lightweight GOB HD Indoor Full Color LED Display Screen Led Advertising Board
  • Lightweight GOB HD Indoor Full Color LED Display Screen Led Advertising Board
  • Lightweight GOB HD Indoor Full Color LED Display Screen Led Advertising Board
  • Lightweight GOB HD Indoor Full Color LED Display Screen Led Advertising Board
  • Lightweight GOB HD Indoor Full Color LED Display Screen Led Advertising Board
  • Lightweight GOB HD Indoor Full Color LED Display Screen Led Advertising Board
Lightweight GOB HD Indoor Full Color LED Display Screen Led Advertising Board
Product Details:
Place of Origin: ShenZhen in China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P4
Payment & Shipping Terms:
Minimum Order Quantity: 2sqm
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: Western Union, MoneyGram, D/P, T/T, L/C
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Pixel Pitch: 4mm Tube Chip Color: Full Color
Led Type: SMD 2727 Display Function: Video/Text/Image
Cabinet Material: Die- Catsing Aluminum / Iron Optimum Viewing Angel: H:160°,V:140°
Relative Humidity: ≤95%RH Power Supply: AC80-260V±10%/50Hz,60Hz
Driving Mode: 1/16 Scan
High Light:

led full color screen

,

indoor led billboard

Lightweight GOB HD Indoor Full Color LED Display Screen Led Advertising Board



Features:

• Excellent stability: High material and strictly produce process assures its stability. In addition, hundreds of mature projects have been proved the stability of our P4mm led screen product.
• Perfect color mixture from far or short distance: 4mm pixel pitch and 62500 pixels density makes P4mm screen showing content looks more like a picture even at a short distance.
• Wide viewing angle: with its 140/120 viewing angle, you will see a vivid picture or video showing on the screen at different angle.
• Higher contrast ratio: Black SMD LED Lamp makes P4mm led screen looks very black. Its contrast ratio is much higher than white SMD screen.
• Good smooth level: the connect error between the modules is less than 0.1mm, the led screen is more like a whole part nature.



♦ Product specification



indoor SMD P4
Lamp size 2121
Resolution/mm 4
Pixel configuration RGB 3 in 1
Pixel density/pixels/m² 62500/m²
Module resolution 32x32
Module size/mm 128x128
View distance ≥4m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >1800cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 120(degrees)
Signal Process bit 10 or 14 bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode Constant driving current
Scanning mode 1/16
Frame rate 60Hz
Refresh frequency >1200Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡ <1100W
Average power:/㎡ <280W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%



What is a GOB LED display?



GOB is Glue's high protection LED display on board, which is a new technology, similar to module packaging. It is working on the entire display module, for example 250*250mm. By covering the surface of the module's PCB board with patented transparent glue, thousands of SMD lamps have been soldered, and finally the module gets a special shield on its surface.

It uses high-protection LED display screen, with anti-collision, dust-proof, waterproof, moisture-proof, UV-proof, no harmful effects on heat dissipation and brightness loss. After a long period of rigorous testing, it has been clarified that the shielding glue even helps to dissipate heat and extend the service life.

The revolutionary change driving the entire LED display industry is that the goals of this GOB display are fine-pitch LED displays and rental screens, which have a natural need for LED diode protection.

Lightweight GOB HD Indoor Full Color LED Display Screen Led Advertising Board 0

♦ Applications

LED display can be widely used in advertising,multi-media,stadium,stage,rental show,transit directions,etc.



♦ Our advantages

Professional Manufacturer of led display

1. OEM service,No MOQ

2. Easy installation,regular items in Stocks

3. Offering free design drawing as requested.

4. Remote controlling and adjusting are available.

5. Wooden case or flight case,you are th boss.

6. Your reply will be replied within 24 hours.

7. Fast delivery: Usually 6-8 working days

8. Excellent R&D team,factory Price and assure you quality goods.



Lightweight GOB HD Indoor Full Color LED Display Screen Led Advertising Board 1



♦ Production process:

1) Incoming Inspection→2) SMD→3) Plug-in

→4) Wave Soldering→5) After Welding→6) Testing

→7) Semi Finished Aging→8) Module Assembly

→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

Lightweight GOB HD Indoor Full Color LED Display Screen Led Advertising Board 2

♦ Packaging and shipping

Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.

Lightweight GOB HD Indoor Full Color LED Display Screen Led Advertising Board 3

♦ Why choose us:



Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.

Lightweight GOB HD Indoor Full Color LED Display Screen Led Advertising Board 4



♦ Frequently Asked Questions



What kind of payment terms you can accept ?

We can accept T/T and Western Union.



What about your Led Display quality ?

Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of

our products continuity.



What is your delivery time ?

Within 7-35 days according to your area and quantity.



Is your LED display competitive ?

Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure

our led display’s competitiveness.

Lightweight GOB HD Indoor Full Color LED Display Screen Led Advertising Board 5
