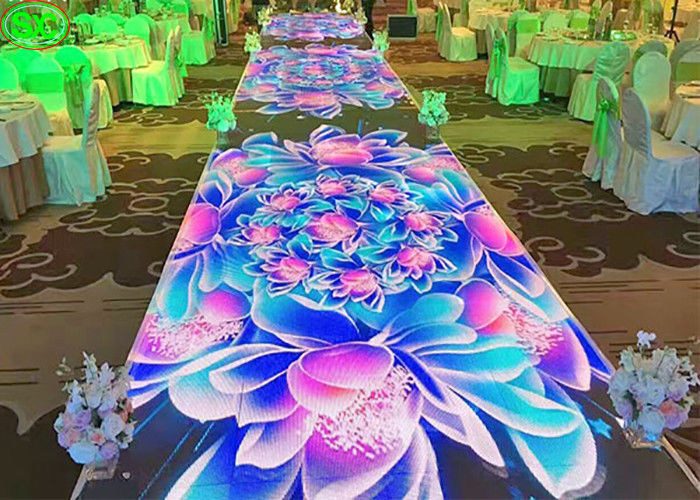

P4.81 Noiseless interactive led video dance floor , disco dance floor waterproof

P4.81 Noiseless interactive led video dance floor , disco dance floor waterproof

  • P4.81 Noiseless interactive led video dance floor , disco dance floor waterproof
  • P4.81 Noiseless interactive led video dance floor , disco dance floor waterproof
  • P4.81 Noiseless interactive led video dance floor , disco dance floor waterproof
  • P4.81 Noiseless interactive led video dance floor , disco dance floor waterproof
P4.81 Noiseless interactive led video dance floor , disco dance floor waterproof
Product Details:
Place of Origin: China
Brand Name: SCX
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P4.81
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Product Name: P4.81 Noiseless Interactive Led Video Dance Floor , Disco Dance Floor Waterproof LED Arrangement: 1R1G1B
Pixel Density: 43222nits Refresh Rate: 2500hz/s
Module Size: 250x250mm Driver Mode: 1/4 Scanning
High Light:

interactive dance floor

,

light up dance floor

                                            P4.81 Noiseless interactive led video dance floor , disco dance floor waterproof

 Description

Led video dance floor is a new digital terrestrial. Our led dance floor uses a high strength resin mask, the support of solid aluminum die-casting equipment, big load-bearing capacity, easy to connect, can be directly stampede with highly performance protective structure, can be connected seamlessly next panel, random combinations.
RGB colorful LED dance floor
Ø Unlimited programming effects
Ø Special lighting effect
Ø 32-bit colour (16.7 million color combinations)
Ø Modular & highly portable
Ø Quick and easy installation
Ø More affordable than any existing solutions
Ø Sealed for long, durable lifetime

♦ Product specification



LED Specifications
1TypeSMD
2LED StandardReal Pixel(1R1G1B)
3Red Wavelength625-630nm
4Green Wavelength515-530nm
5Blue Wavelength465-475nm
Module Specifications
1Pixel Pitch4.81mm
2Resolution52x52dots
3Module size250x250mm
Cabinet Specifications
1Cabinet Size(W*H)500x500mm
2Cabinet Resolution104x104dots
3Pixel Density43222dots/㎡
4Cabinet Weight≤6.5kg
5Materialdie casting aluminum
6Flatness of cabinet≤0.3mm
Screen Parameters
1Color /Brightness CalibrationYes
2Color Temperature(K)3000-10000
3Light Centre Distance Deviation<3%
4Brightness Uniformity≥97%
5Color UniformityWithin ±0.003C×,Cy
6Contrast Ratio5000:1
7View AngleHorizontal160°/ Vertical 140°
8Input VoltageAC100~240V(50-60Hz)
9Power ConsumptionMax:800w/㎡ Avg:280w/㎡
10Driving Method13 scaning
11Protection LevelIP65 waterproof
12Grey Scale LevelsR(256) G(256) B(256)
13Life Span100,000 Hrs
14Temperature-Operating-20 — 40℃
15Humidity-Operating10 - 99%
16Featuresanti-slip,anti-collision,big load-bearing capacity
17Usageled floors, led wall background
18Display functiontxt, picture, video


P4.81 Noiseless interactive led video dance floor , disco dance floor waterproof 0

♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.

♦ Applications
Stage,Sports,advertising,traffic,events,stadium,shopping center,airport,exhibitions, car shows, fashion
shows, concerts, ceremonies, entertainment,etc.

♦ Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 6-8 working days
8. Excellent R&D team,factory Price and assure you quality goods.


Service
Pre-sale service:
1.Reply enquiries in 24 hours.
2.Market research and forecast for customer.
3.Provide unique and professional solutions based on customer's requirement.
4.Data sheet and samples offer.
5.Other services, such as special packing design, factory visiting and so on.

In-sale service:
1.Tracking report in producing.
2.Quality test report for every order.
3.Photos and videos as per customer's requirement.
4.Free spare parts.

After-sale service:
1.Lifetime free maintenance and upgrade.
2.Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3.Customer satisfaction tracking report.
4.Free technician training.
5.Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6.Special service for big project, such as stadium, exhibitions, squares and so on.
