Place of Origin: | China |
Brand Name: | SCXK |
Certification: | CE/ROHS/FCC/ISO/UL |
Model Number: | P10 |
Minimum Order Quantity: | negotiation |
---|---|
Price: | negotiation |
Packaging Details: | flight case, wooden case, carton, it is up to you. |
Delivery Time: | 7-10 working days after receive your payment |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 5000sqm per month |
Product Name: | Outdoor RGB P10 Waterproof 90 Degree Corner Digital LED Display Wall | Pitch Size: | 10mm |
---|---|---|---|
Pixel Compose: | 1R+1PG+1B | Usage:: | Outdoor |
Screen Dimension:: | Customized | Working Tem./Hum.: | -20-50℃ |
Highlight: | led display rgb,rgb led screen |

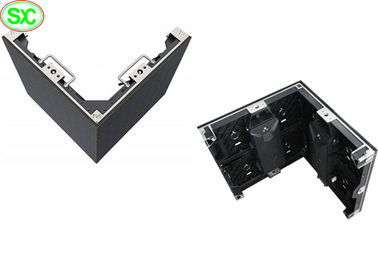

Outdoor RGB P10 Waterproof 90 Degree Corner Digital LED Display Wall
♦ Our advantage
1) Professional manufacturer
2) Exquisite quality
A: ISO 9000 and 5S management system
B: Each procedure have special machine and QC to supervise and check
C: From the material purchasing, all have the special Equipment to stakeout
3) Perfect service
♦ Energy saving
Reducing costs up to 95%(compared to incandescent systems)
Efficiency
Long life span-over 100,000hrs(approx.10 years)
Weather resistant
Low maintenance
High resolution and clarity
♦ Our service:
A: 2-3years guarantee with free charge, maintain in all life
B: Free training in our company or guide installation and train in customer country or on lone training by long- distance control in internet( you could send your colleagues who have some knowledge of electronics to our factory and we will provide free training of how to maintain and repair)
♦ Product specification
outdoor SMD P10 | ||||||||||||||
Resolution/mm | 10 | |||||||||||||
Pixel configuration | 1R1G1B | |||||||||||||
Pixel density/pixels/m² | 10000/m² | |||||||||||||
Module resolution | 32*16 | |||||||||||||
Module size/mm | 320*160 | |||||||||||||
View distance | 9-400m | |||||||||||||
Single point brightness adjust | Can be added | |||||||||||||
Single point color adjust | Can be added | |||||||||||||
White balance brightness | >8000cd/㎡ | |||||||||||||
Color temperature | 6500K-9500K | |||||||||||||
Horizontal view angle | 120(degrees) | |||||||||||||
Vertical view angle | 60(degrees) | |||||||||||||
Signal Process bit | 10 or 16bit | |||||||||||||
Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | |||||||||||||
Driving mode | Constant driving current | |||||||||||||
Scanning mode | (1/4) | |||||||||||||
Frame rate | 60Hz | |||||||||||||
Refresh frequency | >3500Hz | |||||||||||||
Control mode | Computer synchronous | |||||||||||||
Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
Out of control point | <1/10000 | |||||||||||||
Working hours | ≥72hours | |||||||||||||
Mean Time Between Failure | >5000hours | |||||||||||||
Life time | 100000hours | |||||||||||||
Life-all-white(brightness halving) | 50000hours | |||||||||||||
Environment temperature range | Operating temperature range: -20-45℃ | |||||||||||||
Maximum power:/㎡ | <900W | |||||||||||||
Average power:/㎡ | <350W | |||||||||||||
Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
Luminous point width between centres | Deviation<3% | |||||||||||||
Brightness uniformity | <10% | |||||||||||||
Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
Contrast | (1000:1) | |||||||||||||
System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
Humidity(working) | working:10-95% | |||||||||||||
Humidity(storing) | storing:10-95% |
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Description:
•With sensitive control system, it can adjust screen brightness automatically according to the lighting change of indoor and outdoor, saving energy to reduce your operating costs greatly.
•High refresh rate and high gray make the picture more realistic, which meets the demand of high visual quality of commercial usage.
•The advertising contents can be changed at any time, for different customers and various advertisements.
•you can know the display operation anytime, anywhere.
• it can turn on and turn off the screen by software timing or manually at any time, achieving unattended function.

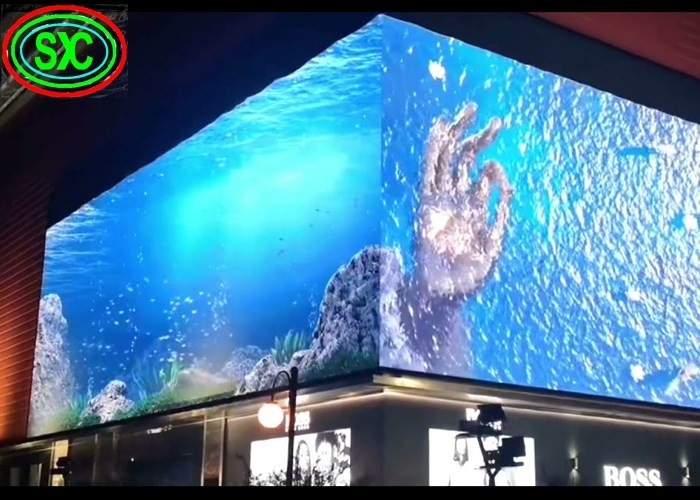

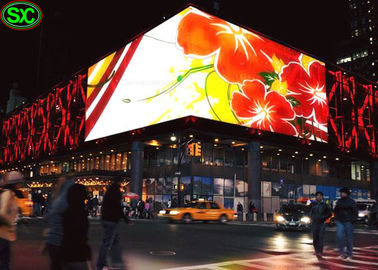

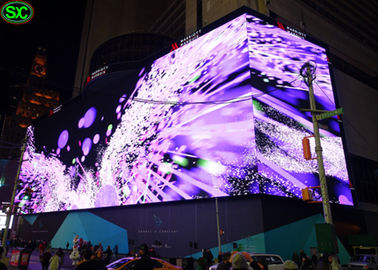

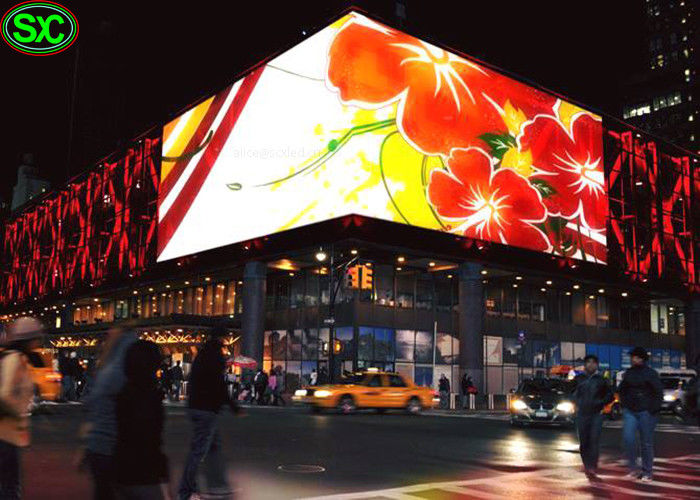

♦ Our project
♦ Our contact
Our team will be forever here to offer you full supports !!!
Contact Person: Alice Zhi
Tel: +8618026962937
