Multi Function Video Audio P3.91 P4.81 Cabinet 500x500mm stage Use Rental High Definition Led Display

Multi Function Video Audio P3.91 P4.81 Cabinet 500x500mm stage Use Rental High Definition Led Display

  • Multi Function Video Audio P3.91  P4.81 Cabinet 500x500mm stage Use Rental High Definition Led Display
  • Multi Function Video Audio P3.91  P4.81 Cabinet 500x500mm stage Use Rental High Definition Led Display
  • Multi Function Video Audio P3.91  P4.81 Cabinet 500x500mm stage Use Rental High Definition Led Display
  • Multi Function Video Audio P3.91  P4.81 Cabinet 500x500mm stage Use Rental High Definition Led Display
Multi Function Video Audio P3.91  P4.81 Cabinet 500x500mm stage Use Rental High Definition Led Display
Product Details:
Place of Origin: China
Brand Name: SCX
Certification: CE,ROHS,FCC,SASO
Model Number: P3.91
Payment & Shipping Terms:
Minimum Order Quantity: 1 SQM
Price: USD 1000-10000
Packaging Details: Wooden Case , Size: 60x62x50cm, Wooden Case, Size:70x65x55cm
Delivery Time: 10-15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sqm per month
Contact Now
Detailed Product Description
Led Module: 250*250mm Pixel Density: 65410 Dots/sqm
Luminous Intensity: R:620-630, G:520-535, B:465-475 Wavelength: R:400-500mcd, G:1800-2200mcd, B:350-450mcd
Test Condition: R:25℃,20mA, G:25℃,20mA, B:25℃,20mA
High Light:

rental led display screen

,

led rental screen

Multi Function Video Audio P3.91 P4.81 Cabinet 500x500mm stage Use Rental High Definition Led Display





Features



Ultra-Slim and Light-weight with Aluminum-magnesium Alloy

With die-casting aluminum housing, only 6.5KG/Panel, and 80mm in depth, saving in transportation and labor cost.



Huge Viewing Angle and Outstanding Uniform Performance of LEDs

SCXLED P3.91 die-casting aluminum cabinetadopts advanced encapsulation and SMT technology to ensure perfect uniformity and flatness of LEDs. The image has no dirty spot even when you stand at 140 degree vertically.



Seamless Splicing and Fast Installation

SCXLED P3.91 die-casting aluminum cabinet adopts die-casting aluminum material and unique quick-lock design that make seamless splicing and fast installation.



Noiseless with No-fan Design



High Quality Raw Material

SCXLED P3.91 die-casting aluminum cabinet adopts Taiwan MBI IC + Taiwan Epistar Chip +Black SMD LED

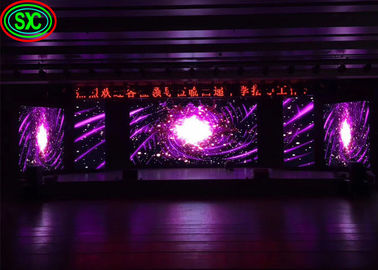

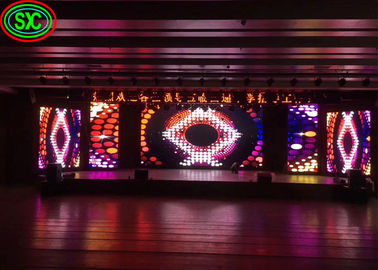

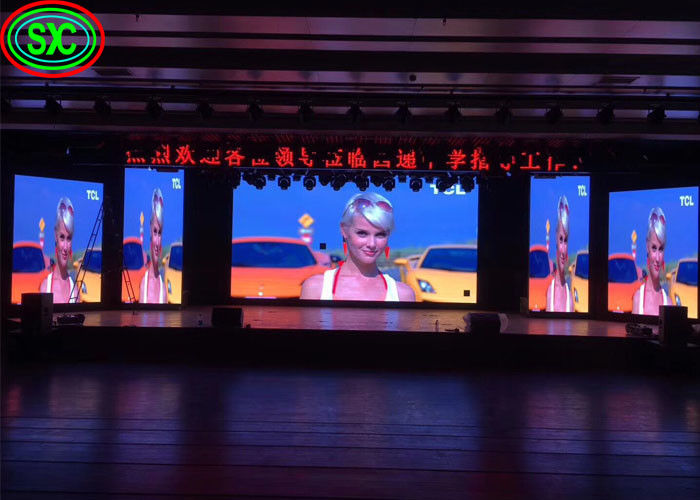

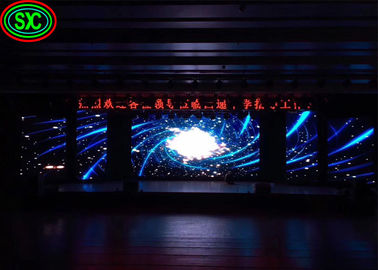

Product Effect



Multi Function Video Audio P3.91  P4.81 Cabinet 500x500mm stage Use Rental High Definition Led Display 0







Specification

Pixel Pitch 3.91mm
Pixel Density 65536dots/sqm
Color Configuration 1R1G1B
LED Package SMD2121
Module Size 250mm x 250mm
Module Resolution 64dots x 64dots
Drive Mode 1/16 Scan
Standard Cabinet Size 500mm x 500mm
Cabinet Weight 7KG
Brightness ≥1300 cd/sqm, adjustable by software
Viewing Distance 4m-40m
Viewing Angle H: 140°; V:120°
Refresh Rate 1500HZ, adjustable by software
Frame Rate 120frame/s
Grey Scale 16.7M colors(Synchronized)
Color Temperature R.G.B brightness 256 level adjustable
Power Input AC110V/ 220V ±10%, 50HZ
Max Power Consumption 800W/sqm
Ave. Power Consumption 300W/sqm
Storage Temperature -30℃~+70 degree
Working Temperature -20℃~+50 degree
Blind Spot Rate <1/10000
MTBF >10,000 Hours
Life Span >100,000 Hours
Waterproof Level IP43
Operating Humidity 10%~90% RH
Control Method Synchronous, Asynchronous, 3G,WIFI,USB
PC Display Resolution 1280x1024
Control PC With DVI Graphic card
Operating System Win 98, Win2000, XP, Win7, Win8
Video Signal Mode RF, S-Video, RGB, RGBHV, YUV, YC etc
Certificate CE, RoHS



Applications

Business Organizations Supermarket, large-scale shopping malls, star-rated hotels, travel agencies
Financial Organizations Banks, insurance companies, post offices, hospital, schools
Public Places Subway, airports, stations, parks, exhibition halls, stadiums, museums, commercial buildings, meeting rooms
Entertainments Movie theaters, clubs, stages







Product Advantage

Multi Function Video Audio P3.91  P4.81 Cabinet 500x500mm stage Use Rental High Definition Led Display 1

Multi Function Video Audio P3.91  P4.81 Cabinet 500x500mm stage Use Rental High Definition Led Display 2

Multi Function Video Audio P3.91  P4.81 Cabinet 500x500mm stage Use Rental High Definition Led Display 3

Multi Function Video Audio P3.91  P4.81 Cabinet 500x500mm stage Use Rental High Definition Led Display 4

Multi Function Video Audio P3.91  P4.81 Cabinet 500x500mm stage Use Rental High Definition Led Display 5







Our Service



Pre-sale service


1. Reply enquiries in 24 hours.


2. Market research and forecast for customer.


3. Provide professional solutions based on customer's requirement.


4. Offer sample and all document as customers required.


5. Other services, such as factory visiting and so on.

In-sale service


1. Tracking report of production.


2. Quality test report for every order.


3. Photos and videos as per customer's requirement.


After-sale service


1. Lifetime maintenance and software upgrade.


2. Complaint respond period not exceed 24 hours, maintenance guidance and problem solution supplied in 48 hours.


3. Free technician training.


4. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.


5. Engineer guide installation onsite if needed.
