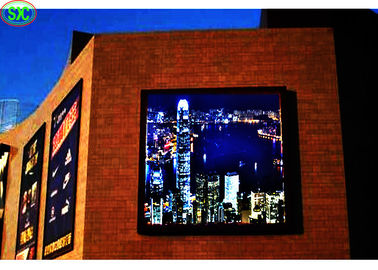

Exterior full color p8 LED iron cabinets fixed on the wall 1024mm by 1024mm advertising led display

outdoor full color p8 smd led advertising screen 1024x1024 iron cabinet fixed installation billboard outdoor



Located in Longhua new district (where most of Shenzhen LED displays factories locate in),Shenzhen Shichuangxinke Electronic Co, ltd integrates design ,engineer ,production and sales into one. It is one of the most progressive enterprises in LED display fields owning a large number of professional research and development technicians.



We have mounts of top-quality talents and modern professional production and testing equipments, which leads to reliable quality of LED displays and meet clients’ requirements kindly.Focusing on professional producing kinds of big size LED displays,advertising led displays,indoor and outdoor full-color displays and single color and dual color led displays,together with accessories like cabinets and power supply,we have built quite good stragic partnership with raw material manufacturers.At present,Our leading led displays are exported to a lot of countries except sold in domestic markets and widely applicated in fields such as airports,stations,ports,stadiums,banks,schools,factories,post and telecommunications office,shopping malls,hospitals,industrial and commercial bureau,revenue,custom,monitoring centers and entertainments.



Insisting on the business philosophy of integrity and win-win benefits,we provide reliable products and excellent service by serving clients in honesty,offering excellent products and creat biggest value for clients to win the market.





Items		P8 outdoor Full Color Display
Module	Pixel Pitch	8mm
	Pixel Density(dot/m²)	15625
	Pixel Configuration	1(RGB)
	Packaged Type of LED	SMD
	Module Size(mm)	256X128
	Module Resolution	32X32
Technical Parameter	Brightness(cd/m²)	6500
	Max Power Consumption(w/m²)	1050
	Best Viewing Distance(m)	5-20
	Viewing Angle	120°V/120°H
	Drive Mode	Constant Current drive 1/4 scan
	Driving	Driving IC MBI5024
	Frame-change Frequency	≥60 Hz/s
	Refresh Rate	≥600Hz/s
	Gray Grade Level	4096 grades
	Color	65536 kinds of colors
	Display Mode	1024*768
	Control System	Synchronization Control
	Transmission Distance	Reticle≤100M;Multi-mode Fiber≤500M;Single-mode Fiber≤10000M
	Out of Control	Rate≤0.0001
	Lifespan	≥100000H
	Driving Power	5V
	Working Voltage	AC220V±10% 47HZ~60hz
	Working Temperature	-10ºC~+55ºC
	Working Humidity	5%RH~85%RH































































♦ Production process:



1) Incoming Inspection→2)SMD→3)Plug-in

→4) Wave Soldering→5)After Welding→6)Testing

→7) Semi Finished Aging→8)Module Assembly

→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing



The epistar Led chip. with SMD and DIP Technology .

we adopt the epistar led chip from Taiwan,DIP and SMD led display module will be available





The wire or wireless controll system are available .( 3g and wifi controll will be welcome)




The steer consturction is very stable for led display,and you can purchase from your local market .


The package and shippment



we can receive all kinds of transportation. and the shippment term. FOB and CIF. EXW and so on.
we can choose the best shippment which is convenient to you!
SCXK group can give you the short delivery time and With the large production ability ,
you can feel free about this . By air ,by train, by sea?


Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.



A. Flight case Packing
1)150KG Per flight case
2)3 cabinets in one case
3)Flight case size: 1010mm*560mm*1175mm=39inch*22inch*46inch



B. Plywood case
1)180KG per plywood case
2)3 cabinets in one case
3)Plywood case size: 1120mm*585mm*930mm= 44inch*23inch*36inch



C.customized packing is acceptable
D. 20"FT container loading of 100sq.m





♦ Why choose us:

Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.



What about your Led Display quality ?

Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of

our products continuity.



What is your delivery time ?

Within 7-10 days according to your area and quantity.



Is your LED display competitive ?

Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure

our led display’s competitiveness.
