Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China ,Guang Dong |
| Brand Name: | Shichuangxinke |
| Certification: | CE RoHS FCC CCC TUV UL |
| Model Number: | SCXK-P16 |
| Minimum Order Quantity: | 3 square meters |
|---|---|
| Price: | USD 500-750 square meters |
| Packaging Details: | wooden box flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after deposit payment received |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000sqm per month |
| Resolution/mm: | 16 | Pixel Configuration: | 1R1G1B |
|---|---|---|---|
| Scanning Mode: | Static Full Color | Module Size: | 256x256mm |
| Cabinet Size: | 1024x1024mm | Certificates: | CE RoHS FCC CCC UL |
| Application: | Stadium,airport,shopping Mall,street Advertising | Material: | Aluminum |
| Warranty: | 3-5 Years | ||
| Highlight: | full color outdoor led display,outdoor full color led screen |
||

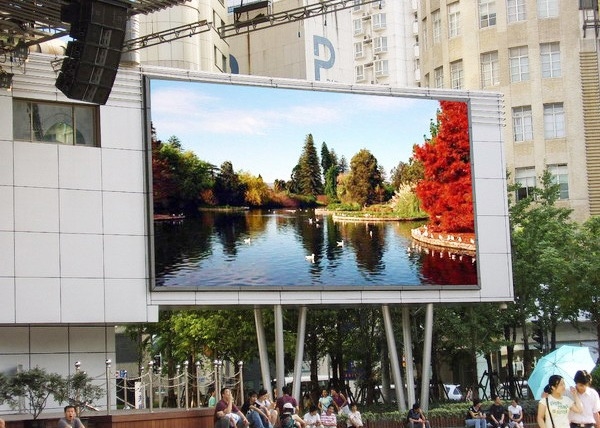

waterproof static full color P16 DIP outdoor LED advertising display
1. Adopt outdoor high brightness SMD LED;
2. Good color uniformity to ensure clear and vivid images and videos;
3. Seamless splicing of cabinets;
4. Good heat dissipation performance;
5. Energy saving and consumption reduction;
6. Environmental protection;
7. Automatic brightness adjustment to avoid light pollution;
8. Easy-to-operate control system;
9. At least two years warranty;
10. Very competitive price.
Description:
1. The P16 DIP LED display has high resolution and is suitable for outdoor LED display use;
2. Both horizontal and vertical viewing angles are 140 degrees;
3. As LED displays develop towards high resolution, the application of P16 electronic digital signage is becoming more and more extensive.
4. Advertising images and videos are clear and realistic;
5. The high contrast ratio of 1000:1 presents real and natural LED screen colors;
6. IP65 waterproof rating, suitable for outdoor use;
Applications:
Airport Full Color Indoor LED displays
Train station Indoor Full Color LED Displays
Entertainment Bar Indoor Full Color LED Screen
Stadium Indoor Full Color LED Display
Museum Full Color Indoor LED display
Car exhibition LED display
Conference room Indoor Full Color LED Video Display
Shopping Mall Indoor Full Color LED display
Specifications :
| outdoor DIP P16 | |||||
| Resolution/mm | 16 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 3906/m² | ||||
| Module resolution | 16x16 | ||||
| Module size/mm | 256x256mm | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/㎡ | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | static full color | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
Trade terms
1. Hardware: LED display and video controlling system
2. Technical material: English version user manual, installation manual And maintenance manual
3. Service:Provide free technology support by phone and e-mail 7 years guarantee
4. Delivery: Approx 3-12 working days
5. Packing: Anti-shaking wooden package or Air Flight Case.
6. Transportation: By sea or air or Express
7. Two-Three years warranty. Repairing and replacement during the guaranteed period will be free,
but you should bear the freight cost from your place to our factory.
However, we can not guarantee on a workshop for replacement, compensation for damage, and repairing charge taking place within the following situations:
Accident due to careless handling and misusage.
