Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China ,Guang Dong |
| Brand Name: | Shichuangxinke |
| Certification: | CE RoHS FCC CCC TUV UL |
| Model Number: | SCXK-P20 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden box flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after deposit payment received |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000sqm per month |
| Resolution/mm: | 20 | Pixel Configuration: | 1R1G1B |
|---|---|---|---|
| Scanning Mode: | Static Full Color | Module Size: | 320x160mm |
| Cabinet Size: | 1280x960mm | Certificates: | CE RoHS FCC CCC UL |
| Application: | Stadium,airport,shopping Mall,street Advertising | Material: | Aluminum |
| Warranty: | 3-5 Years | ||
| Highlight: | full color led signs outdoor,full color outdoor led display |
||
DIP346 Commercial advertising Large P20 LED Display Screen, RGB LED Billboards
Features
1. Aluminum structure,good heat dissipation with heat emission hole and high hardness
2. Cabinet size and light weight which make it portableand easy to install
3. High Definition with 40000 dots/㎡, good color uniformity
4. With two location poles on each panel which support hoisting and rental events
Advantages
1. High definition with 20mm pixel pitch and stability performance
2. cabinet size: 1280x960mm and light weight panel which can be used in rental events
3. Faorable cost performance
Specifications :
| outdoor DIP P20 | |||||
| Resolution/mm | 20 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 2500/m² | ||||
| Module resolution | 16x8 | ||||
| Module size/mm | 320x160mm | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/㎡ | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | static full color | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
Competitive advantages:
1, P20 outdoor full color LED display uniform in brightness and color;
2, Full color P20 LED screen is utilizing full black color LED chips;
3, Indoor full color LED video screens contrast ratio up to 1000:1 to react real color of the content;
4, Utilizing Sum driver IC to reach high refresh frequency and high grey grade;
5, Large viewing angle at 140 degree horizontal and vertical;
6, P20 LED display is of high resolution for indoor rental events that require high quality presentation and its cost is being lower for large size indoor LED screens use;
Competitive advantages:
1. We have the advantage of a full range of LED display production
2: Goods supply from indoor and outdoor P10, P8, P6, P4,P3,P3.91, P4.81, P2, P2.5, P1.976 have sufficient inventory, at the same time has high quality, let you buy at ease, use at ease
3. We have round-the-clock online customers to help customers and give customers product performance introduction, as
wellasproduct advantage analysis; According to the actual situation and the use of the situation, for the customer
evaluation,choosethe most reasonable scheme
4: At the same time, we can provide customers with professional training on the operation and maintenance of the led display
system Display troubleshooting
Applications:
On roof of building LED Billboard

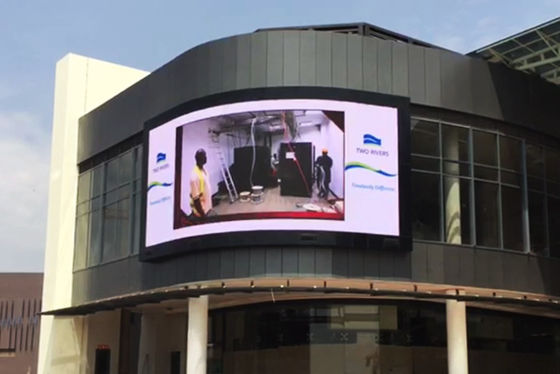

Mounted on building LED Billboard
Put on steel pole LED Billboard
Cross bridge information LED Billboard
Shopping Mall LED Billboard
Commercial Advertising LED Billboard
Church LED Billboard

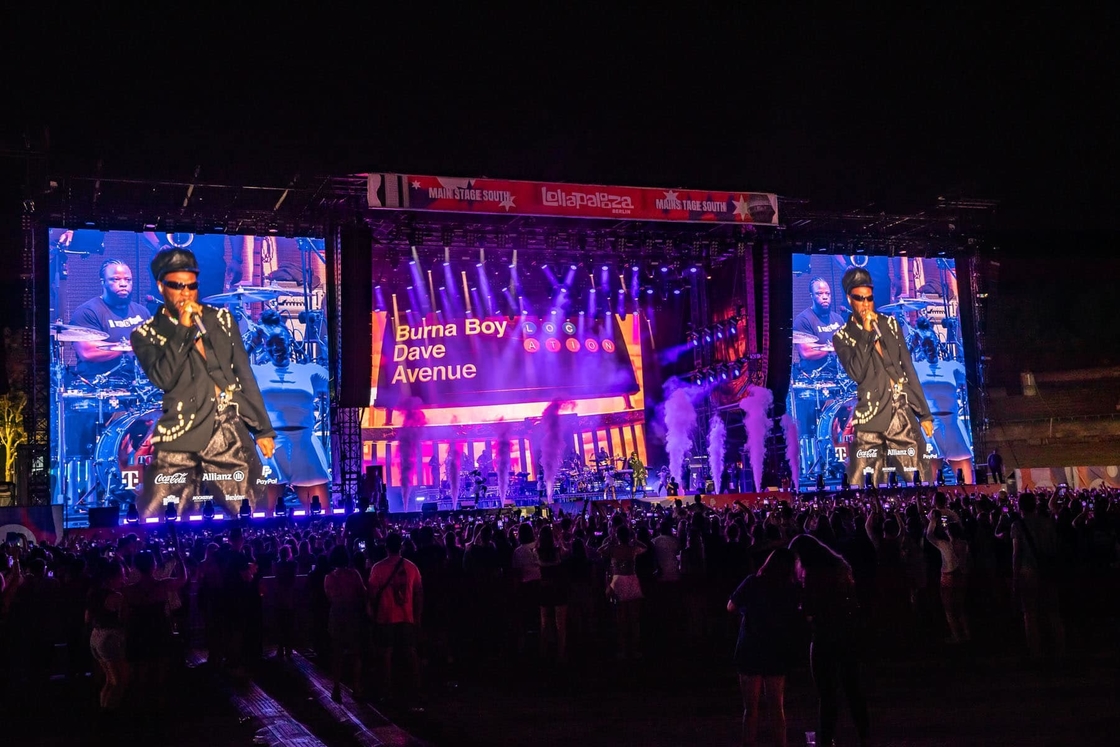

Road Show LED Billboards
High Speed Way LED Advertising Billboard
