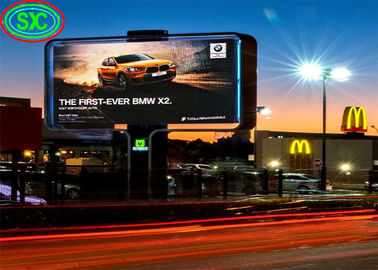

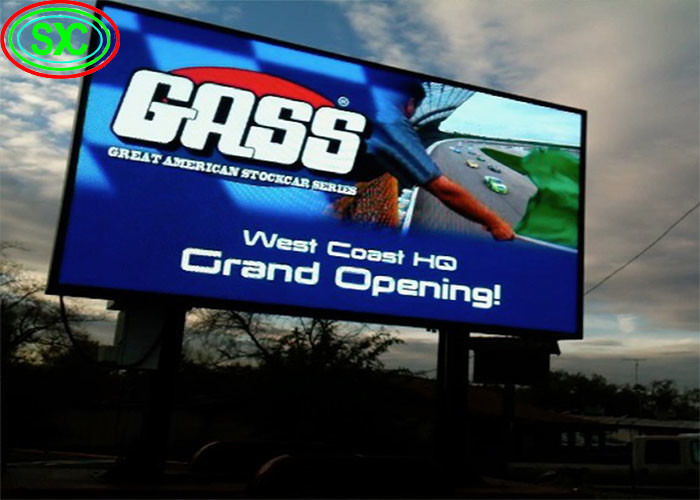

SMD2727 P5 high definition led display waterproof advertising billboard fixed installation screen 1/8s

SMD2727 P5 high definition led display waterproof advertising billboard fixing installation screen 1/8s



In the information age, it is getting more and more important to promulgate information in morden life. People require the better visual media which act fast, real and outstanding to meet their demand, but the traditional advertisement could no longer satisfy our needs.so the led display creat a new style of transmission of information.



1) To ensure the clearness of graphics and texts, as to the indoor display within 100sqm,the same level of red,green and blue LED lamps with the same brightness( ±10%)and wave length( ±2.5nm) are chosen.



2)The glue we apply to encapsulate the module surface is imported from Sourth Korea. It decreases the effect of background color. As a result of the full absorption of thr LED refraction light,the display eliminate the urmbra and ghosting during broadcast.



3)We apply sophisticated technology of plastic closure,each module of the horizontal height less than 0.1mm.Therefore,our displays have good color uniformities ,homogeneity,which is unique in the LED display field.



4)Module design makes it convenient to assemble and also ensure that the cabinets are nice-looking.



5)Maitenance difficulties are slolved and it truely realizes three-dimensional and dot-to-dot maiterance.



6)The price is competitive among the same products in market and the quality is assured.



Technicail Specification:



LED Sign
Module	Pitch/mm	P5	P6
	Module size/mm	160x160	192x192
	Density of pixel/(dots/m2)	20000	27778
	Led encapsulation	SMD2727	SMD3535
	Resolution of module	32x32	32X32
Main	Optimum viewing distance	5-150m	6-150m
	View angle / °	90H,120 V	90H,120V
	Max power consumption/W/M2	800	800
	Size of cabinet/	Customized	Customized
	Driving method	1/8 scan constant current	1/8 scan constant current
	Refresh rate Hz/S	≥1000	≥1000
	Luminance of white balance	≥5500 nits	≥5500 nits
	Operation of Environmental Temperature/℃	below 15 to above 55
	Working vlotage	110-220 VAC/+/- 10%
	Grey scale/color	displaying colors≥16.7M(synchronized)
	Brightness adjustment	256 levels of each color(manually),100 levels of each color(automatically)
	Input signal	RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
	Control system	sending card,receiving cards and Hubs
	Average of non-failure life	>50,00h
	Life span	>100,000h
	Defect dot rate	<0.0001







Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue-pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.

1.Wide application field & short ROI time:
Commercial advertising LED display screen, Stadium perimeter LED display screen, Mobile

trailer LED display screen for mobile media,shopping mall LED display screen for logo

showing, bank&stock exchange LED display screen for rates showing, train & bus station LED

display screen
air port LED display screen, telecommunication LED display screen system for information

showing and instruction .

2. High Contrast ratio: 4000:1
Which is a very high level to ensure a vivid image of our LED display screen system.

3. First-class LED chip:
Supplied by Nichia of Japan & other high strictly selected LED chip to ensure the long

lifetime and high brightness of our LED display screen system

4. Clear vivid image quality:
Even in direct, full-on sunlight to ensure you attract more audience to get short ROI of

your LED display screen's investment.









We can receive all kinds of transportation. and the shippment term. FOB and CIF. EXW and so

on.
We can choose the best shippment which is convenient to you!
SCXK group can give you the short delivery time and With the large production ability.

Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.

A. Flight case Packing
1)150KG Per flight case
2)3 cabinets in one case
3)Flight case size: 1010mm*560mm*1175mm=39inch*22inch*46inch

B. Plywood case
1)180KG per plywood case
2)3 cabinets in one case
3)Plywood case size: 1120mm*585mm*930mm= 44inch*23inch*36inch

C.customized packing is acceptable
D. 20"FT container loading of 100sq.m





♦ Why choose us:

Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.







♦ FAQ



What kind of payment terms you can accept ?

We can accept T/T and Western Union.



What about your Led Display quality ?

Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of

our products continuity.



What is your delivery time ?

Within 7-35 days according to your area and quantity.



Is your LED display competitive ?

Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure

our led display’s competitiveness.
