Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China ,Guang Dong |
| Brand Name: | Shichuangxinke |
| Certification: | CE RoHS FCC CCC TUV UL |
| Model Number: | SCXK-P16 |
| Minimum Order Quantity: | 1 square meters |
|---|---|
| Price: | USD 550-750 square meters |
| Packaging Details: | wooden box flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after deposit payment received |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000sqm per month |
| Pixel Pitch: | 16mm | Pixel Configuration: | 1R1G1B |
|---|---|---|---|
| Scanning Mode: | Static Full Color | Module Size: | 256x256mm |
| Cabinet Size: | 1024x1024mm | LED: | DIP |
| Warranty: | 2 Years | Certificate: | CE RoHS FCC CCC TUV UL |
| Application: | Stadium,airport,shopping Mall,street Advertising | ||
| Highlight: | full color led signs outdoor,outdoor full color led screen |
||
Front P16 LED Display Wholesale Outdoor Advertising ,outdoor big size screen
Our company, SCXLED, is a leader in LED display manufacturing and technology. Its outdoor and indoor commercial advertising LED displays, rental LED displays, fixed installation LED displays, stadium perimeter LED displays, mobile trailer LED displays, floating LED displays, transparent LED drapery displays, digital LED billboards, skyscraper decorative LED lattice displays, curved LED displays, LED assemblies, and complete LED Full color video systems are subject to stringent quality control in ISO 9001 certified manufacturing facilities.
Our company, SCXLED, provides user-friendly products that optimize productivity and business efficiency while maintaining the highest standards of design and quality. Customer satisfaction is our number one goal, and our high quality LED video displays are used in over 140 countries and have earned an excellent reputation.
Price terms: FOB Price
Valid time: 30days
Payment terms: T/T in advance, 30% deposit and the balance 70% will be paid before shipment.
Delivery time: 15days
Warranty time: 2year, offer the free spare parts(module & power supply) in advance. After guanranty term, still supply spare parts with charging only materials cost.
Packing: Standard wooden case packing free, flight case packing (add US$107/PCS to the unit price. )
Outdoor Billboard Specifications :
| Outdoor Billboard DIP P16 | |||||
| Resolution/mm | 16 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 3906pixel/m² | ||||
| Module resolution | 16x16 | ||||
| Module size/mm | 256x256MM | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/㎡ | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/4 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
OUR COMPANY SCXLED provides, debugging and maintenance service for our LED display.
Such as:
1. After-sales service:
1) Service Principle: Respond in time, solve the problem as soon as possible, and ensure the use.
2) Service period: During the warranty period of LED screen, all maintenance costs are exempted; after the warranty period, only material costs are charged, no labor costs.
(3) Scope of service: If the user finds that the problem can not be solved, please contact our company, our company will give a reply within 24 hours. In order to shorten the maintenance time, our company will deploy power supply, chips and other spare parts.
4) Under normal use and storage conditions, the equipment is under the responsibility of our company.
2. Pre-sales service:
1) Our company can arrange professional personnel to carry out commissioning in strict accordance with the program requirements and the original instructions. If there are special requirements, part of the installation program needs to be changed, our company will coordinate with the user. Our company can ensure that the completion time is consistent with the time agreed in the contract. If there are problems caused by natural or human factors, we will negotiate with the user to solve the problem.
2) Our company can train users according to the instructions. The training includes system use, system maintenance, equipment protection and so on.

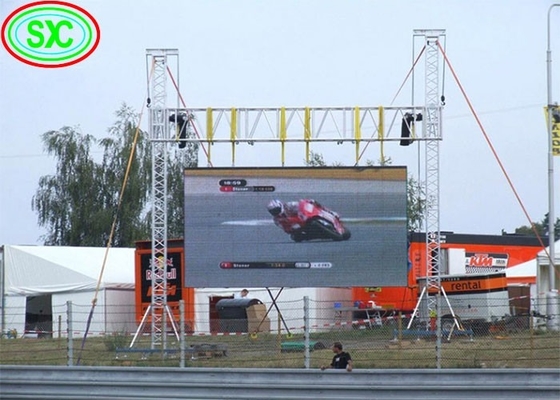

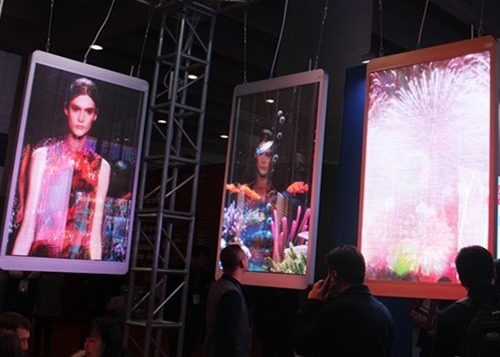

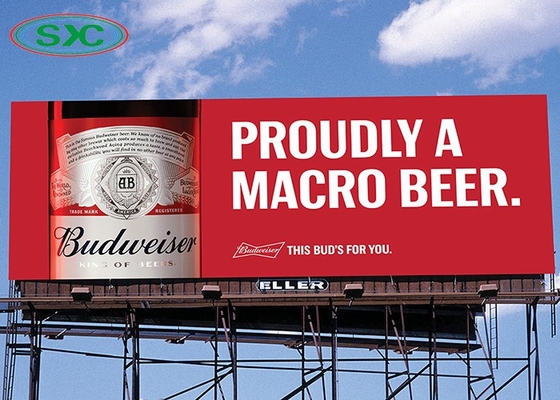

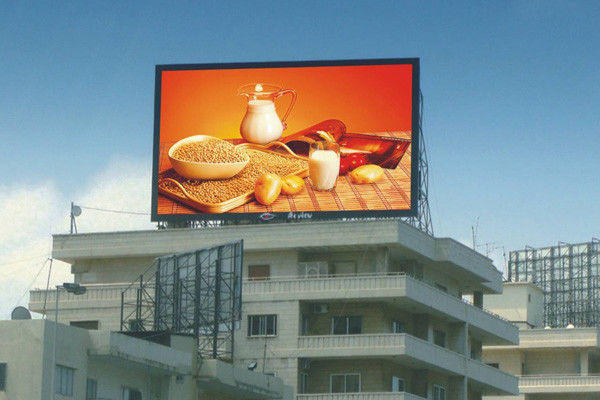

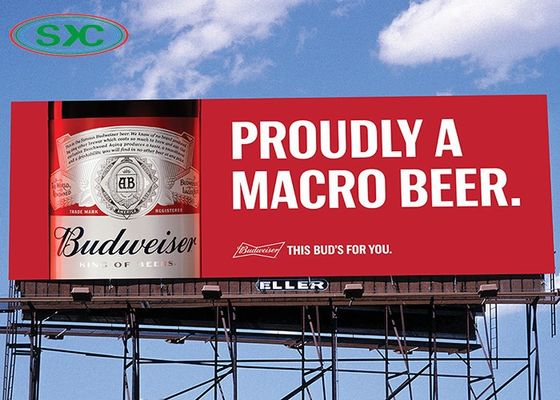

Our Project:
Package and Delivery:
____________________________________FAQ_________________________________________
1.Except this model, are there any other models?
---yes, For indoor led screen we have p1.25,p1.56,p1.67,p1.87,p2, p2.5 p3 ,p3.91, p4 ,p4.81, p5 ,p6,p8,p10
For outdoor led screen we have p3,p3.91,p4,p4.81,p5, p5.95,p6,p6.67,p8, p10
2.Are you factory? and your warranty?
yes we are 10 years factory, 2 years warranty and lifetime maintenance.
3.What's the function of your led screen?
It supports videos, flash, WAV/MIDI, PPT, images and so on.
4.What's your delivery time?
Wthin 15-25 days after receiving deposit.
5.What's your package and shipping way?
Goods are packed with wooden case or flight case; delivered by air or sea.
Welcome to visit our website and inquire us more info,waiting for you all the time!!!
