Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China ,Guang Dong |
| Brand Name: | Shichuangxinke |
| Certification: | CE RoHS FCC CCC TUV UL |
| Model Number: | SCXK-P16 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden box flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after deposit payment received |
| Payment Terms: | L/C, T/T, Western Union, D/A, D/P, MoneyGram |
| Supply Ability: | 5000sqm per month |
| Pixel Pitch: | 16mm | Pixel Configuration: | 1R1G1B |
|---|---|---|---|
| Scanning Mode: | Static Full Color | Module Size: | 256x256mm |
| Cabinet Size: | 1024x1024mm | Application: | Stadium,airport,shopping Mall,street Advertising |
| LED: | DIP | Warranty: | 2 Years |
| Highlight: | full color led signs outdoor,full color outdoor led display |
||

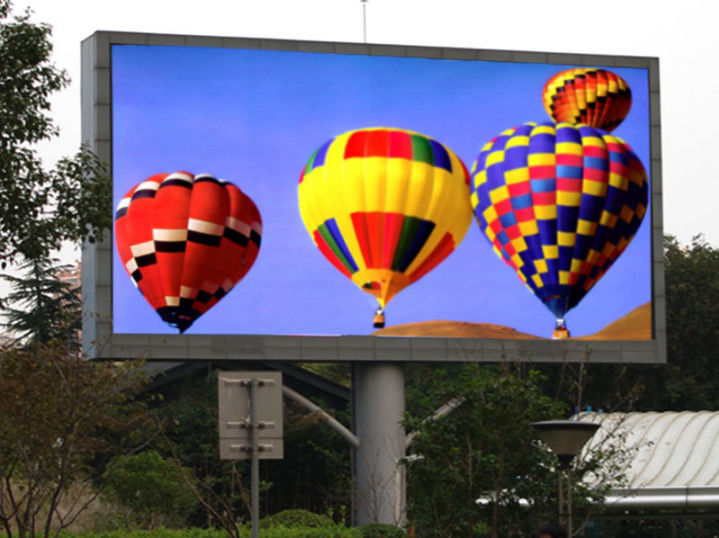

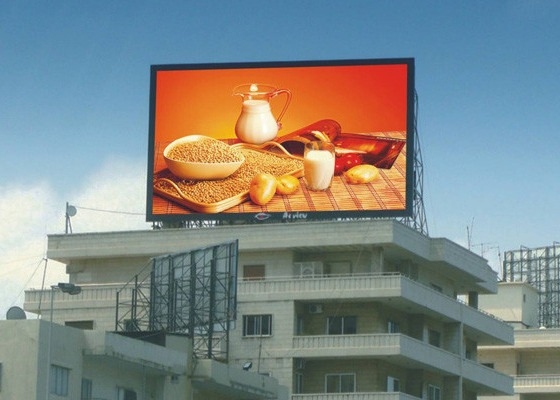

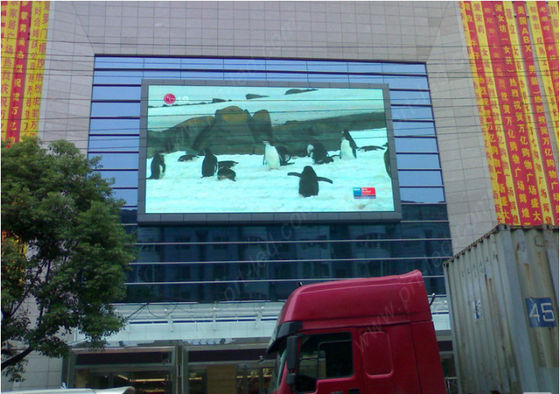

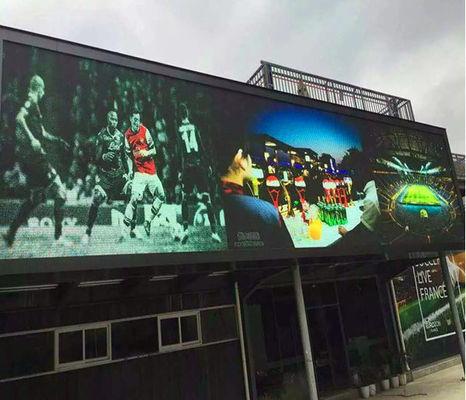

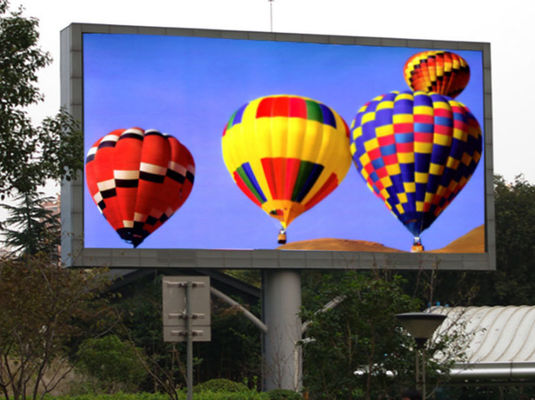

DIP P16 Outdoor Full Color LED Message Display Sign Screen
Trade terms:
1. Hardware: LED screen and video controlling system
2. Technical material: English version user manual, installation manual, and maintenance manual
3. Service: Provide free technology support by phone and e-mail
4. 4 years guarantee
5. Delivery: 15 days
6. Packing: Anti-shaking wooden package or Air Flight Case
7. Transportation: By sea or air or Express
Our service
1. Your inquiry about our products or prices will be responded within 24 hours
2. The size can be changed according to your requirements.
3. What we show are some current models, welcome to give us your own ideas.
4. Protect your sales area, design ideas and all private information
5. (Top quality) + (Reasonable price) + (Responsible after-sales service) = (Success and victory)
Specifications :
| outdoor DIP P16 | |||||
| Resolution/mm | 16 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 3906pixel/m² | ||||
| Module resolution | 16x16 | ||||
| Module size/mm | 256x256MM | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/㎡ | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/4 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
Other products:
Indoor fixed LED screen: P2.5, P3, P4, P5, P6, P8, P10
Indoor rental LED screen: P3, P3.9, P4, P4.8, P5, P6
Outdoor fixed LED screen: P5, P6, P8, P10
Outdoor rental LED screen: P3.9, P4.8, P5, P6, P6.25, P8, P10
Small pitch LED screen: P1.6, P1.9
Front service maintenance LED screen: P6.67, P8, P10
Stadium perimeter LED screen: P8, P10
LED poster player: P2.5, P3, P4, P5, P6, P8, P10
