Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE,ROHS ,FCC,UL ISO2001 |
| Model Number: | SCXK-P3 |
| Minimum Order Quantity: | 1sqm can be available |
|---|---|
| Price: | negotiation |
| Packaging Details: | the led display can be packaged with wooden box,paper box,flight case |
| Delivery Time: | 7-10days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/P, D/A, L/C |
| Supply Ability: | 1000sqm/month. we can make the led display on time |
| Cabinet Size: | 960mmx960mm | Display Color: | 16.7million |
|---|---|---|---|
| Drive Mode: | 1/16 Scan, 1/32scan | Module Size: | 192mm X192mm |
| Color: | Full Color | Warranty: | 3 Years |
| Led Lamp: | Nationstar | ||
| Highlight: | rgb led screen,full color outdoor led display |
||
Advertisement P3 Rgb Led Display Full Color Nationstar Led Lamp CE Rohs FCC certification
Quick detail
1 Easy installation and maintenance.
2, Long durability and high reliablity
3, high definition and high brightness.
4. CE,Rohs, FCC certification will be available
The detailed parameter
| The indoor P3 full color led display parameter as follows. | |||||||||
| LED Lamps | Type | SMD2121(High Brightness LEDs) | |||||||
| LED Standard | Real Pixel(1R1G1B) | ||||||||
| Red Wavelength | 625-630nm | ||||||||
| Green Wavelength | 515-530nm | ||||||||
| Blue Wavelength | 465-475nm | ||||||||
| LED Module | Pixel Pitch | 3mm | |||||||
| Module Size | 192mm x192mm | ||||||||
| Module Resolution | 64*64dots | ||||||||
| LED Cabinet | Cabinet Size | 768mmX768mm | |||||||
| Cabinet Resolution | 256pixels *256pixels | ||||||||
| Cabinets Material | Sealed Iron Cabinet | ||||||||
| LED Display | Pixel Density | 40000pixels/sq.m | |||||||
| Drive IC | MBI5024 | ||||||||
| Power Supply | Series connection | ||||||||
| Brightness | >7500cd/sqm | ||||||||
| Display Color | 16.7million | ||||||||
| Viewing Angle | 160°(Horizontal),110°(Vertical) | ||||||||
| Best Viewing Distance | 5m~200m | ||||||||
| Max Power Consumption | 600 w/sq.m | ||||||||
| Average Power Consumption | 300 w/sq.m | ||||||||
| Weight | 40kgs/sq.m | ||||||||
| Refresh Rate | 2000hz | ||||||||
| Input Voltage | AC220V/50H or AC110V/60H | ||||||||
| Output Voltage | DC5V,40A | ||||||||
| Grey Scale Levels | 16bit | ||||||||
| Display Colors | R(1024) x G(1024) x B(1024) | ||||||||
| MTBF | 10,000 hours | ||||||||
| Life-span | 100,000 hours | ||||||||
| Protection Level | IP67 | ||||||||
| Failure percentage of leds | less than 0.0003 | ||||||||
| Working Temperature | -25℃~65℃ | ||||||||
| Drive Mode | 1/8 scaning | ||||||||
| Working Humidity | 10%~99% | ||||||||
Competitive after-sales service
We can provide 24 hours on-line service . 3 years warranty, more than 10 years lifeuse .If you have any new detailed requirements,
we will make the better solution and pricelist to you. It's our honor to have this chance to service you.

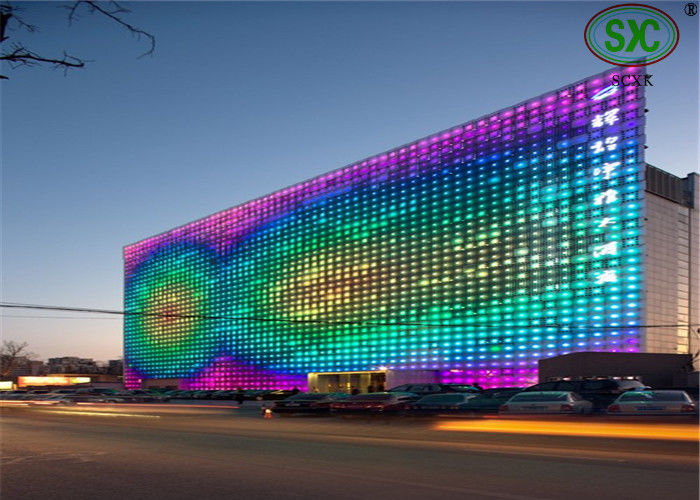

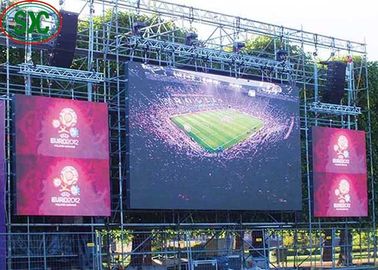

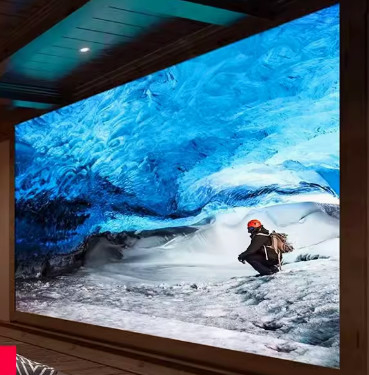

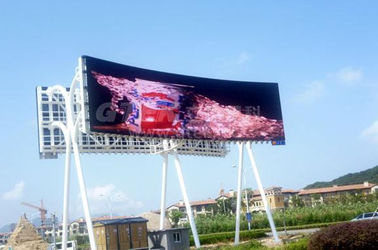

Project case as follows
If we can confirm some order under 100sqm .within 7-10days, we can finish all the production and arrange the shipment for you.Every pieces of the led display will be through the strict test before shipment .And guarantee 100% quality for you.In addition,we will send 3% spare parts for you.That can guarantee no any trouble for your future usage.
For building the good reputation,just say only is not suitable,we must do it to prove ourself,every course is strict from the beginning
we buy material,our engineer inspect the quality of material,even the smallest component,what's more,they will guide workers to produce,
once they found the bad point,the products will be done poorly done work over again in the shortest time,they will not stop to test every point
| the outdoor full color led display module ( smd and dip are available) | |||||
| Number | Drive mode | Moduel size | Resolution | Led standard | pixel density |
| P4 | 1/8 scan | 256x128mm | 64x32 | 3in1 | 62500 |
| p4.81 | 1/13scan | 250x250mm | 52x52 | 3in1 | 43222 |
| p5 | 1/8 scan | 160x160mm | 32x32 | 3in1 | 40000 |
| P6 | 1/8 scan | 192x192mm | 32x32 | 3in1 | 27778 |
| P8 | 1/4scan | 256x128mm | 32x16 | 3in1 | 15625 |
| P10 | 1/4scan | 160x160mm | 16x16 | 3in1 | 10000 |
| P12 | 1/4scan | 192x192mm | 16x16 | 3in1 | 6944 |
| P16 | static scan | 256x256mm | 16x16 | 3in1 | 3906 |
| P20 | static scan | 320x160mm | 16x8 | 3in1 | 2500 |
| P25 | static scan | 200x200mm | 8x8 | 3in1 | 1600 |
| P31.25 | static scan | 250x250mm | 8x8 | 3in1 | 1024 |
Just feel free to contact us for more information.
Contact Person: Nora
Tel: +8617264502421
