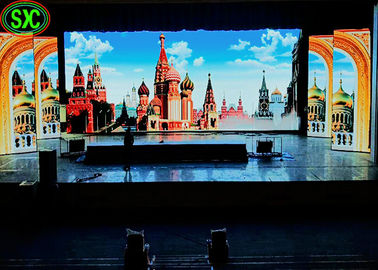

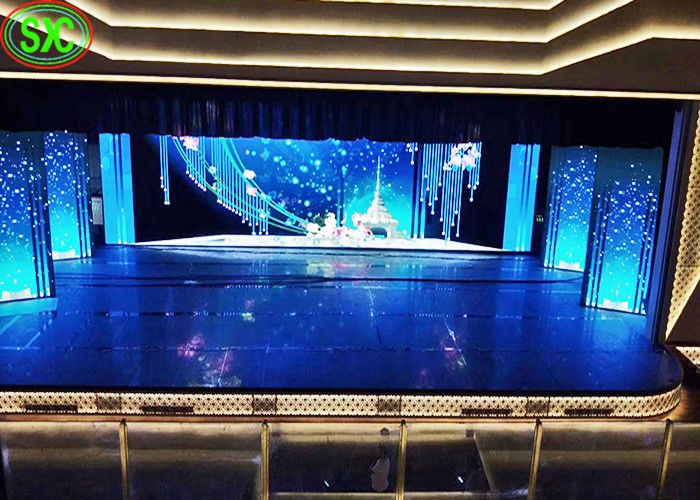

Customised Indoor Full Color LED Display Rental high refresh rate IC MBI5153



Customised Indoor Full Color LED Display Rental high refresh rate IC MBI5153



SHENZHEN SCXK Electronic CO., LTD. was established in 2005, is a leading  LED display manufacturers, with modern management mode of the company's main production of  indoor and outdoor full-color module and the whole screen, and series of peripheral products LED display sales, SCXK is given priority to with foreign markets, 98% of all goods exported to foreign markets.



In today's market turmoil,our company takes the good faith management, we take customers in the first place,think what customers really need,do what customer really want.we focus on specialization market - advertising and brand and entertainment, sports venues, large activities, provide forms for the LED application product solutions and high quality products.



♦ Product specification



				Specifictions
LED Lamps	Type			SMD2121(High Brightness LEDs)
	LED Standard			Real Pixel(1R1G1B)
	Red Wavelength			625-630nm
	Green Wavelength			515-530nm
	Blue Wavelength			465-475nm
LED Module	Pixel Pitch			2.5mm
	Module Size			160mx160m
	Module Resolution			64*64dots
LED Cabinet	Cabinet Size			480mmX480mm
	Cabinet Resolution			192pixels *192pixels
	Cabinets Material			die casting aluminum
LED Display	Pixel Density			160000pixels/sq.m
	Drive IC			MBI5153
	Power Supply			Meanwell
	Brightness			1000cd/sqm
	Display Color			16.7million
	Viewing Angle			110°(Horizontal),50°(Vertical)
	Best Viewing Distance			1.5m~160m
	Max Power Consumption			600 w/sq.m
	Average Power Consumption			300 w/sq.m
	Weight			6Kg/sq.m
	Refresh Rate			3840hz
	Input Voltage			AC220V/50H or AC110V/60H
	Output Voltage			DC5V,40A
	Grey Scale Levels			1024
	Display Colors			R(1024) x G(1024) x B(1024)
	MTBF			10,000 hours
	Life-span			100,000 hours
	Protection Level			IP45
	Failure percentage of leds			less than 0.0003
	Working Temperature			-25℃~65℃
	Drive Mode			1/32 scaning
	Working Humidity			10%~99%
Control System	Control method			Synchronization & Asynchronization
	Control System			LINSN Control System (sender,receiver,HUB with 75 interface,software)
	Software			LED Studio (LINSN)
	Input Signal			MPG/MPEG/MPV/MPA/AVI/VCD/SWF/RM/RA/RM/ASF/BMP/GIF/PCX/TXT/DOC.etc
	PC Operating system			Microsoft Windows 7, 98, 2000, XP and Vista





 Methods for Quality Assurance



a. Aging

100% fully test

Condition: 72 hours with 1024 gray level

b. Vibration Testing

Condition: 3-5 min up and down in 5mm range



 Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,Automatic Glue- pouring Machine, Solder Paste Printing Machine,Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.



Payment and delivery







1) T/T, 30% deposit, 70% before shippment.
2) 100% Western Union in advance.







♦ Why choose us:



Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.







♦ FAQ



What kind of payment terms you can accept ?

We can accept T/T and Western Union.



What about your Led Display quality ?

Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of

our products continuity.



What is your delivery time ?

Within 7-35 days according to your area and quantity.



Is your LED display competitive ?

Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure

our led display’s competitiveness.
