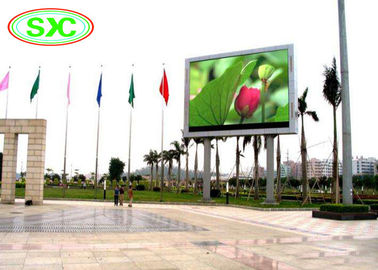

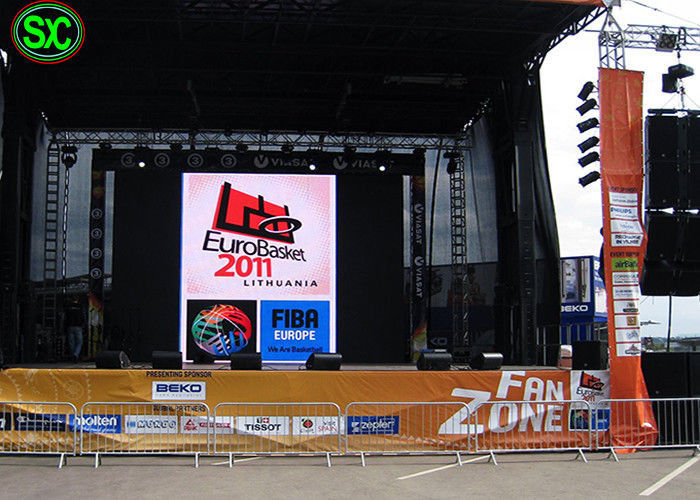

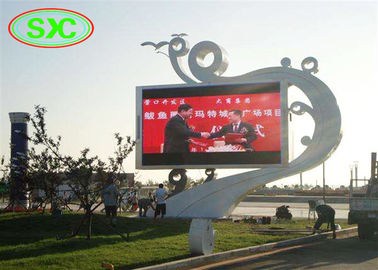

IP65 Rgb Smd / Dip Video Led Column Display,10mm Led Screen For Outdoor Advertising

IP65 Rgb Smd / Dip Video Led Column Display,10mm Led Screen For Outdoor Advertising

  • IP65 Rgb Smd / Dip Video Led Column Display,10mm Led Screen For Outdoor Advertising
  • IP65 Rgb Smd / Dip Video Led Column Display,10mm Led Screen For Outdoor Advertising
  • IP65 Rgb Smd / Dip Video Led Column Display,10mm Led Screen For Outdoor Advertising
IP65 Rgb Smd / Dip Video Led Column Display,10mm Led Screen For Outdoor Advertising
Product Details:
Place of Origin: CHINA
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P10
Payment & Shipping Terms:
Minimum Order Quantity: 1sqm
Price: negotiation
Packaging Details: plywood case,flight case, you choose what you like.
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Pitch: 10mm Pixel Density: 10000/m2
Drving Mode: Constant Current 1/4 Scan Led Packages: SMD/DIP
Module Size: Smd 320*160mm/dip 160*160mm Pixel Configuration: 32*16dots/16*16dots
Cabinet Size: 960*960mm Cabinet Material: Sealed Iron Cabinet
High Light:

full color led screen

,

led curtain screen

IP65 Rgb Smd / Dip Video Led Column Display,10mm Led Screen For Outdoor Advertising

Production Introduction:
1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.
2. Nice appearance and simple structures.
3. Jointed correctly, being installed & dismounted by one person without tool.
4. Humanized operating interface with breakdown indicator lights, easy to maintain.
5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.

                            The  parameter specification

Pixel pitch 10mm
Pixel density(M2) 10000
Pixel configuration 1R1G1B
Cabinet size 960mm×960mm
Cabinet resolution 96×96=9216dots
Cabinet material steel
Number of power supplies 5V/60A/6piece
Red lamp SMD2828; 625nm,700 mcd
Green lamp SMD2828; 525nm,1500 mcd
Blue lamp SMD2828; 465nm,350 mcd
Module resolution 32×16dots/16*16fots
Module size 320mm×160mm/160mm×160mm
Power consumption (single module) 5V,108W
Brightness 6000-8000cd/m²
Gray scale 4096
Color 1670 million
View angle horizontal:120°,vertical:110°
Optimal viewing distance 10—150m
Scan mode 1/4;real pixel
Frequency(max) 4000Hz
Input voltage 110V/60Hz,220V/50Hz;
Power consumption (max) 900W/ m²
Power consumption (average) 400W/ m²
Lifespan 50000h
Working temperature -20℃— +50 ℃
Operating humidity range 10% — 90%RH
Waterproof rating IP65


Buying Guides
In order to offer you a suitable solution, please follow the guides bellowing :
1,Star effect or video effect which you need.
2,Dimension (Width and Height)
3,Location of installation. (picture is best)
4,Purpose. ( what are you going to do with the LED Curtain)

After-Sale Service
1. Three year warranty , Lifetime free maintenance.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on
6. Special service for big project, such as stadium, exhibitions, squares and so on.
