Die Cast Aluminum Rental Waterproof P3.91 LED Billboard 1/16 Scan Mode IP43 Suitable For Advertising Posters

Die Cast Aluminum Rental Waterproof P3.91 LED Billboard 1/16 Scan Mode IP43 Suitable For Advertising Posters

Brand Name: SCXK
Model Number: SCXK-P3.91
MOQ: negotiation
Price: negotiation
Payment Terms: T/T, Western Union, L/C, D/A, D/P, MoneyGram
Supply Ability: 3000 sqms/month
Detail Information
Place of Origin:
China(Mainland)
Certification:
CE,ISO,FCC,UL
Color:
Full Color
Control System:
LSN
Module Size:
250*250mm
Cabinet Size:
500*500mm
Working Voltage:
DC5V
Resolution:
64*64
Waterproof:
IP43
Pixel Density:
65410dots/sqm
Packaging Details:
Wooden and flight cases,it's up to you.
Highlight:

led digital billboards

,

led advertising billboards

Product Description


P3.91 Full Color LED Billboards 1/16 Scan Mode IP43 for Advertising Poster


Quick details:

*Light Weight
*Good Heat Dissipation
*Low Power Consumption
*Convenient Installation
*Easy Move

Info about us:

SCXK has been focusing on the LED field since 2005. We are a leading manufacturer and supplier of full-color indoor and outdoor LED displays, rental LED displays and LED module technology solutions in Shenzhen, Guangdong, China.
We have a professional team and a range of equipment. Our products are exported overseas every year and are popular in many countries. They can also be found in many domestic applications, such as stations, airports, churches, shopping malls, commercial centers, concerts, etc.
From stadiums to TV stations, conferences and events, SCXK Electronics provides a variety of eye-catching and energy-saving LED screen solutions for the global industrial, commercial and government markets.

P3.91 Full Color LED Billboards
Resolution/mm3.91
Pixel configuration1R1G1B
Pixel density/pixels/m²65410/square meter
Module resolution64x64mm
Module size/mm250x250mm
View distance4-300m
Single point brightness adjustCan be added
Single point color adjustCan be added
White balance brightness1800cd/square meter
Color temperature6500K-9500K
Horizontal view angle120(degrees)
Vertical view angle60(degrees)
Signal Process bit10 or 16bit
Grey process1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distancesInternet cable:100m, multimembrane:500m, monofilm:2km
Driving mode

alternating driving current

Scanning mode1/16 SCANNING
Frame rate60Hz
Refresh frequency>3000Hz
Control mode

Asynchronous,3G,4G,Wifi

Brightness adjusted rangeManual, automatic operation, stepless continuous adjusted
255 steps. No grey loss
Out of control point<1/10000
Aging hours≥72hours
Mean Time Between Failure>5000hours
Life time100000hours
Life-all-white(brightness halving)50000hours
Environment temperature rangeOperating temperature range: -20-45℃
Self-check technologyLED spot self-check, communications check, power check,
temperature monitor(need customization)
Remote monitoringRemote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)
Software environmentWindowsNT,Windows1999,WindowsXP
Luminous point width between centresDeviation<3%
Brightness uniformity<10%
WaterproofIP43
Color uniformity(chromaticity coordinate)±0.003
Power supply requestAC85-264V(50Hz-60Hz)
Contrast(1000:1)
System protectionMoistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working)working:10-95%
Humidity(storing)storing:10-95%


____________________________________FAQ____________________________________

Q1: What should I do if the screen has problems?
A1: We will provide some spare parts with the goods (details as above), including LED, power supply, module, wire, etc., which are enough for you to replace within two years.
Q2: What is your warranty period?
A2: We provide a two-year warranty for our products. This means two years of factory labor and parts are free, but customers need to pay the round-trip shipping cost of damaged parts.
Q3: What fields can LED screens be applied to?
A3: LED screens can be seen everywhere in life. Mall advertisements, bank queuing systems, taxi top signs, stage background displays, etc.

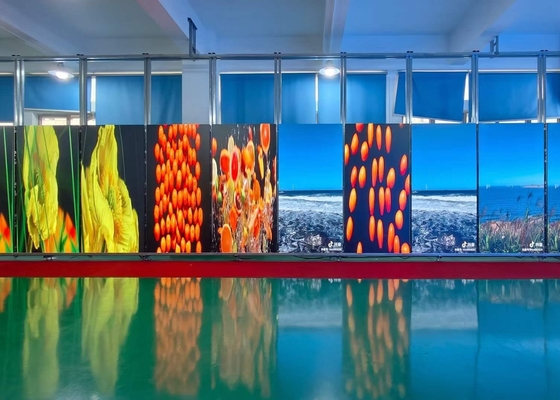

Die Cast Aluminum Rental Waterproof P3.91 LED Billboard 1/16 Scan Mode IP43 Suitable For Advertising Posters 0

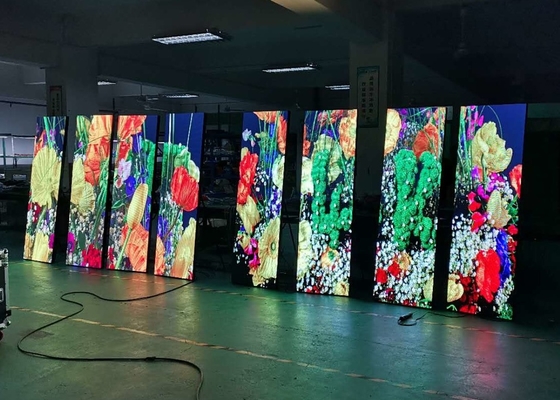

Die Cast Aluminum Rental Waterproof P3.91 LED Billboard 1/16 Scan Mode IP43 Suitable For Advertising Posters 1

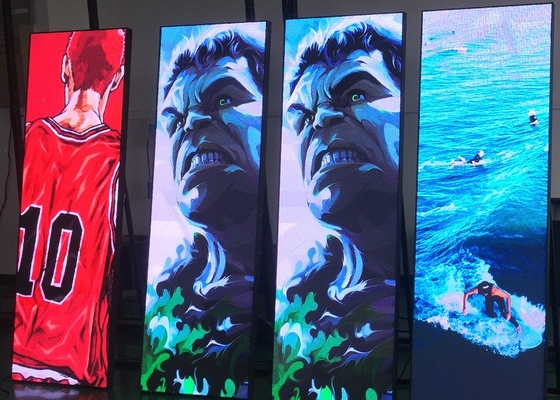

Die Cast Aluminum Rental Waterproof P3.91 LED Billboard 1/16 Scan Mode IP43 Suitable For Advertising Posters 2

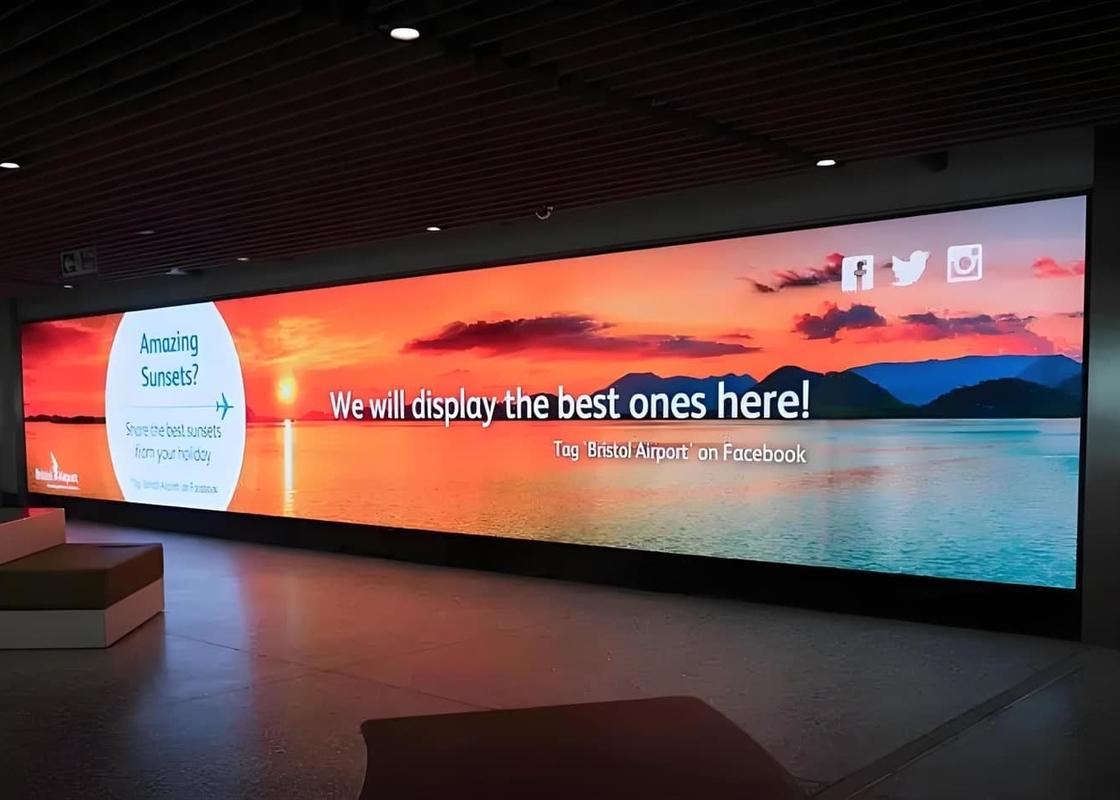

Die Cast Aluminum Rental Waterproof P3.91 LED Billboard 1/16 Scan Mode IP43 Suitable For Advertising Posters 3

Die Cast Aluminum Rental Waterproof P3.91 LED Billboard 1/16 Scan Mode IP43 Suitable For Advertising Posters 4



Packaging and shipping

Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.
