Home ProductsOutdoor Full Color LED Display

Advertising Outdoor Full Color LED Display 10MM Pixel Pitch 2 Years Warranty

Advertising Outdoor Full Color LED Display 10MM Pixel Pitch 2 Years Warranty

    • Advertising Outdoor Full Color LED Display 10MM Pixel Pitch 2 Years Warranty
    • Advertising Outdoor Full Color LED Display 10MM Pixel Pitch 2 Years Warranty
  • Advertising Outdoor Full Color LED Display 10MM Pixel Pitch 2 Years Warranty

    Product Details:

    Place of Origin: China(Mainland)
    Brand Name: SCXK
    Certification: CE,ISO,FCC,UL
    Model Number: SCXK-P10

    Payment & Shipping Terms:

    Minimum Order Quantity: 5sqms
    Price: 380-500 USD/sqm
    Packaging Details: Wooden and flight cases,it's up to you.
    Delivery Time: 12-15 working days after receiving your down payment.
    Payment Terms: T/T, Western Union
    Supply Ability: 5000 sqms/month
    Contact Now
    Detailed Product Description
    Pixel Pitch: 10MM Brand Name: SCXK Full Color LED Display
    Module Size: 320*160MM Cabinet Size: 640*640MM
    Color: Full Color Warranty: 2 Years
    Life Time: 100000Hours Aging Time: ≥72 Hours
    Control System: Nova,Linsn Application Places: Shopping Mall,Commercial Centure,Airports,Stations,Roads...
    High Light:

    full color led signs outdoor


    outdoor full color led screen

    Advertising Outdoor Full Color LED Display By The Road P10 Stud Ip68


    Product features


    1. the release of information is simple and convenient
    LED display is a computer display, through a data line connection or wireless communication and computer connection, as long as the computer in simple setup, you can used to publish the advertisement content, both for the convenience and fast.
    2. the form of advertising
    LED display usually set up the flow of people and more public places, transportation routes, in an intuitive, image, vivid forms of advertising to attract viewers' attention to the initiative, the scope is wider, than traditional media have the compelling viewing. In addition to outdoor advertising, but also to publish information.
    3. energy saving and environmental protection
    LED display of energy saving and environmental protection, all-weather work, fully meet the harsh outdoor environment, with anti-corrosion, waterproof, moisture-proof, lightning protection, the overall seismic performance is strong, high price, display characteristics of the good.

    Outdoor rental screen mainly use for outdoor events, stage background, or other kinds live show. Portable and practical always bring customer convenient and comfortable experience.

    Specifications :

    Advertising Outdoor Full Color LED Display P10
    Resolution/mm 10
    Pixel configuration 1R1G1B
    Pixel density/pixels/m² 10000/square meter
    Module resolution 32*16mm
    Module size/mm 320*160mm
    View distance 10-300m
    Single point brightness adjust Can be added
    Single point color adjust Can be added
    White balance brightness >8000cd/square meter
    Color temperature 6500K-9500K
    Horizontal view angle 120(degrees)
    Vertical view angle 60(degrees)
    Signal Process bit 10 or 16bit
    Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
    Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
    Driving mode Constant driving current
    Scanning mode static full color SCANNING
    Fresh rate 60Hz
    Refresh frequency >3000Hz
    Control mode Computer synchronous
    Brightness adjusted range Manual, automatic operation, stepless continuous adjusted
    255 steps. No grey loss
    Out of control point <1/10000
    Working hours ≥72hours
    Mean Time Between Failure >5000hours
    Life time 100000hours
    Life-all-white(brightness halving) 50000hours
    Environment temperature range Operating temperature range: -20-45℃
    Self-check technology LED spot self-check, communications check, power check,
    temperature monitor(need customization)
    Remote monitoring Remote supervision and control, record potential fault,
    send out warning signs to the operators.(need customization)
    Software environment WindowsNT,Windows1999,WindowsXP
    Luminous point width between centres Deviation<3%
    Brightness uniformity <10%
    Waterproof IP68
    Color uniformity(chromaticity coordinate) ±0.003
    Power supply request AC85-264V(50Hz-60Hz)
    Contrast (1000:1)
    System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
    Humidity(working) working:10-95%
    Humidity(storing) storing:10-95%


    Mainly applications:

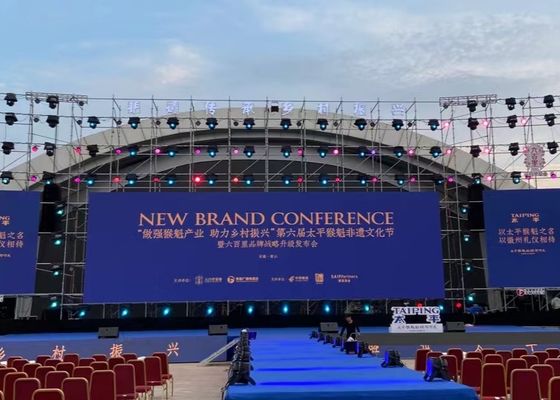

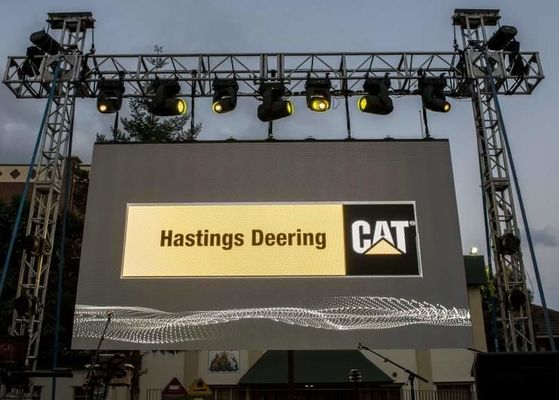

    1 Stage Entertainment: Music shows, concert, bands live shows, gala shows etc.

    2 Events: Conference, product launches, exhibitions, fashion shows, weddings, company opening ceremony etc.

    3 Rental advertising: Shopping mall, super market, restaurant etc.


    After-sales service:

    •Keep you informed about the status of your LED display production process.
    •Take pictures and videos of your LED display for reference after finish production.
    •Arrange shipment and provide trackinguntil the products arrived successfully.
    •All documents provide timely, such as bill of lading, packing list, commercial invoice etc to help customer clear the customs and pick up the LED Display.

    •Guidance service: online remote video training and guidance supported if customers have questions about the installation and usage.
    •Offer installation structure drawing to help customer build the structure, if customer need, we can arrange engineer to your country to guide and assist install the LED Displays if customer could bear the relevant cost.
    •24/7 technical support by online remote control whenever customer need.
    •Free technical training, such as teach customer how to operate the software, how to check the trouble shooting & maintenance the LED display etc.
    •Warranty period:2 years after shipment for standard products, the guarantee time can be longer according to client’s special needs. We are committed to free repair or replacement during warranty and lifetime maintenance.

    •Maintenance terms: response in time, solve problems as soon as possible and ensure to well use. In the Maintenance period, free for all maintenance charges. Under normal use and storage, our company will be responsible for the equipment. If there any failure in product quality, our company will maintain and change the components for FREE. After Maintenance period, only charge the material costs. Life time maintenance.

    Advertising Outdoor Full Color LED Display 10MM Pixel Pitch 2 Years Warranty 0
