P5 Indoor Full Color LED Display Die Casting Aluminum Cabinet Hanging Installed

P5 Indoor Full Color LED Display Die Casting Aluminum Cabinet Hanging Installed

  • P5 Indoor Full Color LED Display Die Casting Aluminum Cabinet Hanging Installed
  • P5 Indoor Full Color LED Display Die Casting Aluminum Cabinet Hanging Installed
  • P5 Indoor Full Color LED Display Die Casting Aluminum Cabinet Hanging Installed
  • P5 Indoor Full Color LED Display Die Casting Aluminum Cabinet Hanging Installed
P5 Indoor Full Color LED Display Die Casting Aluminum Cabinet Hanging Installed
Product Details:
Place of Origin: CHINA
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P5
Payment & Shipping Terms:
Minimum Order Quantity: 1 sqm
Price: negotiations
Packaging Details: flight case or wooden case.
Delivery Time: 7-10 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Module Size: 320x160mm Pitch: 5mm
Pixel: 64x32dots Pixel Configuration: 1r1g1b
Pixel Density: 40000/m2 Driving Mode: Constant Current 1/16 Scanning
Cabinet Size: 640x640mm Warranty: 3 Years
High Light:

led full color screen

,

indoor led display screen



P5 Die Casting Aluminum Cabinet Indoor Rental Led Display Screen/Hanging Installed Screen



Welcome to visit our web:www.scxled.cn



Product description:

1. The first level LED chip from Taiwan Epistar.

2. With pure golden wire connection in LED.

3. Grand A row material for module frame and mask.

4. 4 layers PCB and copper plating thickness > 18mil.

5. Ag alloy solder paster to ensure good soldering on PCB.

6. Stainless steel screws when assembly.

7. Disassembly and assembly are quick and easy.

8. Three years warranty.



Widely used in the indoor environment , such as hall, TV studio, hotel, theater ,meeting room, school , hospital, gymnasium, advertising, bar and restaurant etc., to display text , graphic, picture and video etc.



Indoor full color led display screen technical parameter
Items P5 indoor led display
Pitch size 5mm
Module size 320mm*160mm
Module pixel(dots) 64dots*32dots
Pixel configuration 1Red,1Green,1Blue
LED chip Epistar
Color scale 65536degree/16777216colors
Pixel density 40000pixels/square meter
View angle(H/V) ≥120/120degree
Brightness ≥1200cd/square meter
Brightness adjustment 64 level automatic or manual
View distance 5--100m
Power consumption 350-950W/square meter
Net weight less than 45kg/square meter
Operating temperature —25°C~+60°C
Operating humidity 10%—95%RH
Life time ≥100,000hours
Out of control dot ≤1/10,000
Whole Display Flatness ≤1mm Juncture
Exchange frame speed >150frames per second
Refresh frame frequency 600Hz
Control distance 120m (without repeater), single mode fiber:20km, multi mode fiber: 500m
Power 110V/220V±15% 50Hz
Operating system Windows98/Me/2000/Xp
Drive mode constant current driving, 1/8 scan
Display mode VGA640X480—VGA1600X1024
Protections for outdoor display IP54
Maintenance way Rear access
Accepting signal PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI

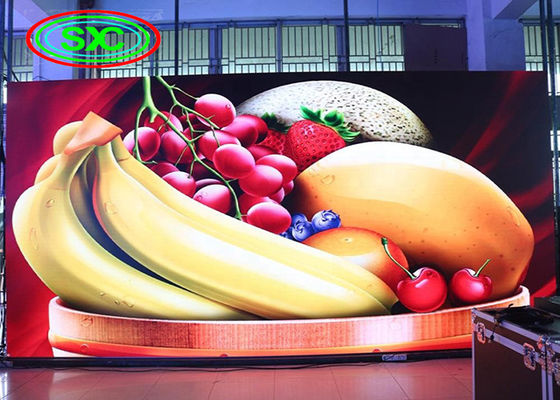

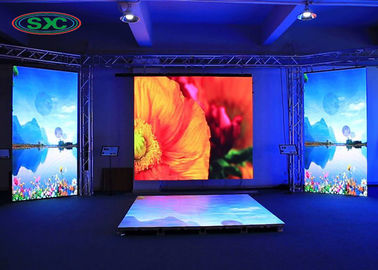

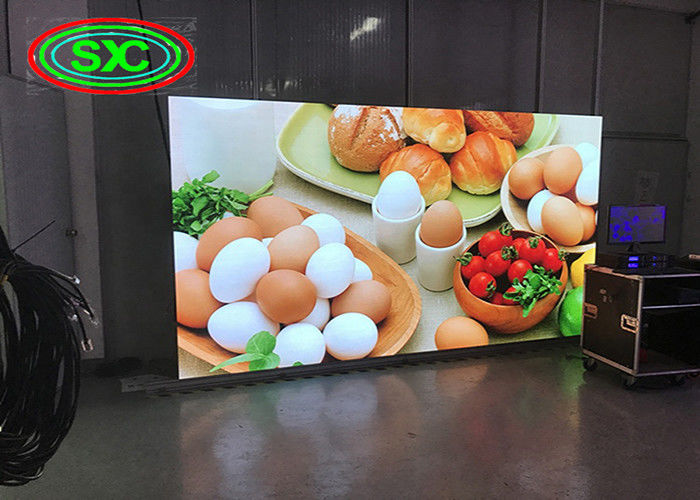

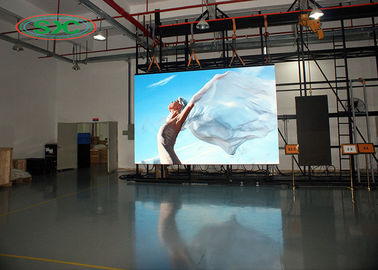

Installation detailed show

P5 Indoor Full Color LED Display Die Casting Aluminum Cabinet Hanging Installed 0



Product item
Many other hot product, welcome to visit our company!
P5 Indoor Full Color LED Display Die Casting Aluminum Cabinet Hanging Installed 1
P5 Indoor Full Color LED Display Die Casting Aluminum Cabinet Hanging Installed 2



Company profile

P5 Indoor Full Color LED Display Die Casting Aluminum Cabinet Hanging Installed 3

P5 Indoor Full Color LED Display Die Casting Aluminum Cabinet Hanging Installed 4



Certificate
P5 Indoor Full Color LED Display Die Casting Aluminum Cabinet Hanging Installed 5

Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
P5 Indoor Full Color LED Display Die Casting Aluminum Cabinet Hanging Installed 6


Buying Guides

In order to offer you a suitable solution, please follow the guides bellowing :
1,Star effect or video effect which you need.
2,Dimension (Width and Height)
3,Location of installation. (picture is best)
4,Purpose. ( what are you going to do with the LED Curtain)

After-Sale Service
1. three year warranty , Lifetime free maintenance.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on
6. Special service for big project, such as stadium, exhibitions, squares and so on.



FAQ
Q1. Can I have a sample order for Indoor Full color LED Advertising Display?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Our average Production time is 7-10 days, after receiving the deposit.we will try our best to meet your demands
Q3. Do you have any MOQ limit for Indoor Full color LED Advertising Display order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Indoor Full color LED Advertising Display?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on Indoor Full color LED Advertising Display product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
Q:Why Choose us?
We are direct factory manufacturer for led display, so quick delivery is no problem.
More professional, best service,100% QC inspection before shipment.
