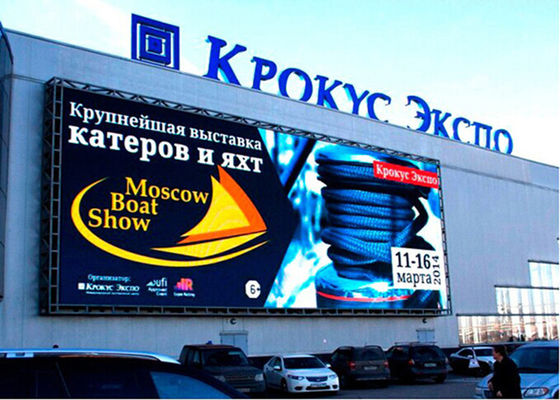

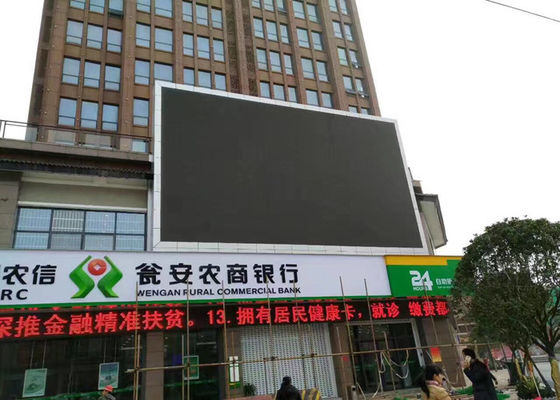

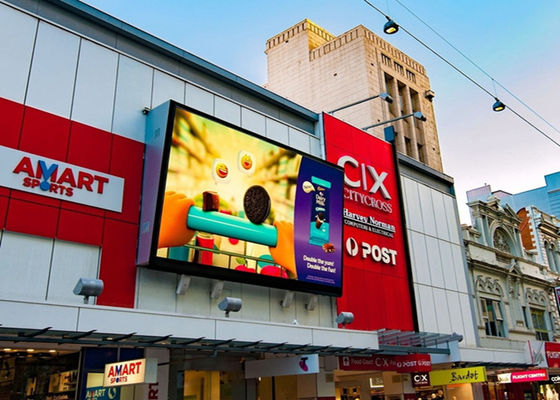

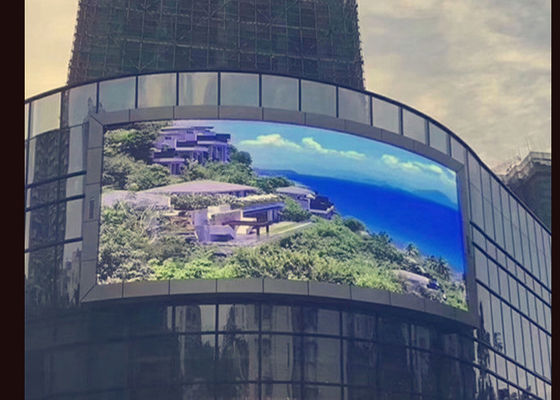

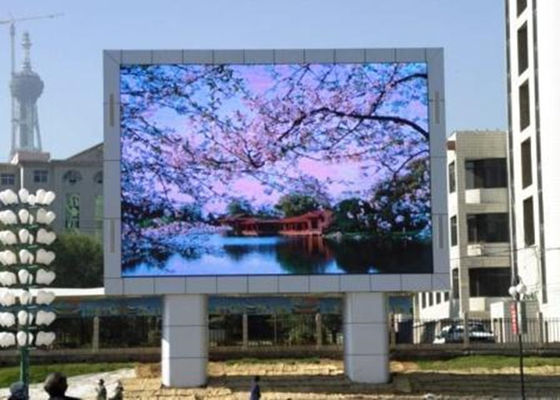

Waterproof Outdoor Full Color LED Display SMD3535 Die Catsing Aluminum Cabinet

Waterproof Outdoor Full Color LED Display SMD3535 Die Catsing Aluminum Cabinet

    • Waterproof Outdoor Full Color LED Display SMD3535 Die Catsing Aluminum Cabinet
    • Waterproof Outdoor Full Color LED Display SMD3535 Die Catsing Aluminum Cabinet
  • Waterproof Outdoor Full Color LED Display SMD3535 Die Catsing Aluminum Cabinet

    Product Details:

    Place of Origin: ShenZhen in China
    Brand Name: SCXK
    Certification: CE/ROHS/FCC/ISO/UL
    Model Number: P10

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: negotiation
    Packaging Details: flight case, wooden case, carton, it is up to you.
    Delivery Time: 7-10 working days after receive your payment
    Payment Terms: Western Union, MoneyGram, D/P, T/T, L/C
    Supply Ability: 5000sqm per month
    Contact Now
    Detailed Product Description
    Pixels: 10mm Tube Chip Color: Full Color
    Led Type: SMD3535 Display Function: Video
    Waterproof: Ip65 Cabinet: Die Catsing Aluminum
    MBI: 5024 Viewing Angle: H:100 V:50
    Optimal Viewing Distance: >=4m Voltage: DC5V
    Brightness: More Than 2000cd/㎡ Pixel Composing: 1 R1G1B
    LED Parameter: R:625-630nm Module: 192*192mm
    Cabinet: 960*960mm

    P4mm Outdoor Full Color LED Signs P4 Outdoor Programmable LED Signs

    Product Description


    Technical parameters UNIT Parametersvalues
    Viewing angle   H140 V120
    Option distance   2-50
    Driving device   2016/5020
    Light Sourse   Epristar
    Every square metre module   54
    Maximum power   1150
    Frame Frequency   ≥60
    Refresh frequency   ≥500
    Equilibrium brightness   ≥1500
    Working environment temperature)   -10~60
    Working environment humidity   10%~70%
    Display working voltage   AC46~54HZ,220V±15%/110V±15%
    Colour temperature   6500K-11500K
    Gray scale/color   ≥16.7M color
    Input signal   RF S-Video RGB etc
    Control system   PCTVnonlinearity card,DVIdisplay card,Linsn control system
    Mean free error time   >5000
    Life   100000
    Lampfailure frequency   <0.0001
    Antijam   IEC801
    Safety   GB4793
    Resist the electricity   1500Vlast 1min No breakdown
    Steel box weight   7.5(standard steel box)
    Earth leakage current   3.5mA
    IPrating   The back IP45,The front IP45
    Steel box size   L384XH384X100

    Front or rear maintenance option

    Front or rear maintenance option, realizing module, power supply and receiving card front or rear maintenance, saving your maintenance cost.
    Energy Saving≥50%, Environment Protection

    Adopt top high brightness with low power consumption LED lamp,energy saving≥30%, if adopt 28 kinds of main patent technique, entire energy saving ≥50%, environment protection.
    Pioneer in outdoor mature HD LED Display, all advanced specifications 2 years earlier than others, successful cases around the world.

    Free Back Service Path, Excellent Display Effect

    Adopt dual service of black kingkong series among core techniques, free back service path for all kinds of installation surroundings.
    Broadcast level color scale, color temperature and brightness adjustable intelligentizedly, smooth color, high color ratio, nature pictures.

    IP65, Fast Installation and Maintenance

    IP65 for modules, meets outdoor naked installtion requirements.
    Design based on module, which saves installation and maintenance cost, fast speed, maintenance with power on.
    Waterproof Outdoor Full Color LED Display SMD3535 Die Catsing Aluminum Cabinet

    How to protect power supply?
    Electrical peaks can put more force on the electrical components which will decrease life time .
    it is wise to install a protection (voltage stabilizer) that can control the peaks.
    What is the life time for a LED screen?
    The life time for the LED screen is basically over 100,000 hours, but it depends how the client is taking care of his LED screen
    and how it is used. When a LED Screens´ life time gets to 100,000 hours, it means that the brightness of the LED lamps of the
    LED screen is about 50% off as compared to the original brightness depending on several factors that will enlarge a LED
    screen´s life time or reach 100,000 hours
    How about the quality guarantee of your products?
    We have manufacturing indoor advertising small led display screen for many years and can claim to produce a high quality that no competitor has yet succeeded in producing at the price quoted. The price we quoted leaves us with only the smallest of margins. They are in fact lower than those of our competitors for goods of similar quality.
    What is your warranty?
    3 years,


    Our Service:
    1)Your inquiry related to our products or price will be replied in 24hrs
    2)any your customized lightings we can help you to design and put into product
    3)Distributer ship are offered for your unique design and some our current models
    4)Protection of your sales area,ideas of design and all your private information
    5)Top Quality+Reasonable Price+Responsible After Service=Successful & Win
    Trade Terms:
    1.Payment:T/T,30% deposits before production,70% balance to be paid before deliverying
    2.Shipping freight are quoted under your requests
    3.Shipping port:shenzhen
    Hope we can further together and work together
