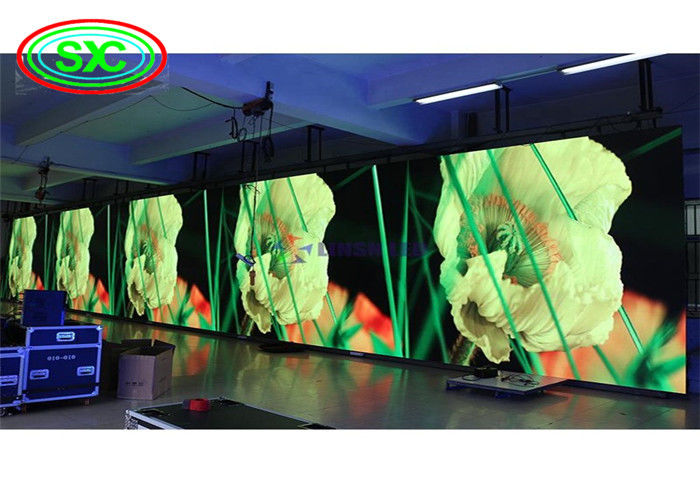

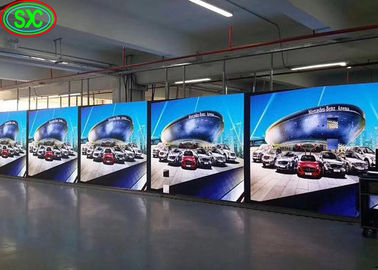

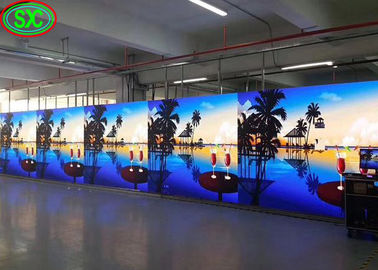

1500cd Brightness Rental LED Display P3.91/P4.81 High Resolution Video Wall Proejction

1500cd Brightness Rental LED Display P3.91/P4.81 High Resolution Video Wall Proejction

    • 1500cd Brightness Rental LED Display P3.91/P4.81 High Resolution Video Wall Proejction
    • 1500cd Brightness Rental LED Display P3.91/P4.81 High Resolution Video Wall Proejction
  • 1500cd Brightness Rental LED Display P3.91/P4.81 High Resolution Video Wall Proejction

    Product Details:

    Place of Origin: China
    Brand Name: SCX
    Certification: CE,ROHS,FCC,SASO
    Model Number: P3.91

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SQM
    Price: USD 600-2000
    Packaging Details: Flight Case , Size: 60x62x50cm, Wooden Case, Size:70x65x55cm
    Delivery Time: 5-15 working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 2000 sqm per month
    Contact Now
    Detailed Product Description
    Module Size: 250mm X 250mm Module Resolution: 64mm X 64mm
    Brightness: ≥1500 Cd Led Lamp: Kinglight
    Module Weight: 0.3kg
    High Light:

    led video screen rental

    ,

    rental led display screen

    1500cd Brightness Rental LED Display P3.91/P4.81 High Resolution Video Wall Proejction 0





    Super Hot Selling High Resolution Video Wall Proejction Rental Led Display P3.91/P4.81






    LED Display Features:
    1. the rerefresh rate is very high: over 3840hz,,  no any flickering when you shot video any time.
    2, long life: LED life is up to 100,000 hours (ten years) or more, this parameter generally refers to the design life.
    3, the viewing angle is large: the indoor viewing angle can be greater than 160 degrees, and the outdoor viewing angle can be greater than 120 degrees. The size of the viewing angle depends on the shape of the LED light emitting diode.
    4, the screen area can be as small as less than one square meter, and as large as several hundred, thousands of square meters;
    5, easy to interface with the computer, support software rich.





    Product Description

    Item Specification
    LED
    Parameters
    Luminous Intensity R:620-630, G:520-535, B:465-475
    Wavelength R:400-500mcd, G:1800-2200mcd, B:350-450mcd
    Test Condition R:25℃,20mA, G:25℃,20mA, B:25℃,20mA
    LED Module Led Type SMD 3 IN 1
    Pixel Pitch 3.91 mm
    LED Shape & Size 2mm SMD 2121
    Encapsulation Type 1R1G1B
    Module Dimension 250mmx250mm
    Module Resolution 64 ×64
    Module Weight 0.20 KG
    Pixel Density 65410
    Driving Mode 1/16
    Module Power Consumption 20 W
    LED Cabinet Cabinet Size 500mm(W)x 500mm(H)/ 500mm(W)x 1000mm(H)
    Cabinet Thickness 70 mm
    Cabinet Resolution 128x128
    Cabinet Material Die Casting Aluminum Cabinet
    Screen Use Rent
    Cabinet Weight 6.5 KG/12kg
    Optical parameters Brightness ≥1500 cd
    Contrast Ratio ≥3000:1
    Single-point Brightness Correction Available
    Single-point Color Correction Available
    Surface Evenness GAP< 1mm
    Color Temperature Condition 3500K~9500K,(can be adjustable)
    Viewing angle 140°(Horizontal),140°(Vertical)
    Gray Scale 16 bit
    Minimum Viewing  Distance 3.91 m
    Brightness Adjustment 0-100% 8 levels
    Power
    Supply
    Operation Power AC90-260V 50-60HZ
    Max Power Consumption 700 W /m²
    Average Power Consumption 350 W /m²
    Control
    System
    Control Mode Synchronous Control by Linsn system
    Frame Update Frequency ≥600Hz
    Screen Refresh Frequency ≥38400Hz
    Gamma Correction (-0.5—5.0)
    Input Signal Support Composite,S-Video,Component,
    VGA,DVI,HDMI,SDI,HD_SDI
    Control Distance UTP CAT5E:100m;Multi-mode Fiber:500m;
    Single-mode Fiber:10km
    Video Signal MPG /MPEG/MPV/MPA/
    AVI/SWF/RM/RA/RMJ/ASF
    Support VGA Mode 800 x 600, 1024 x 768,
    1280 x 1024, 1600 x 1200,
    Brightness Correction Dot by Dot,module by module,
    cabinet by cabinet
    Operating Temp. - 10° —+55° Celcius degree
    Operating Humidity 10 - 90 % RH
    Operating Life 100,000 Hours
    Protection Level IP34
    MTBF 5000 Hours
    Out of Control Pixel Rate 0.01%










    Our Services



    Training Free of charges;In our workshop, we provide all the training including process of operation, installation, maintenance, system set up, etc.
    Warranty

    1, 3 years, .From beginning of installation finished the led display, During it , we will be responsible for all the quality problem.
    2, After the completion of the project, we will conduct life maintenance of the system continuously and update the and software.
    3, For the hardware equipment, we only collect expenses on components.

    Guarantee

    1, All the life time for Technology support , system update ,maintenance .
    2, We guarantee that the equipment we provide are brand new, complete and unused before delivery .

    Remark



    1. We are manufacturer of LED display. We only provide the Screen, Cabinet and module,
    but do not take charge for the installation in overseas; Technical support is available.
    2. The above offer included the cabinet, power supply, power cord,and other basic components; etc.
    3. The above offer do NOT included the delivery, insurance, installation and debugging cost;
    4. Packing with Ply-wood box, or Carton ; If need flight case packing, up cost will be USD180/PC, 2-4cabinets/case
    5.Problems during use.
    some spare parts for you, once the screen get problems, please follow up below steps to solve it:
    Step1: Take some pictures about the working status of the screen;
    Step2: Replace the broken cabinet by the new cabinet;
    Step3: Contact with us, and send the pictures to us, we will help you to analyze the problems.
    Step4: If it is necessary, please post it to our company, we will maintain it for you as soon as possible, and then deliver it to you.






    FAQ

    Q1. Can I have a sample order for led light?

    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

    Q2. What about the lead time?

    A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

    Q3. Do you have any MOQ limit for led light order?

    A: Low MOQ, 1pc for sample checking is available

    Q4. How do you ship the goods and how long does it take to arrive?

    A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

    Q5. How to proceed an order for led light?

    A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.

    Q6. Is it OK to print my logo on led light product?

    A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

    Q7: Do you offer guarantee for the products?

    A: Yes, we offer 2-5 years warranty to our products.

    Q8: How to deal with the faulty?

    A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
    than 0.2%.
    Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
    defective batch products, we will repair them and resend them to you or we can discuss the solution i
    ncluding re-call according to real situation.
