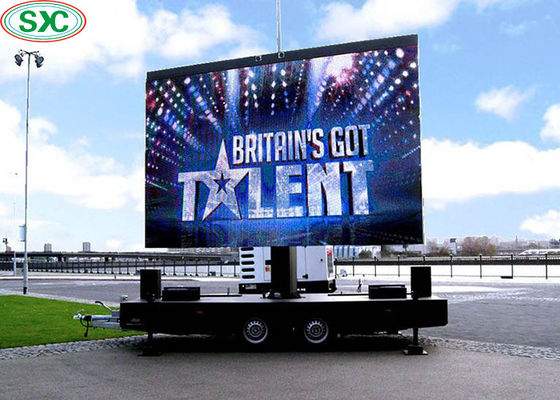

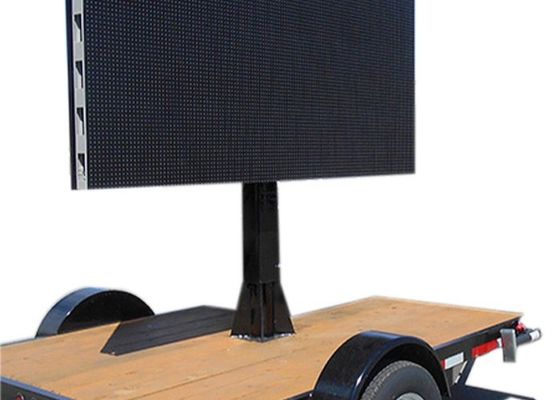

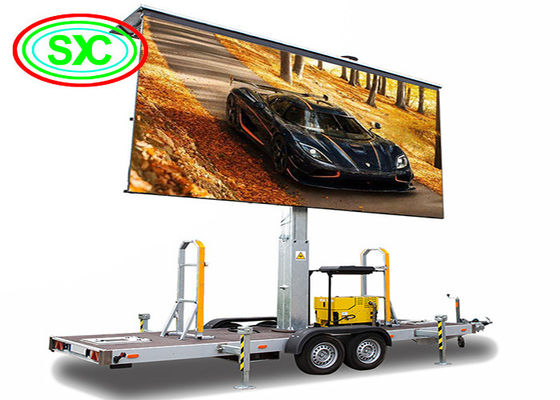

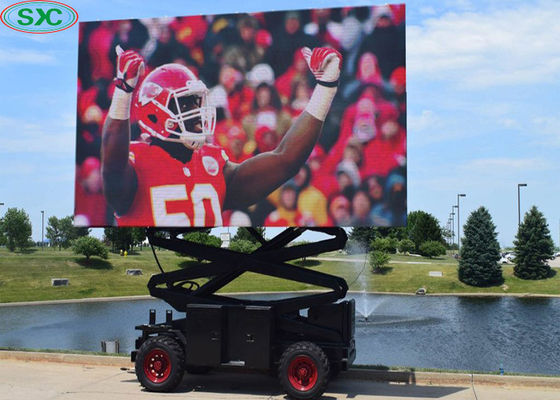

Flexible Car Led Board pitch 6mm 10000 Dots / Sqm Pixel Density

Flexible Car Led Board pitch 6mm 10000 Dots / Sqm Pixel Density

    • Flexible Car Led  Board pitch 6mm 10000 Dots / Sqm Pixel Density
    • Flexible Car Led  Board pitch 6mm 10000 Dots / Sqm Pixel Density
    • Flexible Car Led  Board pitch 6mm 10000 Dots / Sqm Pixel Density
    • Flexible Car Led  Board pitch 6mm 10000 Dots / Sqm Pixel Density
  • Flexible Car Led  Board pitch 6mm 10000 Dots / Sqm Pixel Density

    Product Details:

    Place of Origin: China
    Brand Name: SCXK
    Certification: CE/ROHS/FCC/ISO/UL
    Model Number: P6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1sqm
    Price: negotiation
    Packaging Details: wooden case or flight case are available.
    Delivery Time: 7-15 working days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 5000sqm per month
    Contact Now
    Detailed Product Description
    Pitch: 10mm Pixel Configuration: Rgb 3in1
    Module Size: 320X160mm Pixel Density: 10000 Dots/sqm
    Cabinet Size: Customized Driving Mode: 1/4 Scan
    Brightness: ≥5500cd/m2 Warranty: 3 Years
    High Light:

    car led message display

    ,

    car led display board

    Flexible Car Led Board pitch 6mm 10000 Dots / Sqm Pixel Density






    Product Specifications:



    LED Screen dimension: right and left side : 3456*1920mm, rear side: 1920*1920mm
    Dot pitch: 10mm
    External dimension: 5903mm x 3200mm x 5960mm
    Total Weight: 7,290 Kg
    Multimedia Control System: industrial PC + Video processor + 15-inch LCD monitor + speaker



    Parameters of our truck LED display :



    Market Character P6(trend) P8(hot sale) P10(popular)
    Pixel Pitch 6mm 8mm 10mm
    Module size 192x192mm 256x128mm 320x160mm
    Pixel Density 27777dot/sqm 15625dot/sqm 10000dot/sqm
    Pixel configuration SMD3528 SMD3535 SMD3535
    Brightness above 6500cd above 6000cd above 5500cd
    Drive method 1/8 scan 1/4 scan 1/4 scan
    Mask of the module Better shine
    Signal cables In the back of the module, with horns socket or butterfly clasp , it will increase the stability of signal transimission , avoid the loose when truck shock
    LED chip Epistar chip
    Drive IC MBI5124,high stability and reliable long working hours
    Dimension P4.81:3456*1920mm(left/right side)/1920*1920mm(rear)
    P6:3456*1920mm(left/right side)/1920*1920mm(rear side)
    P8:3328*2048mm(left/right side)/2048*2048mm(rear side)
    Driving Voltage 5V
    Viewing Angle H:120° w:120°
    Operating Temperature ’-20~60°
    Input Voltage AC110/220V+15%47-64HZ
    IP Rating IP65
    Life Time Above 100000hours



    Our special advantages



    1.The Mean Well brand certified by UL, Rohs, CE :

    1. Considered 1st rate in power supply field while some other suppliers only provide Rong Electronic, the G-energy or even worse

    2. More stable power output , longer life span

    3. protection mechanism against short circuit

    4. overload over temperature and over voltage







    2. Drive IC-ICN2053

    1. ICN2053 is absolutely better than MBI5124 that most suppliers are providing.

    2. Has better performance in eliminating ghost images and makes the screens very clearer , purer





    3. Lamp2525 better than 2727 for outdoor use

    1.Kinglight high contrast SMD2525 led lamp is best for P6.

    2.SMD2525 has more vivid color than the SMD2727, the image is more delicate and realistic.

    3.SMD2525 cup body is shorter, better heat dissipation, light angle is greater.







    4.PCB design and thickness

    Sunrise: unique design PCB with larger LED lamp touch area, enable the LED lamp to be held onto PCB firmly even with strong vibration.

    Competitors: very normal PCB, which can not assure the LED lamp to be held firmly. After a little longer vibration on truck, part of the led lamps will get loose



    Sunrise: 1.6mm thickness PCB with copper melt well. Stable data and circuit transmission all the time.

    Competitors: 1.2mm thickness PCB. It is easy to get circuit or data to be cut off when the LED billboard lights up for a longer time.



    5. Data connector

    Sunrise: Butterfly connector with anti-loose design;

    Competitors: C type connector without anti-loose design;



    Special designs:



    1: Electric leakage protection design with wooden floor Non-slip design





    1.Led truck screen with anti-vibration, butterfly connector is more anti-vibration,

    2.more stable current contact,less info loss,

    3.more stable transmission function. Suitable for led screen truck.





    1. Reliable design: connect coterminous led cabinet by connecting plate and locating pin.



    1. the protection level can reach up to IP65 ,and applicable to any rainy weather ,thus can used in any outdoor environment.



    1. Wider viewing angle: Horizontal≥120º;Vertical≥120º,can attract more audiences'eye, very good for outdoor advertising.


    Company profile
    Shenzhen SCXK Electronic Co.,Ltd established in 2009 and has the standard new factory, about 100 employees. We have outstanding R&D department and after-sell service workers, and separately design ability. Our product mainly included led indoor full color display, led outdoor full color display,led indoor full color display, led wireless car usd screen, poster screen,transparent screen etc.It can be used on the shopping mall, bank, bus station, train station, center of downtown, airport,school,factory,bus,taxi and so on. We adapt many methods and very good after-sell service to sell our product all over the world. Whenever and wherever we are, we always take the principle that is: professional makes good quality,good price product market to price product market to provide perfect product and service for our customers.


    Certificate
    Flexible Car Led  Board pitch 6mm 10000 Dots / Sqm Pixel Density 0


    Packaging and shipping
    Packing:1.wooden case packing for ironed steel cabinet.
    2.flight case packing for die casting aluminum cabinet.
    Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.
    Flexible Car Led  Board pitch 6mm 10000 Dots / Sqm Pixel Density 1
    Flexible Car Led  Board pitch 6mm 10000 Dots / Sqm Pixel Density 2
