Epistar LED Video Wall 50*50cm Panels SMD2121 Suitable For All Events Planning

Epistar LED Video Wall 50*50cm Panels SMD2121 Suitable For All Events Planning

    • Epistar LED Video Wall 50*50cm Panels SMD2121 Suitable For All Events Planning
    • Epistar LED Video Wall 50*50cm Panels SMD2121 Suitable For All Events Planning
    • Epistar LED Video Wall 50*50cm Panels SMD2121 Suitable For All Events Planning
    • Epistar LED Video Wall 50*50cm Panels SMD2121 Suitable For All Events Planning
  • Epistar LED Video Wall 50*50cm Panels SMD2121 Suitable For All Events Planning

    Product Details:

    Place of Origin: China
    Brand Name: SCX
    Certification: CE,ROHS,FCC,SASO
    Model Number: P3.91

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SQM
    Price: USD 1000-10000
    Packaging Details: Wooden Case , Size: 60x62x50cm, Wooden Case, Size:70x65x55cm
    Delivery Time: 10-15 working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 500 sqm per month
    Contact Now
    Detailed Product Description
    Led Module: 250*250mm Screen Refresh Frequency: ≥3840Hz
    Operation Power: AC90-260V 50-60HZ Max Power Consumption: 750 W /m²
    Average Power Consumption: 375 W /m²
    High Light:

    rental led display screen

    ,

    led rental screen

    SCX Manufacturer High Performance LED Video Wall 500mm by 500mm Panels Suitable For all kinds Of Events Planning





    Product Features



    √ High precision die casting aluminum material cabinet, special design on cabinet bottom ensures flatness of whole screen even the platform is not flat. Also can protect modules in screen bottom. Front and back maintenance design by module magnet assembly.



    √ 250mmx250mm module, compatible PH3.91, PH4.81, PH5.95. High contrast, high gray scale, 800~3500cd adjustable brightness to meet the indoor and outdoor screens.



    √ PWM driving IC, refresh >3840Hz, ensures true 16bit gray level.



    √ High-performance PCB board substrate with strict technology process ensure perfect flatness performance, showing the most real and brilliant colors.



    √ Optional LCD panel design on cabinet back can show company name, LOGO, temperature, humidity, working voltage, cumulative operation time etc.





    LED screen outdoor SMD full color PH3.91 PH4.81 PH5.95 rental led display







    Rental Screen Solution Diagram



    Epistar LED Video Wall 50*50cm Panels SMD2121 Suitable For All Events Planning 1

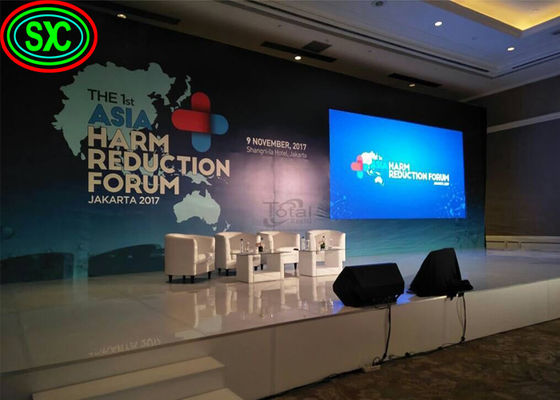

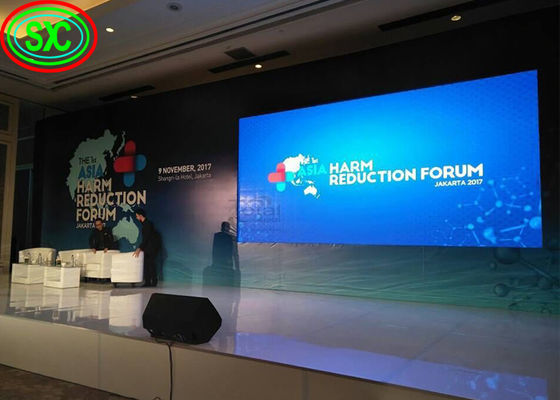

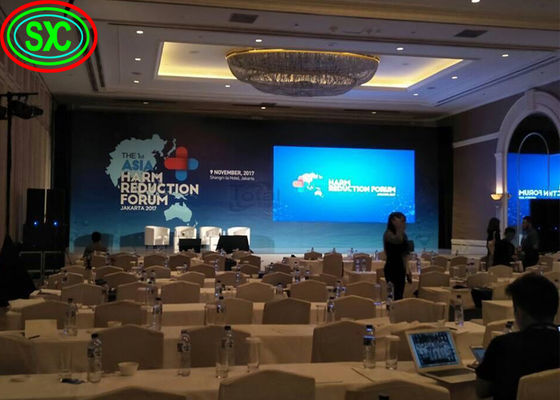

    Our Projects



    Epistar LED Video Wall 50*50cm Panels SMD2121 Suitable For All Events Planning 2





    Technical Parameters

    Type
    Parameter name
    Intdoor P3.91 Full Color LED Modules Parameter





    Module constitute
    Pixel structure
    Table three LED
    LED specification
    SMD2121
    Pixel composing
    1R1G1B
    Pixel distance
    3.9mm
    Module resolution
    64*64dots
    Moudle size
    250X250mm
    Pixel density
    65410dots
    Peak power consumption
    30w
    Moudle weight
    0.412kg


    Cabinet parameter
    Cabinet type
    Die-casting aluminum
    Cabinet dimension
    500X500mm
    Cabinet resolution
    128*128dots
    Cabinet area
    0.25m2




    Optical parameter
    White balance brightness
    1200cd/m2
    Best visual distance
    >3.9m
    Horizontal viewing angle
    140
    Vertical viewing angle
    120
    Luminance uniformity
    >98%
    Contrast
    3000:1


    Electrical parameter
    Maximum power
    1000w/m
    Average power
    320W/m
    Input voltage
    AC220V(50HZ)
    Output voltage
    DC5V



    Processing performance/
    Operation parameter
    Drive mode
    1/16scan
    Frame frequency
    60Hz
    Refresh rate
    >3840Hz
    Control method
    Synchronous
    Typcial life values
    100000hrs
    Working environment temperature
    -10~60
    Working environment humidity
    10%~70%
