RGB 3 In 1 Stage Background Led Display Big Screen High Definition Pixel Density 160000

RGB 3 In 1 Stage Background Led Display Big Screen High Definition Pixel Density 160000

    • RGB 3 In 1 Stage Background Led Display Big Screen High Definition Pixel Density 160000
    • RGB 3 In 1 Stage Background Led Display Big Screen High Definition Pixel Density 160000
    • RGB 3 In 1 Stage Background Led Display Big Screen High Definition Pixel Density 160000
    • RGB 3 In 1 Stage Background Led Display Big Screen High Definition Pixel Density 160000
  • RGB 3 In 1 Stage Background Led Display Big Screen High Definition Pixel Density 160000

    Product Details:

    Place of Origin: CHINA
    Brand Name: SCXK
    Certification: CE,ROHS,FCC,SASO
    Model Number: SMDP2.5

    Payment & Shipping Terms:

    Minimum Order Quantity: 1sqm
    Price: USD 1000-10000
    Packaging Details: wooden case,flight case,it is up to you
    Delivery Time: 7-10 working days
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Contact Now
    Detailed Product Description
    LED Shape & Size: 2 MM SMD 2121 Pixel Pitch: 2.5MM
    Driver Method/scan: 1/32 Number Of Colors: 16.7 Trillion
    Module Size: 160mm*160mm Cabinet Size: 480mm*480mm

    Indoor full color RGB 3in1 LED display, high definition display pixel density 160000, refresh rate up to 3000hz

    Product Description


    SPECIFICATION
    Parameters P2.5
    Pixel Pitch(mm) 2.5 mm
    Pixel Conguration SMD 2020
    Pixel Matrix per Panel(dots) 192 x 192 dots
    Pixel Density(dots/m²) 160,000 dots/m²
    Cabinet Size(mm) 480 x 480 x 63mm
    Panel Dimension(W×H×D) ( 18.9”×18.9”×2.5”)
    Panel Material Die-casting Aluminum
    Panel Weight(kg/panel) 5.6 kg/panel (12.3 lb/panel )
    Color Depth(Bit) 14 bit
    Refresh Rate(Hz) ≥2880Hz
    Driver Method/scan Scan 1/32
    Brightness(nits) 900nits, adjustable
    Horizontal Viewing Angle(°) 160 °
    Vertical Viewing Angle(°) 160 °
    AC Power Input(V) AC110V~ 220V ±10%
    AC Power Frequency(Hz) 50 ~ 60 Hz
    Max. Power(W/m²) 520 W/m²
    Avg. Power(W/m²) 170 W/m²
    Storage/Operating Humidity(RH ) 10% ~ 90%RH
    IP Rating(IP ) IP30 / IP30
    Lifetime Typical Value(Hrs) 100,000 Hrs
    Installation Type Fix , Front installation
    Maintenance Method Front & Rear serviceable
    Certications TUV-CE,ETL








    Workshop

    stage background led display big screen led backdrops for stage wedding planning audio visual

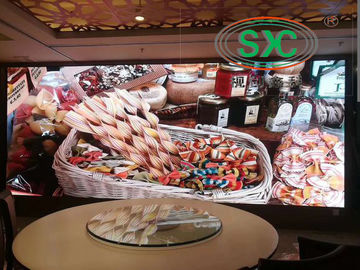

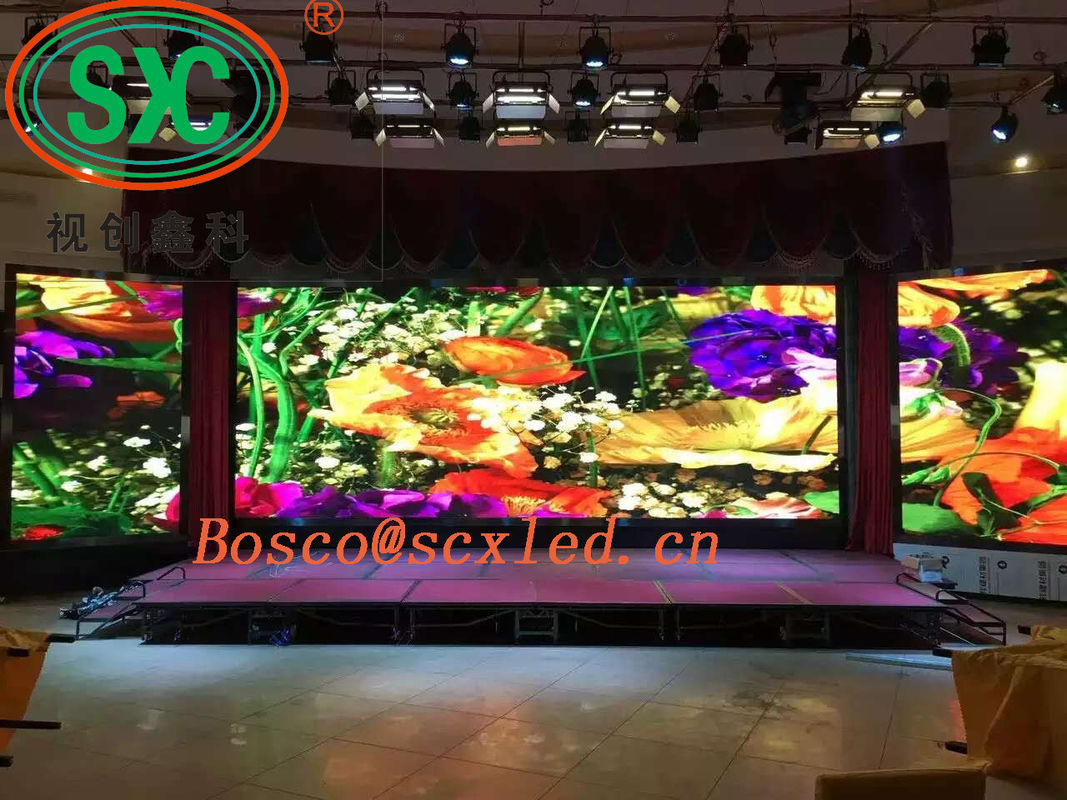

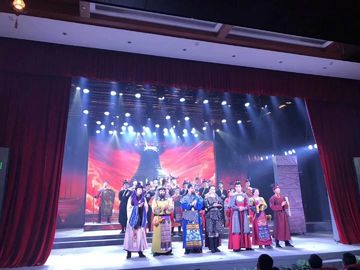

    Our Project

    stage background led display big screen led backdrops for stage wedding planning audio visual






    Our Service

    1. Warranty
    1) We provide warranty of all components for 3 full years. During this time, we will replace or repair our goods for free if there is something wrong with them.
    2) We will provide maintenance for a lifetime and charge for the raw materials only.

    2. Technology Training
    1) We provide the technology training for free, which contains the operation training and maintenance
    2) training in the factory.
    3) We will send our engineers to your country by negotiation.

    3. Maintenance and Consultation
    1) We provide full maintenance for a lifetime and charge for the raw materials only.
    2) We also provide lifetime consultation by E-mail, Skype, WhatsApp or other ways for free.

    4. Documents and Certification
    1) We provide the operation manual, software, test report and so on.
    2) We can also provide all kinds of certification such as CE, LVD, RoHS and so on.

    5. CAD Drawing and Fixing
    1) We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
    2) We will send our engineers to your place if we are expected after our negotiation.

    6. Additional Service
    1) We provide you the forwarding information, and some other information such as flight box, structure







    FAQ



    Q1. Can I have a sample order for led display?

    A: Yes, we welcome sample order to test and check quality. Mixed samples are aceptable.

    Q2. What about the delivery lead time?

    A: About 22 days after receiving payment.

    Q3. Do you have any MOQ limit for the order?

    A: Low MOQ, 1pc led panel for sample checking is available

    Q4. How do you ship the goods and how long does it take to arrive?

    A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 4-8 days to arrive. Airline and sea shipping also optional. And you can also designate shipping companies.

    Q5. How to proceed an order?

    A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the solution and places deposits for formal order.
    Fourthly We arrange the production.

    Q6. Is it OK to print my logo on the product?

    A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

    Q7. Do you offer guarantee for the products?

    A: Yes, we offer 2 years warranty to our products.

    Q8. How to deal with the faulty?

    First, Our products are produced in strict quality control system and the defective rate will be less
    than 0.2%.
    Second, we offer complete set of accessories for fixing up cabinets and 1 % extra spare parts of the total quantity for maintenance overhaul

    Third, during the warranty time, we will take responsibility to change or repair defective parts. The buyer pay the shipping of returning of defectives, and we pay the shipping of sending back.



    Q9. Do you offer installation services?

    We provide on the spot installation instruction service for the buyer, including:

    A, To check whether the bracket and frame are in conformity with the technical requirements of the structure scheme the seller provided
    B, To instruct the buyer's technicians to install the LED module cases and connection among those cases
    C, To experiment and adjust the whole panel, examine and repair the defective devices, guarantee panel in secure operation.
    D, To train the buyer's technicians.
    For spot installation, the service is 100 usd/day, and the buyer must pay our technician's living and traffic fee during the installation period.

    Q10. Is there any free training?
    A: Yes, we will provide 7 days on-site complete technical training in our factory.
