Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China(Mainland) |
| Brand Name: | SCX |
| Certification: | CE,ISO,FCC,UL |
| Model Number: | SCX-P1.25 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | Carton,wooden and flight cases. |
| Delivery Time: | 12-15 working days. |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C, D/A, D/P |
| Supply Ability: | 5000sqm/month |
| Usage: | Indoor | Screen Dimension: | Customized Size |
|---|---|---|---|
| Tube Chip Color: | Full Color | Pixels: | 1.25mm |
| Warranty: | 2 Years | Module Size: | 200*150mm |
| Brightness: | 1000cd/m2 | Life Span: | 100000hours |
| Highlight: | led digital billboards,led advertising billboards |
||

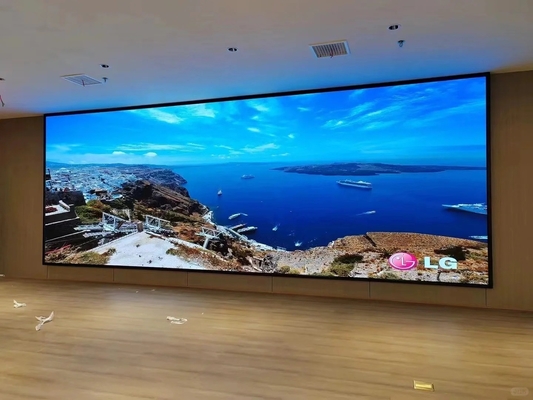

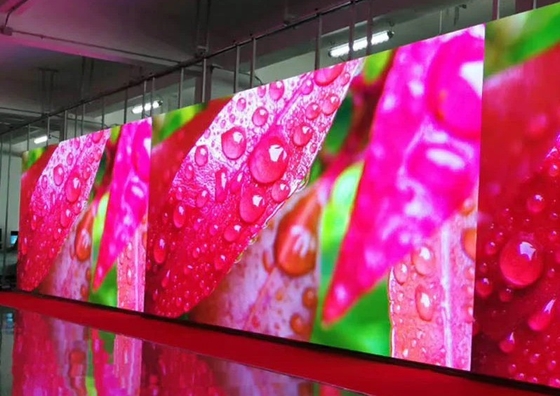

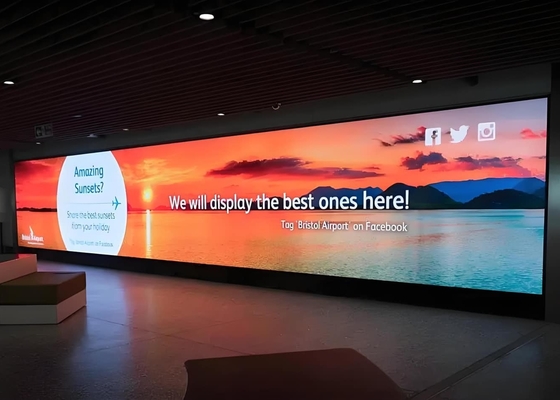

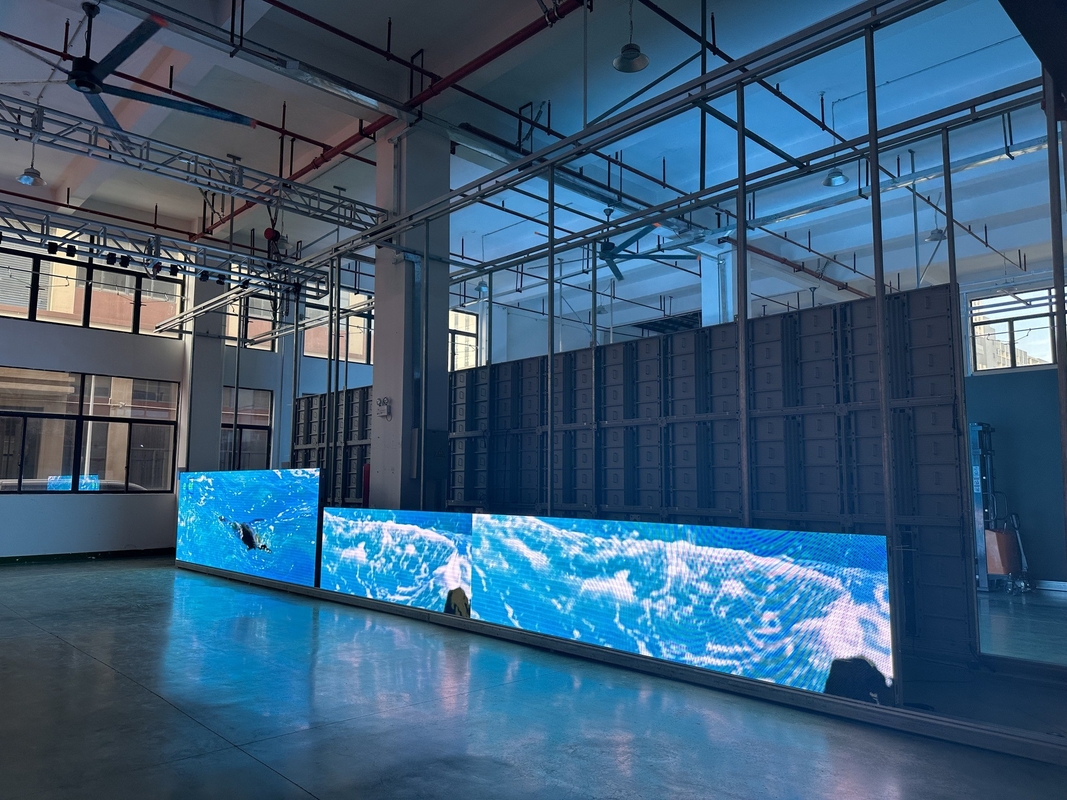

P1.25 LED Billboards Small Pixels High Resolution 200*150mm Aluminum Cabinet
Short details:
1. Light weight. Easy to transport and install, save labor cost, suitable for mobile performance.
2. Beautiful shape and simple structure.
3. Correct connection, one person can install and dismantle it without tools.
4. humanized operation interface with fault indicator, easy to maintain.
5. high debugging brightness, gray scale without damage, realize the debugging technology with beautiful image.
Translated with DeepL.com (free version)
Specifications:
| SMD P1.25 | |||||
| Resolution/mm | 1.25 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 640000dots/square meter | ||||
| Module resolution | 160x120mm | ||||
| Module size/mm | 200x150mm | ||||
| View distance | 2-30m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | 1000cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/30 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | 3840Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
Advantage
1.high color contrast and consistency,high brightness to ensure good display result.
2.CNC technology for cabinet,flatness between cabinet units<0.2mm.
3.Energy saving and noiseless power supply,excellent heat dissipation to ensure power supply and life span.
4.Constant current drive, luminance decrease <5% per year.
5.PH5/PH6/PH8/PH10 b adjustable brightness with higher color contrast.
FAQ
1.Q:Are you a factory or trading company?
A:We are a factory,located in Dalang,Longhua District .
2.Q:What kind of payment terms you accept?
A:We accept T/T,Western Union,MoneyGram etc.
3.Q:What's packaging?
A:1.Flight case packaging
2.Wooden case packaging
3.36pcs in one case packaging
4.Customized packaging
4.Q:Does you have CE/ROHS certificates?
A:Yes, we offer the CE & ROHS certificates .
5.Q:What's the shipping method,shipping time?
A:Our products could be shipped by Sea, by Air, and by Express.
by sea:20-40days; by air:5-10days ;by express:3-6days
