P10 LED Screen Outdoor Video wall Energy Saving High brightness advertising led display

P10 LED Screen Outdoor Video wall Energy Saving High brightness advertising led display

  • P10 LED Screen Outdoor Video wall Energy Saving High brightness advertising led display
  • P10 LED Screen Outdoor Video wall Energy Saving High brightness advertising led display
  • P10 LED Screen Outdoor Video wall Energy Saving High brightness advertising led display
  • P10 LED Screen Outdoor Video wall Energy Saving High brightness advertising led display
P10 LED Screen Outdoor Video wall Energy Saving High brightness advertising led display
Product Details:
Place of Origin: CHINA
Brand Name: SCXK
Certification: CB/CE/ROHS/FCC/ISO/UL
Model Number: P10
Payment & Shipping Terms:
Minimum Order Quantity: 8 SQM
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 3-10 working days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 6500 sqm month
Contact Now
Detailed Product Description
Application:: Outdoor Color:: Full Color, R/G/B
Panel Size:: 960mmX960mm Pixel Pitch:: 10mm
Display Function:: Video Pixels:: 10mm
Product Name:: P10 LED Screen Outdoor Brigtness:: 8000-10000cd/sq.m
Viewing Angle:: 120 Degree Material:: Steel/Aluminum
Certificate:: CE ROHS FCC
High Light:

advertising led display board

,

outdoor advertising led display

Fixed installation waterproof cabinet outdoor P10 big LED display for supermall screen stage background





what is the advantages of our P10 led display?

1.High quality:
our most basic guarantee: the aging time exceeding 24 hours. Malfunction dot rate less than 0.0001. MTBF more than 10000 hours.we assure high brightness and long lifespan.



2.Perfect Display Effect:

High brightness and clearly led display effect with easy use control system which allow you easy become enviable led display experts.



3.Attractive Factory Price:

We are a professional manufacturer, has its own factories and production lines. Without middlemen and trading companies, our price is more competitive, quality is more reliable.



4.Auto equipment:

kailite has several auto production lines equipment with Taiwan auto-encapsulate machine, Taiwan Chang-Yu handler, and the production of LED meets the demand of high quality standard LED display.

led display, outdoor led display, led display outdoor

P10 LED Screen Outdoor Video wall Energy Saving High brightness advertising led display 0P10 LED Screen Outdoor Video wall Energy Saving High brightness advertising led display 1



♦ Outdoor P10 led display Product specification

SMD P10
Lamp size 3535
Resolution/mm 10
Pixel configuration RGB 3 in 1
Pixel density/pixels/m² 10000m²
Module resolution 32x16
Module size/mm 320x160
View distance ≥10m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >7000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 120(degrees)
Signal Process bit 10 or 14 bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode Constant driving current
Scanning mode 1/4
Frame rate 60Hz
Refresh frequency >1920Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡ <1100W
Average power:/㎡ <280W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%



Our Company

P10 LED Screen Outdoor Video wall Energy Saving High brightness advertising led display 2

♦ Packaging and shipping

Wooden case or flight case package are available.



Pre-sale service:
1. Inquiries will be replied within 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offered.
5. Other required services such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking producing procedures all the time.
2. Provide photos and videos as per customer's requirement during production.
3. Free spare parts provided.
After-sale service:

1.Lifetime free maintenance and upgrade.

2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Warranty: 24 months.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.

6.Special service for big project, such as stadium, exhibitions, squares and so on

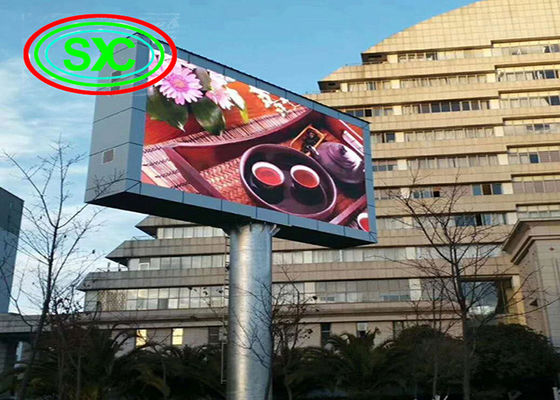

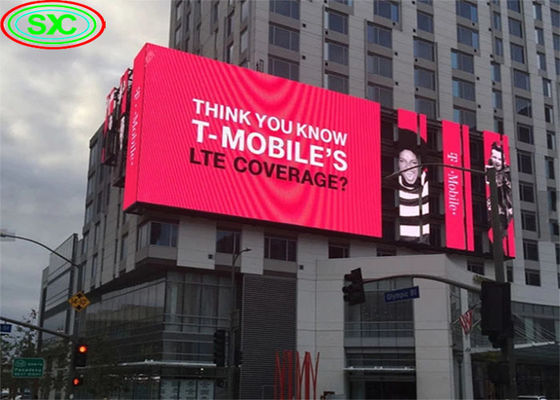

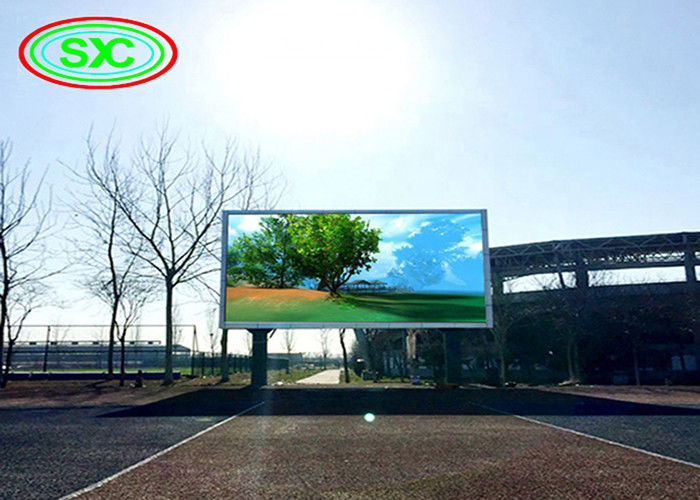

Case

P10 LED Screen Outdoor Video wall Energy Saving High brightness advertising led display 3P10 LED Screen Outdoor Video wall Energy Saving High brightness advertising led display 4P10 LED Screen Outdoor Video wall Energy Saving High brightness advertising led display 5

FAQ

1. Do I need air-conditioner?

YES, if your local temperature is very high . The quantity depends on your dimension.



2, How to install led display?

We will provide drawings of steel structure or Teamviewer to help you install. If you need our engineers to help you, we can sent them to your installation place. But the all fees including air tickets(back and forth), transportation, living , and salary(80SUD/per day/per person) need to be paid by you.



3,How to ship?

I suggest by sea because the cost is much cheaper than by air



4, Can I do wireless?

Yes, we can provide a set of control system to help you realize that. But I suggest you use computers ,especially for your large size, because using computers can bring much better visual effect and better for outdoor advertising .



5, If some issues happen what can I do?

We will do Teamviewer to help you fix all issues.



6, Can you provide the frame for me?

Yes, we can. But we suggest you buy it at local. First, it is difficult to delivery . Second, the freight cost will be higher a lot. We can provide detailed drawing of installation to guide you. So no worries about the installation.



7, How to finish payment? You can transfer payment by TT,West union, recommanded Alibaba Trade Assurance. It can guarantee your money and delivery time.
