Shenzhen Shichuangxinke Electronics Co.,Ltd

professional makes good quality, provide perfect product and service  for every customer.

Home ProductsOutdoor Full Color LED Display

Advertising Boards Football Stadium P6 SMD HD Video Wall Full Color Outdoor Fixed Waterproof Led Display Screen

Advertising Boards Football Stadium P6 SMD HD Video Wall Full Color Outdoor Fixed Waterproof Led Display Screen

  • Advertising Boards Football Stadium P6 SMD HD Video Wall Full Color Outdoor Fixed Waterproof Led Display Screen
  • Advertising Boards Football Stadium P6 SMD HD Video Wall Full Color Outdoor Fixed Waterproof Led Display Screen
  • Advertising Boards Football Stadium P6 SMD HD Video Wall Full Color Outdoor Fixed Waterproof Led Display Screen
  • Advertising Boards Football Stadium P6 SMD HD Video Wall Full Color Outdoor Fixed Waterproof Led Display Screen
  • Advertising Boards Football Stadium P6 SMD HD Video Wall Full Color Outdoor Fixed Waterproof Led Display Screen
  • Advertising Boards Football Stadium P6 SMD HD Video Wall Full Color Outdoor Fixed Waterproof Led Display Screen
  • Advertising Boards Football Stadium P6 SMD HD Video Wall Full Color Outdoor Fixed Waterproof Led Display Screen
  • Advertising Boards Football Stadium P6 SMD HD Video Wall Full Color Outdoor Fixed Waterproof Led Display Screen
Advertising Boards Football Stadium P6 SMD HD Video Wall Full Color Outdoor Fixed Waterproof Led Display Screen
Product Details:
Place of Origin: CHINA
Brand Name: SCXK
Certification: CB/CE/ROHS/FCC/ISO/UL
Model Number: SMD P6
Payment & Shipping Terms:
Minimum Order Quantity: 16 sqm
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 3-16 woking days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5200 sqm month
Contact Now
Detailed Product Description
Application:: Media/stage Led Display Color:: Full Color
Panel Size:: 192x192mm Product Name:: P6 SMD Outdoor Full Color Waterproof HD Led Display Screen
Certificate:: CE ROHS FCC Brightness:: 6500cd/sqm
Warranty:: 2 Years Life Span:: 100000 Hours
Screen Dimension:: Customized Size
High Light:

full color led signs outdoor

,

outdoor full color led screen



Advertising Boards Football Stadium P6 SMD HD Video Wall Full Color Outdoor Fixed Waterproof Giant Led Display Screen



* IP65 Waterproof Weather Rating
A fully rated outdoor product is key to guaranteeing the longevity of your outdoor advertising led display screen.
* High Brightness Display
The key to a quality outdoor advertising LED screen is variable brightness for any condition day or night.Traditional advertising outdoor LED screen has brightness offerings between 6500-7500 Nit.
* Custom Sizing
traditional outdoor advertising LED screen can be manufactured in multiple different cabinet sizes to best fit your
unique outdoor LED display installation.
* Stable, Reliable Connections
outdoor advertising LED display board utilizes data and power connections that are 100% water
tight allowing for stable and reliable connections between each outdoor LED display cabinet.
* Perfect Display Performance
SMD provides wider viewing angles and extremely close viewing dist.
* Widely applied to traffic information distribution of station, quay and airport, conference, shopping-mall, brand presentation, TV-station, stage-show, concert and so on.



♦ Product specification

outdoor SMD P6
Lamp size 3535
Resolution/mm 6
Pixel configuration RGB 3 in 1
Pixel density/pixels/m² 62500/m²
Module resolution 32x32
Module size/mm 128x128
View distance ≥4m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >1800cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 120(degrees)
Signal Process bit 10 or 14 bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode Constant driving current
Scanning mode 1/16
Frame rate 60Hz
Refresh frequency >1200Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡ <1100W
Average power:/㎡ <280W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%

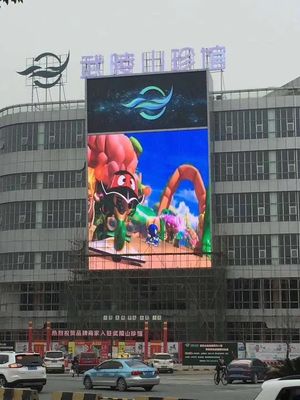

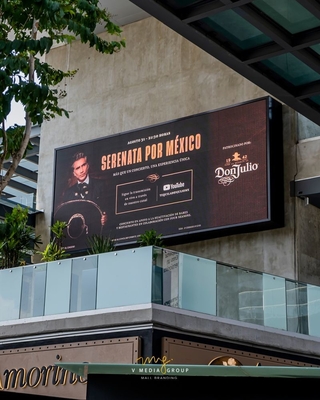

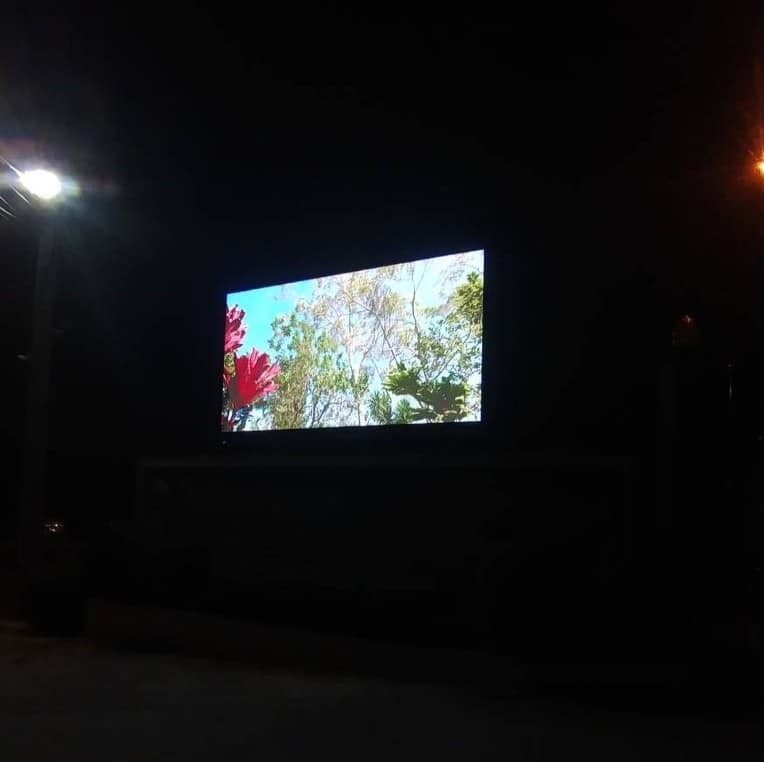

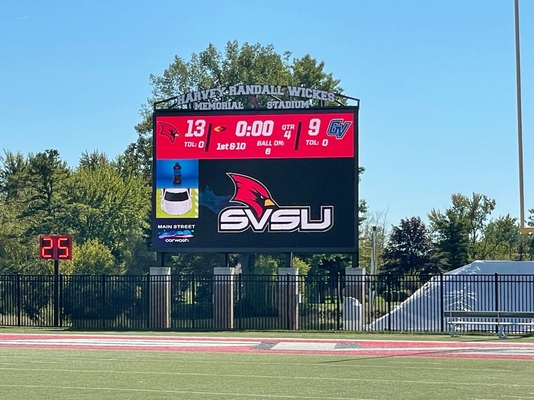

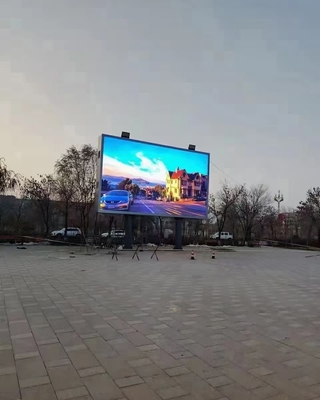

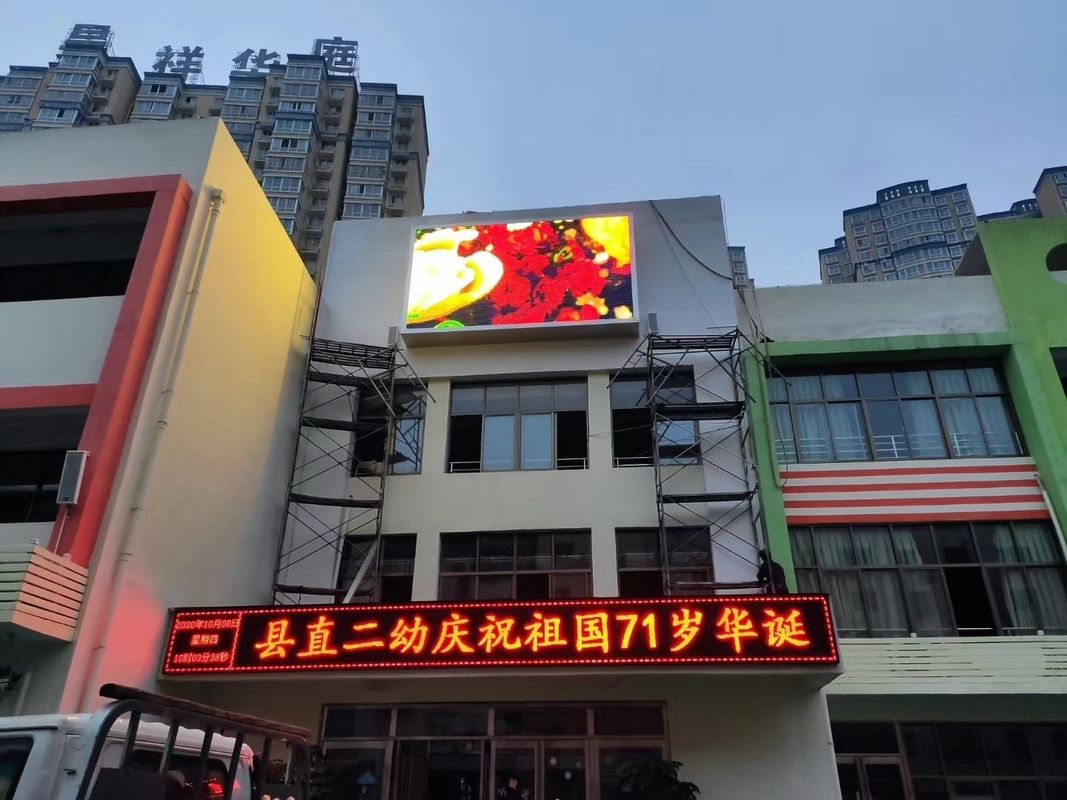

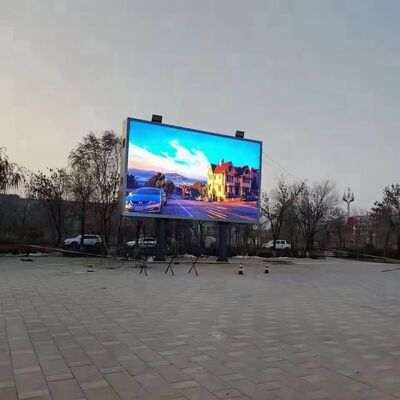

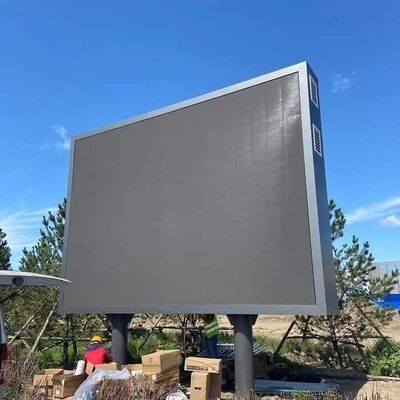

Our case

Advertising Boards Football Stadium P6 SMD HD Video Wall Full Color Outdoor Fixed Waterproof Led Display Screen 0Advertising Boards Football Stadium P6 SMD HD Video Wall Full Color Outdoor Fixed Waterproof Led Display Screen 1



♦ Quick Detail

1. Super lighter and thinner;


2. Easy to connection and uninstall;


3. It can display,words,texts,graphics and videos.

4. High resolution and high frequency dynamic image.



♦ Applications

LED display can be widely used in advertising,multi-media,stadium,stage,rental show,transit directions,etc.



♦ Our advantages

Professional Manufacturer of led display

1. OEM service,No MOQ

2. Easy installation,regular items in Stocks

3. Offering free design drawing as requested.

4. Remote controlling and adjusting are available.

5. Wooden case or flight case,you are the boss.

6. Your reply will be replied within 24 hours.



♦ Why choose us:

Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.





FAQ

Q1. Are you trading company or manufacturer?
A: We are a professional led screen manufacturer.

Q2. What is your terms of payment?
A: T/T or Western Union 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. Do you provide samples ? is it free or extra?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q4. How about your delivery time?
A: Generally, sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q6. Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.

Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
