Place of Origin: | CHINA |
Brand Name: | SCXK |
Certification: | CB/CE/ROHS/FCC/ISO/UL |
Model Number: | SMD P2.5 |
Minimum Order Quantity: | 6 sqm |
---|---|
Price: | negotiation |
Packaging Details: | flight case, wooden case, carton, it is up to you. |
Delivery Time: | 3-12 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 5600 sqm month |
Application:: | Indoor | Color: | RGB |
---|---|---|---|
Product Name:: | P2.5 Indoor LED Display | Certificate:: | CE ROHS FCC |
Module Size:: | 320x160mm | Pixel Density:: | 160000dots/sqm |
Scan Mode:: | 1/32 Scan | Pixel Configuration:: | SMD 3-in-1 1R1G1B |
Module Resolution:: | 128x64 Dots | Cabinet Resolution:: | 256*256 |
High Light: | advertising led display board,outdoor advertising led display |
P2.5 Video Display Panel High Refresh Rate Advertising Screens 480x480mm Club Advertisement Led Wall Indoor
1. Die-casting aluminum structure, higher accuracy.
2. Ultra-thin & light, easy installation, lower labor cost.
3. Universal cabinet size 480*480mm, pixel pitch including P2.5, P3, P4.
4. Application: shopping mall, supermarket, conference room, hotel, etc.
♦ Product specification
indoor SMD P2.5 | ||||||||||||||
Lamp size | 2121 | |||||||||||||
Resolution/mm | 2.5 | |||||||||||||
Pixel configuration | RGB 3 in 1 | |||||||||||||
Pixel density/pixels/m² | 160000/m² | |||||||||||||
Module resolution | 64x64 | |||||||||||||
Module size/mm | 160*160 | |||||||||||||
View distance | ≥0.5m | |||||||||||||
Single point brightness adjust | Can be added | |||||||||||||
Single point color adjust | Can be added | |||||||||||||
White balance brightness | >2500cd/㎡ | |||||||||||||
Color temperature | 6500K-9500K | |||||||||||||
Horizontal view angle | 120(degrees) | |||||||||||||
Vertical view angle | 60(degrees) | |||||||||||||
Signal Process bit | 10 or 14 bit | |||||||||||||
Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||
Driving mode | Constant driving current | |||||||||||||
Scanning mode | 1/4 | |||||||||||||
Frame rate | 60Hz | |||||||||||||
Refresh frequency | >4200Hz | |||||||||||||
Control mode | Computer synchronous | |||||||||||||
Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
Out of control point | <1/10000 | |||||||||||||
Working hours | ≥72hours | |||||||||||||
Mean Time Between Failure | >5000hours | |||||||||||||
Life time | 100000hours | |||||||||||||
Life-all-white(brightness halving) | 50000hours | |||||||||||||
Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
Maximum power:/㎡ | <1000W | |||||||||||||
Average power:/㎡ | <280W | |||||||||||||
Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
Luminous point width between centres | Deviation<3% | |||||||||||||
Brightness uniformity | <10% | |||||||||||||
Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
Contrast | (1000:1) | |||||||||||||
System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
Humidity(working) | working:10-95% | |||||||||||||
Humidity(storing) | storing:10-95% |

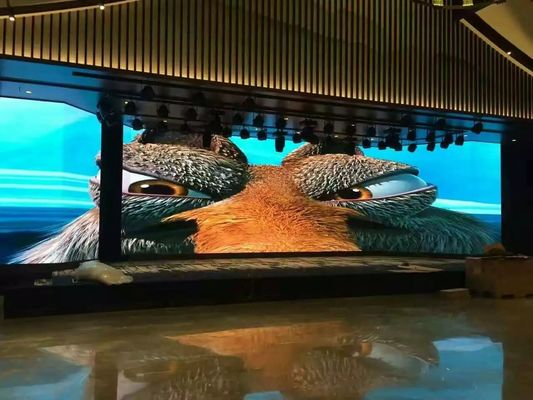

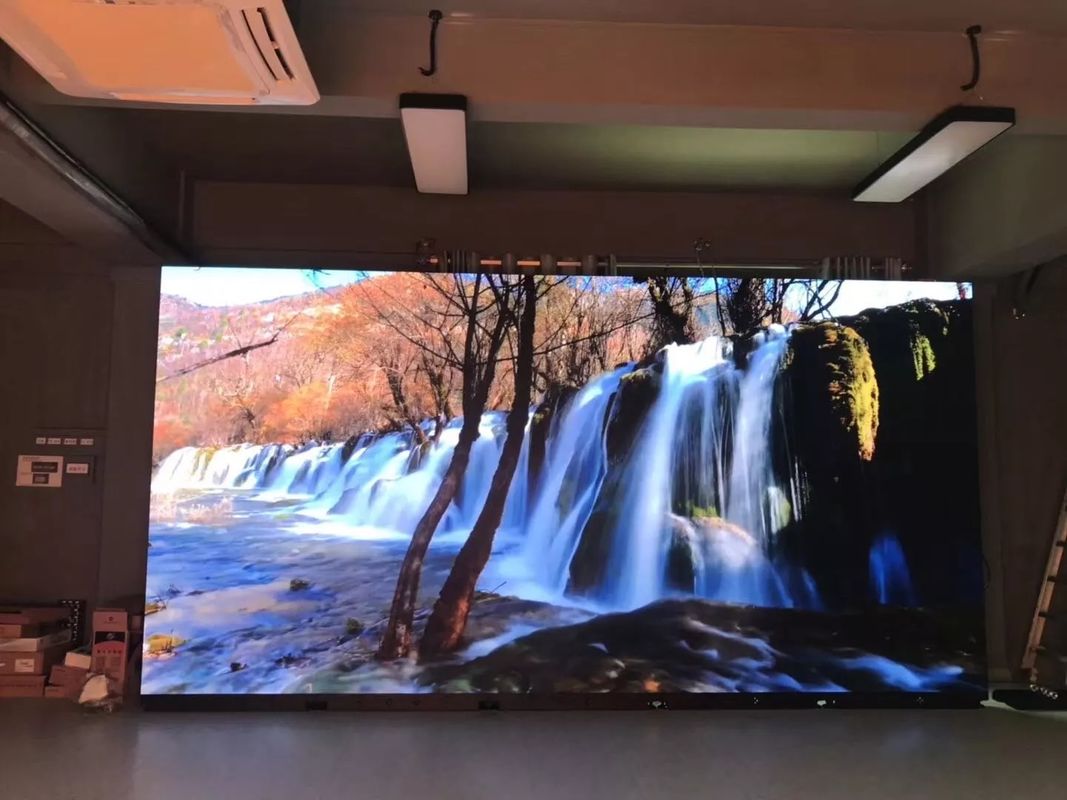

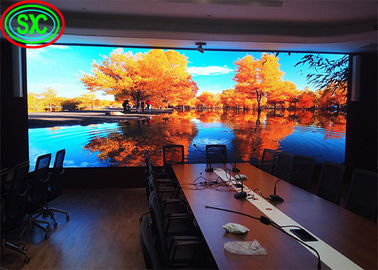

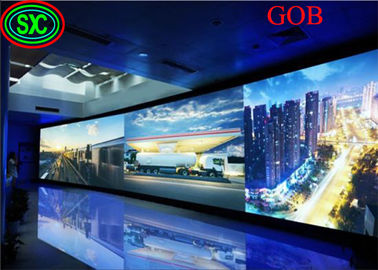

Case
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
Our Services:
1. We provide 2 years warranty and lifetime maintenance with exclusive and circumspect after-sale service.
2. Payment terms: T/T, Western Union, L/C, etc. You can also place order on here which is highly recommended, accept credit card payments.
3. Products cover all series LED display screens, including soft LED mesh display, flexible LED display, transparent LED display, indoor/outdoor fixed LED display, rental LED display, creative LED display, small pitch HD LED display, and so on.
4. SCX LED is professional manufacturer with over 10 years experiences in LED display field, we sell what we guarantee, 100% responsible for our products and customers. Any queries, pls do not hesitate to contact us, we will always be here to help.
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
FAQ
Q1: How to help client choose suitable display?
A1: (1)specific application scenario
(2)viewing distance requirement
(3)display brightness requirement
(4)specific installation environment
(5)budget and cost control
Q2: What about your technical support?
A2: Proffessional engineers are on standby, can offer guidance, on site technical support as required.
Q3: What's the control system?
A3: For synchronization control: Nova, Linsn or Mooncell control system.
For asynchronous control: Onbon or Xixun control system.
Q4: What's the warranty of your LED displays?
A4: We provide 2 years warranty and conditioned lifetime technical support for our LED display products.
Q5: What's your payment method?
A5: Our payment method is T/T 30% as deposit, balancing before delivery.
