Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CB/CE/ROHS/FCC/ISO/UL |
| Model Number: | SMD P4 |
| Minimum Order Quantity: | 13 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 3-12 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 4200 sqm month |
| Application:: | Outdoor, Outdoor Advertising Led Screen | Color:: | Rgb |
|---|---|---|---|
| Panel Size:: | 256x128mm | Pixel Pitch:: | 4mm |
| Refresh Rate:: | 3840Hz | Scan Mode:: | 1/8scan |
| Power Supply:: | Meanwell Power | Pixel Density:: | 62500dots/sqm |
| Certificate: | CE ROHS FCC CCC ISO9001 | Feature:: | Energy Saving |
| Life Span:: | 100000hours | ||
| High Light: | full color led signs outdoor,full color outdoor led display |
||
SCX LED HD P4 Outdoor Conventional Size Fixed Full color Ultra-light Ultra-thin water proof LED screen display
♦ Product specification
| Outdoor SMD P4 | ||||||||||||||
| Lamp size | 2121 | |||||||||||||
| Resolution/mm | 4 | |||||||||||||
| Pixel configuration | RGB 3 in 1 | |||||||||||||
| Pixel density/pixels/m² | 62500/m² | |||||||||||||
| Module resolution | 64x64 | |||||||||||||
| Module size/mm | 256*128 | |||||||||||||
| View distance | ≥0.5m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >2500cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 14 bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | 1/16 | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >4200Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
| Maximum power:/㎡ | <1000W | |||||||||||||
| Average power:/㎡ | <280W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||
♦ Product Overviews
| Items | Indoor Led display: p1.5, P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10 Outdoor Led display: P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25 |
| Material | steel,aluminum ,die casting aluminum |
| Payment terms |
30% deposit before production, 70% balance before shipping |
| T/T | |
| Western Union | |
| Packing: | Standard Export Carton with fully Polyfoam or Pearl Wool |
| Flight case; | |
| Anti-shaking wooden case | |
| Shipping: | 5 to 7 working days upon receiving deposit payment |
| After-Sales-Service: | Lifetime with professional engineer support for free. |
| Within 5 year, supply spare parts for free if has quality problem ( not by man-made damage) |
|
| Using Range | Shopping mall,bank,bus station, train station, center of downtown, airport, school, factory, bus, taxi,and so on. |

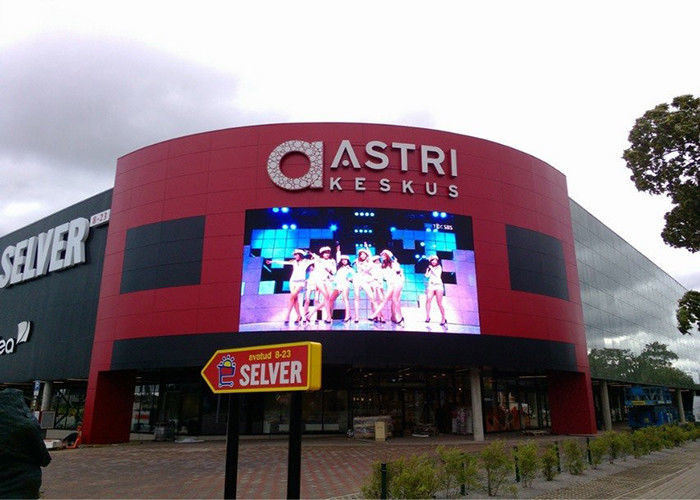

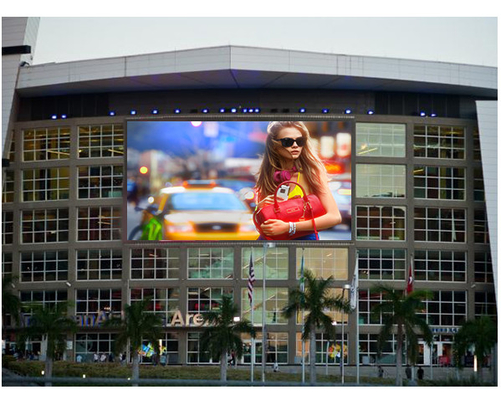

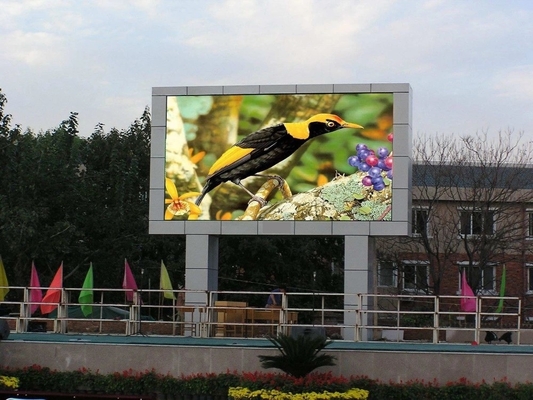

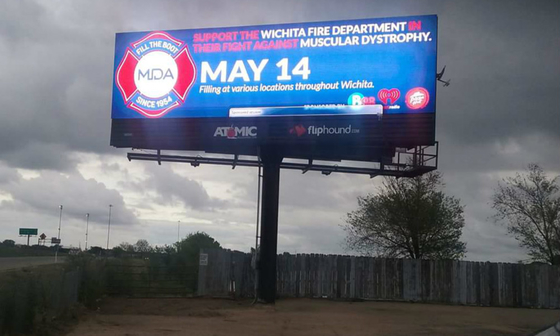

Our case
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
♦ Methods for Quality Assurance
a. Aging
1) 100% fully test
2) Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
FAQ
1) Q: Are you a factory or trading company?
A:We are a OEM/ODM factory.
2) Q:What payment methods your company accept?
A:We accept most ofthe payment methods,but mainly accept T/T,L/C,Western Union,Paypal and MoneyGram.
3) Q:How long is the warranty time for your products?
A:Our officially promised warranty time is 1-3years after delivery at best.
4) Q:I haven't done business with you guys before,how can i trust your company?
A:Our company has been in Alibaba.com for almost 6 years,which is longer than most of our fellow suppliers,we've been golden suppliers for years.what'smore,we've got quite a lot authority certificates,for example,CE,UL,RoHS,FCC, Alibaba onsite check certificate. I hope those above will be persuasive enough.Our Trade Assurance Limit is US $82,000, and it is still going up.
5) Q:what's the shipment terms and delivery time of your company?
A:Well, they depends on the quantity of your order.As you know ,we need time to manufacture the machines.but mostly ,the shipment time is 3-8 working days after delivery.For Delivery way, for Sample and Bulk order < 100KG, we will kindly suggest Express and Air freight, when Air freight and Sea shipping for Bulk order >100KG.As for detailed cost, it depends on your final order.
6) Q:Do you give any discount ?
A:I'll surely try my best to help you get those by the best price and good service at the same time.
7) Q:I would like to ask you if it's possible to have my logo on the product.
A:We hope you know that our company perfectly support customized logo service. But, we also hope you know that it's an extraservice,so a little bit extra service fee is needed.
