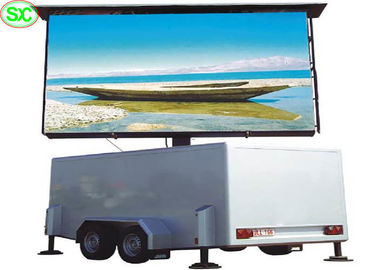

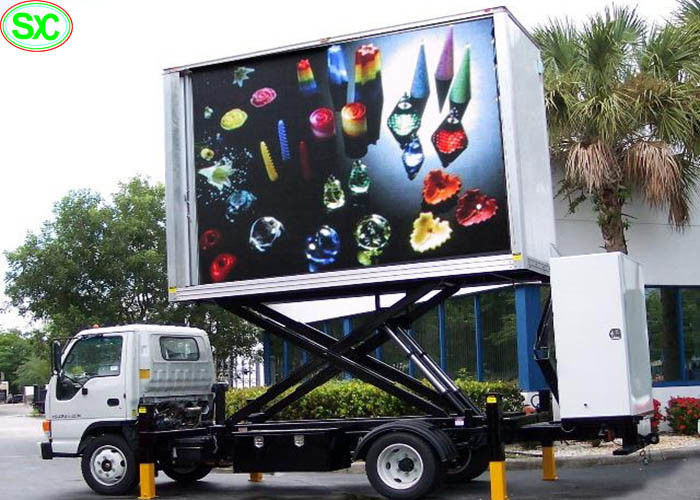

Name: Advertising 3G Controller Mobile Truck LED Display SMD P5 High Resolution
Brand: SCXK
SKU: SMD P5
Rating: 4.7 (179 reviews)

Home Products Mobile Truck LED Display

Advertising 3G Controller Mobile Truck LED Display SMD P5 High Resolution

Product Details:

Place of Origin:	CHINA
Brand Name:	SCXK
Certification:	CB/CE/ROHS/FCC/ISO/UL
Model Number:	SMD P5

Payment & Shipping Terms:

Minimum Order Quantity:	negotiation
Price:	negotiation
Packaging Details:	wooden case ,flight case , it is up to you .
Delivery Time:	7-10 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram,
Supply Ability:	5000 sqm month

Contact Now

Detailed Product Description

Lamp Size:	3535	Resolution/mm:	5
Pixel Configuration:	RGB 3 In 1	Pixel Density/pixels/m²:	40000/m²
Module Size/mm:	320*160MM	View Distance:	≥4m
Refresh Frequency:	>3000Hz	Warranty::	3 Or 5 Years
Control System::	WIFI, 3G,USB	Frame Rate:	60Hz
High Light:	mobile led screen rental , digital led sign

Advertising 3G Controller SMD P5 High Resolution Mobile Truck LED Display

♦ Features of Product:

1. The first level LED chip from Taiwan Epistar.

2. With pure golden wire connection in LED.

3. Grand A row material for module frame and mask.

4. 4 layers PCB and copper plating thickness > 18mil.

5. Ag alloy solder paster to ensure good soldering on PCB.

6. Stainless steel screws when assembly.

7. Die-casting aluminium material cabinet ensures perfect flatness and no gap between cabinets.

8. Disassembly and assembly are quick and easy.

9. Three years warranty.

♦ Product specification

outdoor P5 SMD

Lamp size

3535

Resolution/mm

Pixel configuration

RGB 3 in 1

Pixel density/pixels/m²

40000/m²

Module resolution

64x32

Module size/mm

320*160MM

View distance

≥4m

Single point brightness adjust

Can be added

Single point color adjust

Can be added

White balance brightness

>8000cd/㎡

Color temperature

6500K-9500K

Horizontal view angle

120(degrees)

Vertical view angle

60(degrees)

Signal Process bit

10 or 14 bit

Grey process

1024x1024x1024 16834x16834x16834 65536x65536x65536

Control distances

Internet cable:100m, multimembrane:500m, monofilm:5km

Driving mode

Constant driving current

Scanning mode

constant driving static

Frame rate

60Hz

Refresh frequency

>3000Hz

Control mode

Computer synchronous

Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point

<1/10000

Working hours

≥72hours

Mean Time Between Failure

>5000hours

Life time

100000hours

Life-all-white(brightness halving)

50000hours

Environment temperature range

Operating temperature range: -20-45℃ Storing temperature range: -30-65℃

Maximum power:/㎡

<750W

Average power:/㎡

<300W

Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment

WindowsNT,Windows1999,WindowsXP

Luminous point width between centres

Deviation<3%

Brightness uniformity

<10%

Color uniformity(chromaticity coordinate)

±0.003

Power supply request

AC85-264V(50Hz-60Hz)

Contrast

(1000:1)

System protection

Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration

Humidity(working)

working:10-95%

Humidity(storing)

storing:10-95%

Product Overviews

Items	Indoor Led display: P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10 Outdoor Led display: P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25
Material	steel,aluminum ,die casting aluminum
Payment terms	30% deposit before production, 70% balance before shipping
	T/T
	Western Union
Packing:	Standard Export Carton with fully Polyfoam or Pearl Wool
	Flight case;
	Anti-shaking wooden case
Shipping:	5 to 7 working days upon receiving deposit payment
After-Sales-Service:	Lifetime with professional engineer support for free.
After-Sales-Service:	Within 5 year, supply spare parts for free if has quality problem ( not by man-made damage)
Using Range	Shopping mall,bank,bus station, train station, center of downtown, airport, school, factory, bus, taxi,and so on.

♦ Production process:

1) Incoming Inspection→2) SMD→3) Plug-in

→4) Wave Soldering→5) After Welding→6) Testing

→7) Semi Finished Aging→8) Module Assembly

→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

♦ Packaging and shipping

Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.

♦ Our Service:

Pre-sales support
1. We offered technical advice to our customers before buying our products.
2. Help customers to choose suitable products within budget with most economy benefit.
3. Design the framework structure to install our led products with technical drawing.
4. We offered software customization for our customer’s specific usage.

After- sales service
1. We promise our customers 3 years warranty service!
2. We provide free maintenance services including remote configuration, technical consultation, and trouble shooting for our customer.
3. We promise a life time follow up service for all the equipment supply by our company. These include continuously improve of system functions and upgrade of system software.
4. We offered training to our customer who includes operating and maintenance of our products.

Advertising 3G Controller SMD P5 Mobile Truck LED Display High Resolution
