Place of Origin: | CHINA |
Brand Name: | SCXK |
Certification: | CB,CE,ROHS,FCC,ISO9001 |
Model Number: | SCX-SMDP8 |
Minimum Order Quantity: | 12 sqm |
---|---|
Price: | negotiation |
Packaging Details: | wooden days flight case,it is up to you. |
Delivery Time: | 3-12 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 5300 sqm month |
Application:: | Outdoor | Color:: | Full Color |
---|---|---|---|
Panel Size:: | 256mm*128mm | Pixel Pitch:: | 8mm |
Scan Mode::: | 1/4scan | Cabinet Size::: | 768x768x130mm |
Cabinet Weight:: | 35kg/panel | Cabinet Material:: | Waterproof Iron Cabinet |
LED Chip/IC:: | Epistar Chip | LED Encapsulation:: | Nation Star Lamp |
Warranty::: | 2years | ||
High Light: | full color outdoor led display,outdoor full color led screen |
Application: Widely used in stage,singing and dancing events,various conferences,exhibitions,stadiums,theaters,auditoriums,lecture halls,Multi-purpose hall,conference room,interpretation hall,Di Bar,night club,high-end entertainment disco,TV station Spring Festival Evening,auto show,important large cities and municipalities cultural activities,etc.
LED cabinet parameter of the P8 fixed led display
Specifications: W768*H768
Weight: 35kg
Material: Iron or Aluminum
Installation method: On pole, Mounted on the wall, Hanging on the wall, on the roof
Use environment: Outdoor IP65
Includes accessories: Control system,power supply, led module,connecting piece,cables
Cabinet color: black
Door color: black
Characteristics
1. Specification: 768mm*768mm
2. Thickness: 130mm
3. Material: iron, aluminum
4. Protection level: IP65
5. Features: outdoor box, double door structure, door panel inlet and outlet, equipped with cover, fixed installation, cabinet can be customized
Item | Specification | ||||||||
LED Parameters | Luminous Intensity | R:620-630, G:520-535, B:465-475 | |||||||
Wavelength | R:400-500mcd, G:1800-2200mcd, B:350-450mcd | ||||||||
Test Condition | R:25℃,20mA, G:25℃,20mA, B:25℃,20mA | ||||||||
LED Module | Led Type | SMD 3 IN 1 | |||||||
Pixel Pitch | 8mm | ||||||||
LED Shape & Size | 8 mm SMD 3528 | ||||||||
Encapsulation Type | 1R1G1B | ||||||||
Module Dimension | 192 mmx192 mm | ||||||||
Module Resolution | 32× 32 | ||||||||
Module Weight | 0.20 KG | ||||||||
Pixel Density | 27777 | ||||||||
Driving Mode | 1/16 | ||||||||
Module Power Consumption | 20 W | ||||||||
LED Cabinet | Cabinet Size | 576 mm(W)x 576 mm(H) | |||||||
Cabinet Thickness | 6 mm | ||||||||
Cabinet Resolution | 192 x192 | ||||||||
Module Numbers per Cabinet | 3 pcsx3pcs=9 pcs | ||||||||
Cabinet Material | Die Casting Aluminum | ||||||||
Optical parameters | Brightness | ≥2000 cd | |||||||
Contrast Ratio | ≥2000:1 | ||||||||
Single-point Brightness Correction | Available | ||||||||
Single-point Color Correction | Available | ||||||||
Surface Evenness | GAP< 1mm | ||||||||
Color Temperature Condition | 3500K~9500K,(can be adjustable) | ||||||||
Viewing angle | 120°(Horizontal),60°(Vertical) | ||||||||
Gray Scale | 16 bit | ||||||||
Best View Distance | 6 m~200 m | ||||||||
Brightness Adjustment | 0-100% 8 levels | ||||||||
Power Supply | Operation Power | AC90-260V 50-60HZ | |||||||
Max Power Consumption | 550 W /m² | ||||||||
Average Power Consumption | 275W /m² | ||||||||
Controle System | Control Mode | Synchronous Control by Linsn system | |||||||
Frame Update Frequency | ≥250Hz | ||||||||
Screen Refresh Frequency | ≥1000Hz | ||||||||
Gamma Correction | (-0.5—5.0) | ||||||||
Input Signal Support | Composite,S-Video,Component,VGA,DVI,HDMI,SDI,HD_SDI | ||||||||
Control Distance | UTP CAT5E:100m;Multi-mode Fiber:500m;Single-mode Fiber:10km | ||||||||
Video Signal | MPG /MPEG/MPV/MPA/AVI/SWF/RM/RA/RMJ/ASF | ||||||||
Support VGA Mode | 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200, | ||||||||
Brightness Correction | Dot by Dot,module by module,cabinet by cabinet | ||||||||
Operating Temp. | - 10° —+55° Celcius degree | ||||||||
Operating Humidity | 10 - 90 % RH | ||||||||
Operating Life | 100,000 Hours | ||||||||
Protection Level | IP34 | ||||||||
MTBF | 5000 Hours | ||||||||
Out of Control Pixel Rate | 0.01% |

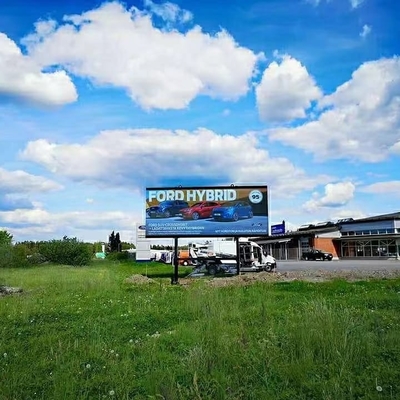

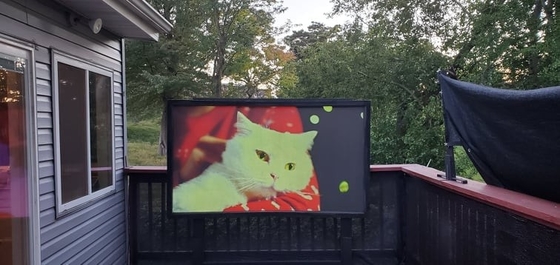

Our case
Features:
1.High and adjustable LED brightness can meet the demands of the changing requirement of customer in different environments.
2. No mosaic display due to excellent flatness and nice uniformity of light-emitting
3.Wide viewing angle and the horizontal angle can reach 120°m. The images display effect will not Change largely in the range.
4. Virtual pixel display screen can be adopted for outdoor displays to increase the resolution up to four times of real pixel, making the images softer and vivider
5. LED Single-lamp maintenance with low cost.
6. Good heat dissipation capability because of the unique design of vent fan.
7. Environmental-friendly and energy-saving.
Our Service
Pre-sale service:
1.Reply enquiries in 24 hours.
2.Market research and forecast for customer.
3.Provide unique and professional solutions based on customer's requirement.
4.Other services, such as special packing design, factory visiting and so on.
After-sale service:
1.Lifetime free maintenance and upgrade.
2.Complaint respond period within 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3.Customer satisfaction tracking report.
4.Free technician training.
5.Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6.Special service for big project, such as stadium, exhibitions, squares and so on.
FAQ
1 Q: How fast can I get reply from your company? A: During working days, usually within 2 hours, you will get reply from our professional sales team. 2 Q:What is your current lead time? A: Usually no more than 25 days; and some products are in stock for quick delivery. 3 Q:What pixel pitch can you provide? And what product do you have? A :Indoor Series from P0.9 to P5, outdoor from P2.5 to P10. We offers a wide range of LED displays, manufacturing,sales, and exportation of indoor and outdoor fixed/rental led display, LED Sphere, LED cube, LED transparent window glass display, and customized led projects etc. 4 Q:What kind of sending/receiving cards are used? A: Novastar/Colorlight/Linsn. Mostly use Novastar 5 Q:What technical supports can you offer? A:We provide all kinds of technology trainings for free, including the operation and maintenance training of the LED screens in our factory. we can arrange an engineer team to the country of customers to instruct the installation, it needs customers to pay the relevant fees. 6 Q:Do you provide any free spare parts in each order? A:Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED lamp, IC, mask, power supply, receiving card, etc. 7 Q:What’s your warranty of your products? A:The standard warranty is 2 year after shipment.
