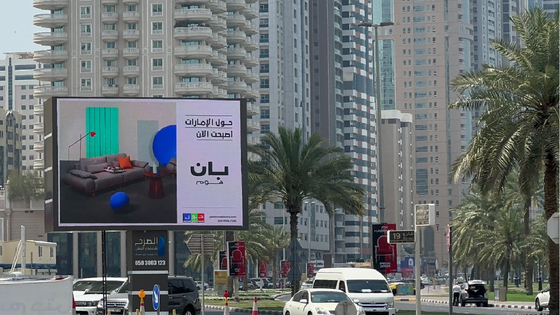

SMD3535 Hight brightness led advertising screen Advertising Full Color Outdoor fixed install P10 P8 P6 P5 LED Billboard

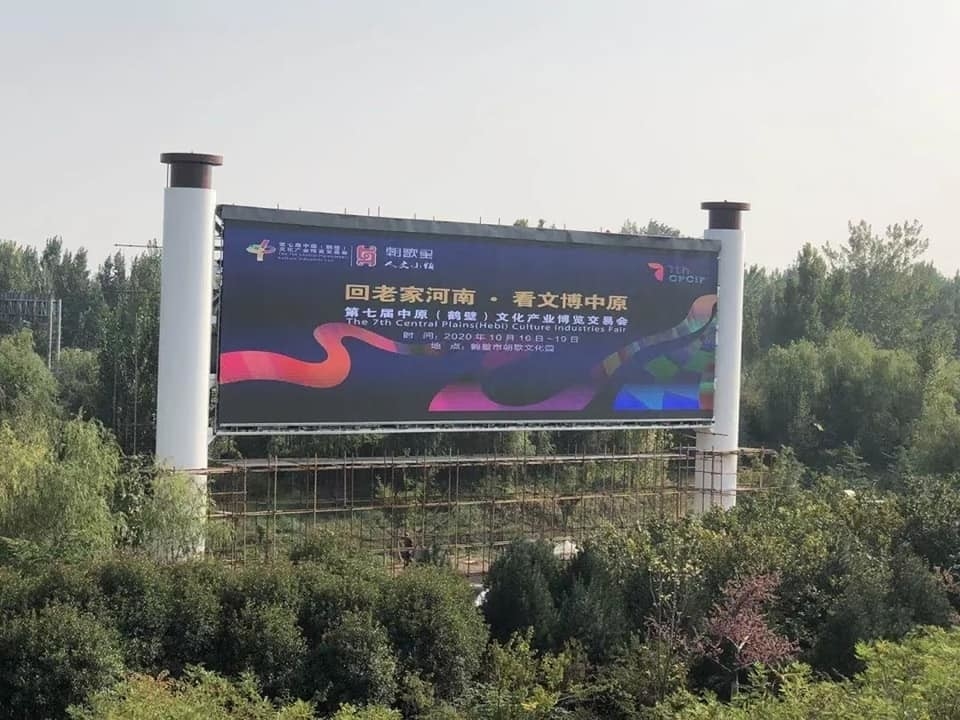

SMD3535 Hight brightness led advertising screen Advertising Full Color Outdoor fixed install P10 P8 P6 P5 LED Billboard

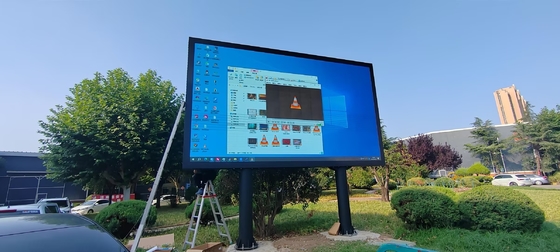

SMD3535 Hight brightness led advertising screen Advertising Full Color Outdoor fixed install P10 P8 P6 P5 LED Billboard

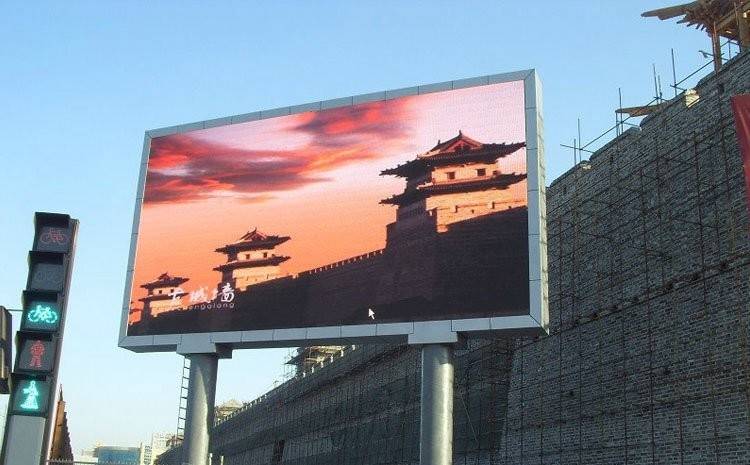

SMD3535 Hight brightness led advertising screen Advertising Full Color Outdoor fixed install P10 P8 P6 P5 LED Billboard

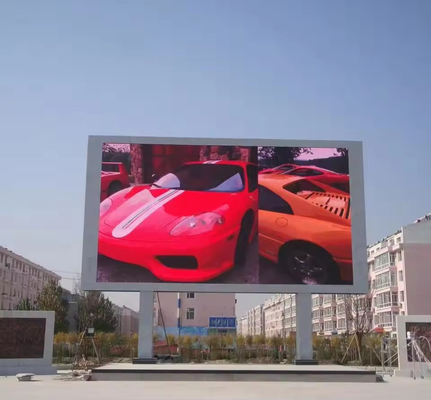

SMD3535 Hight brightness led advertising screen Advertising Full Color Outdoor fixed install P10 P8 P6 P5 LED Billboard
Product Details:
Place of Origin: CHINA
Brand Name: SCX
Certification: CB/CE/ROHS/FCC/ISO/UL
Model Number: SMD-P10
Payment & Shipping Terms:
Minimum Order Quantity: 16 SQM
Price: negotiation
Packaging Details: wooden case ,flight case ,it is up to you.
Delivery Time: 3-16 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2663 sqm month
Contact Now
Detailed Product Description
Application:: Advertising Panel Size:: 960mm*960mm
Pixel Pitch:: 10mm Module Resolution:: 32dot*16dot
Warranty:: 3 Years Brightness:: 7000cd/m2
LED Chip:: Epistar Life Span:: 100000hours
Module Size:: 320mm*160mm Material:: Waterproof Iron
High Light:

led screen module

,

led sign module

High Brightness Outdoor Fixed Led Display For Advertising, External P10 Led Display



Application Site:



Outdoor fixed LED display is widely used in government plazas, recreational plazas, large-scale entertainment plazas etc.



Advertising Display Screens Details

1. P10 mm, 3535 packaging, a large angle of view,power consumption, color uniformity, easy maintenance and operation simple,

2. It can be based on outdoor environment brightness ,humidity,temperature automatic adjustment ,energy-saving, intelligent control.

3. Special design to make outdoor led video screen lower power consumption and energy-saving

4. Mainly used for outdoor high density picture display uses,waterproof and dust proof.High gray and high refresh,meet the camera,camera equipment to shoot demand,3535 table stick package,to meet the large angle of view.



Product features of Advertising Display Screens



1. SMD LED with Best Color Uniformity and High Brightness.

2. High Refresh Rate and High Grey Grade with Reliable Driving IC.

3. Best Power Supply of Meanwell PSU of CE, UL Approved.

4. Waterproof IP65 LED Cabinet Can be Customized according to your LED Display Size.

♦ Product specification

outdoor SMD P10
Resolution/mm 10
Pixel configuration 1R1G1B
Pixel density/pixels/m² 10000/m²
Module resolution 32*16
Module size/mm 320*160
View distance 9-400m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >8000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode Constant driving current
Scanning mode (1/4)
Frame rate 60Hz
Refresh frequency >3500Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃
Maximum power:/㎡ <900W
Average power:/㎡ <350W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%



Our  case

SMD3535 Hight brightness led advertising screen Advertising Full Color Outdoor fixed install P10 P8 P6 P5 LED Billboard 0SMD3535 Hight brightness led advertising screen Advertising Full Color Outdoor fixed install P10 P8 P6 P5 LED Billboard 1

High brightness 8000 P10 Easy installation commercial advertising bill boarding outdoor flexible  led screen for co 2



♦ Production process:

1) Incoming Inspection→2) SMD→3) Plug-in

→4) Wave Soldering→5) After Welding→6) Testing

→7) Semi Finished Aging→8) Module Assembly





Eachinled has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.

Pre-sale service:

1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.


In-sale service:

1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.

After-sale service:

1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.





FAQ

⭐Q1:Can i oem/odm?
A: OEM/ODM is welcome,we have R&D team,UV printer /laser machine to meet you need.
⭐Q2:How about the quality of your products?
A:CE ROHS FCC MSDS approval,for more ;ocal certificates,please contact us for confirmation.
⭐Q3:What is the quality control method in your factory?
A: Quality first. QC department has professional quality assurance, experts always attach great importance to quality control.Each
product will be tested more than 3 times.
⭐Q4:When will the goods ship?
A: We have enough stock to ship out within 48hours,lead,time by express is 3-8days,by EMS is 15-35 days.Normally we ship by
Alibaba logistics,it is expensive,but safe,reliable,efficient and fast,if you need to send by other express,please contact us.
⭐Q5:How to place an order?
A: “Start Order “
“choose the quantity,colors”
“Filling your address”(remember to put your Phone Number&Post Code )”
Or you could "Send inquiry"to us,we will fast reply within 2 hours of work time.
⭐Q6:I'd like to visit your latest products and quotations, how can I get them?
A:Welcome to contact us directly by online messenger, Trademanager or Whatsapp for latest catalogues. Send us inquiry or direct
email is welcome too.
⭐Q7:Can you accept small orders?
A:Yes, small orders are accepted. Just let us know how many pieces you need.
⭐Q8:Can you supply me samples?
A:Yes, we can. Welcome to contact us for further information.
⭐Q9:If your product does not arrive within your delivery time, please let us know.
A: This has never happened in our company, because we have professional management personnel to comprehensively manage and control
every link of production, and we also train every employee.
⭐Q10:What will your company do with the defective product?
A: All of our productscome with a one-year warranty. If there are any problems during this period, we will take full
responsibility. You can return itany time you like.
We care about our valued cutomers, if you have any question, please feel free to contact us by Trademanger, Skype, QQ, MSN, Mob,or E-mail.
