Shenzhen Shichuangxinke Electronics Co.,Ltd

professional makes good quality, provide perfect product and service  for every customer.

Home ProductsIndoor Full Color LED Display

hot sale High performance indoor advertising digital P3.91 waterproof led display screens for advertising

hot sale High performance indoor advertising digital P3.91 waterproof led display screens for advertising

hot sale High performance indoor advertising digital P3.91 waterproof led display screens for advertising
hot sale High performance indoor advertising digital P3.91 waterproof led display screens for advertising
hot sale High performance indoor advertising digital P3.91 waterproof led display screens for advertising
Product Details:
Place of Origin: CHINA
Brand Name: SCXK
Certification: CB/CE/ROHS/FCC/ISO/UL
Model Number: SMD P3.91
Payment & Shipping Terms:
Minimum Order Quantity: 16 sqm
Price: negotiation
Packaging Details: wooden case,flight case,it is up to you.
Delivery Time: 5-10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 4300 sqm month
Contact Now
Detailed Product Description
Application:: Rental Event Color:: RGB
Panel Size:: 500x1000x90mm Use:: Advertising Publish, Shopping Mall, Display Of Dishes
Product Name:: Led P3.91 Indoor Display Cabinet Size:: 500x500mm/500x1000mm
Refresh Frequency:: ≥3840Hz LED Size:: SMD2020
Cabinet Material:: Magnesium
High Light:

indoor led display screen

,

indoor led billboard

SCX LED Indoor 500*1000mm 500X500mm Double Size Panel Curved Led Screen Display With P 2.9 P3.91 Video Wall For Events



Slim and Light Weight Cabinet Design

Die cast aluminum cabinet, perfect splicing without gaps. Weight only 8kg, easy to handle. Fast locking makes assembly and disassembly extremely easy. High-quality plugs ensure reliability.



Front Service Magnetic Module For Quick and Easy Maintenance

Rear control box uses snap-in design, maintenance and installation is more efficient and convenient.



Absolute 4K HD Display Visual Effects

High contrast 3000:1 and ultra-high-definition perfect picture quality, bring you absolute visual enjoyment.
easily attract attention, greatly enhance the value of advertising.



Quick Setup and Disassebmly

Unique brake lock design, the upper and lower cabinet connection can be completed in only one second, use the method to watch the video below.



Adjustable Angle Lock

The cabinet can be arc-shaped connected, with its own angle adjustment device, can achieve concave and convex 10 degrees of adjustment to meet the different arc connection requirements.


Product specification

SMD P3.91
Lamp size 2121
Resolution/mm 3.91
Pixel configuration RGB 3 in 1
Pixel density/pixels/m² 64510/m²
Module resolution 64x64
Module size/mm 250x250
View distance ≥2m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >8000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 14 bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode Constant driving current
Scanning mode 1/8
Frame rate 60Hz
Refresh frequency >4200Hz
Control mode Computer synchronous
Brightness adjusted range Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss
Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡ <1000W
Average power:/㎡ <280W
Self-check technology LED spot self-check, communications check, power check,
temperature monitor(need customization)
Remote monitoring Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)
Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%


Product Overviews

Items Indoor Led display:
P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10
Outdoor Led display:
P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25
Material steel,aluminum ,die casting aluminum
Payment
terms
30% deposit before production, 70% balance before shipping
T/T
Western Union
Packing: Standard Export Carton with fully Polyfoam or Pearl Wool
Flight case;
Anti-shaking wooden case
Shipping: 5 to 7 working days upon receiving deposit payment
After-Sales-Service: Lifetime with professional engineer support for free.
Within 5 year, supply spare parts for free if has quality problem
( not by man-made damage)
Using Range Shopping mall,bank,bus station, train station,
center of downtown, airport, school, factory, bus, taxi,and so on.

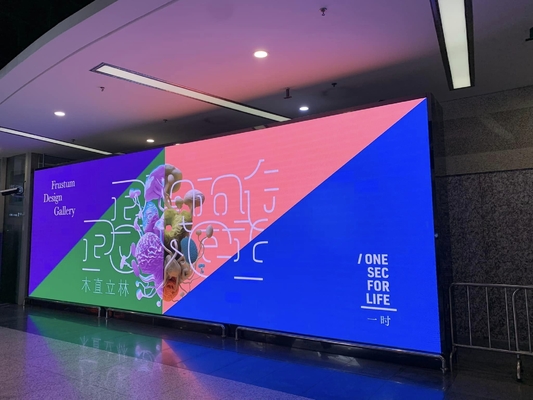

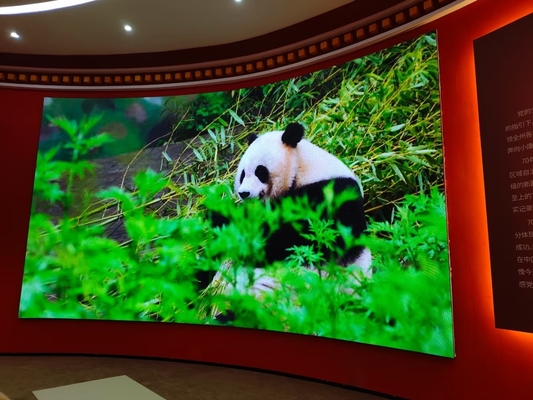

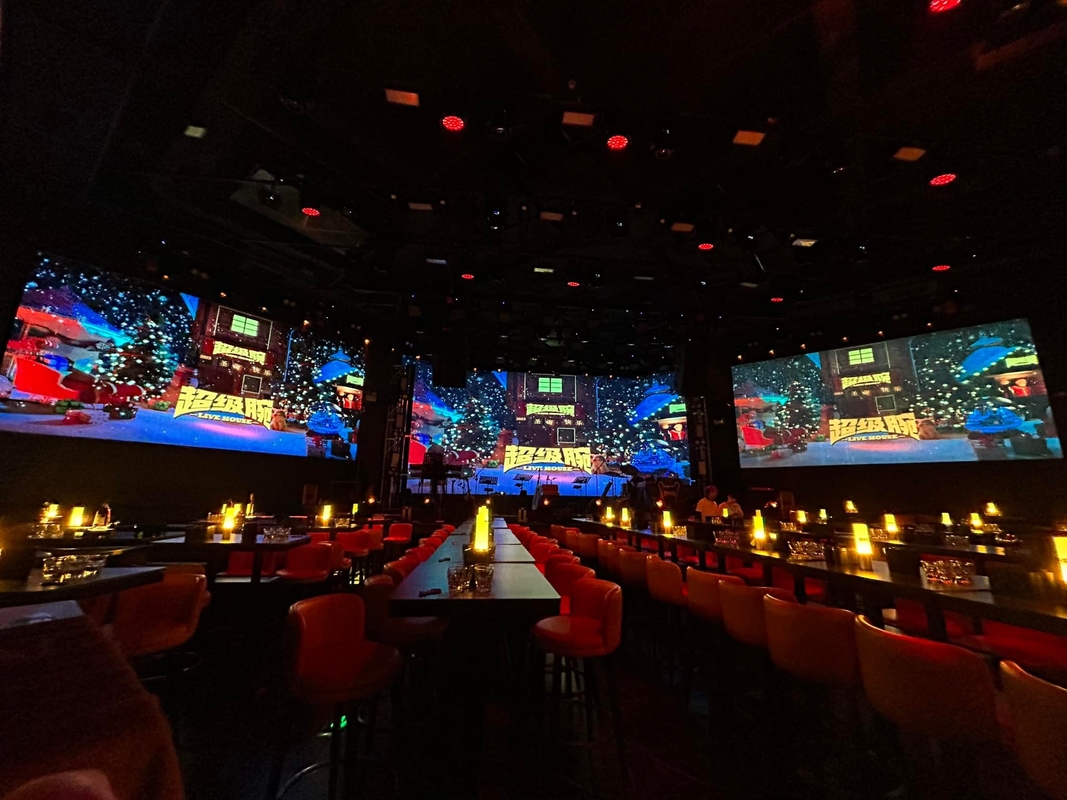

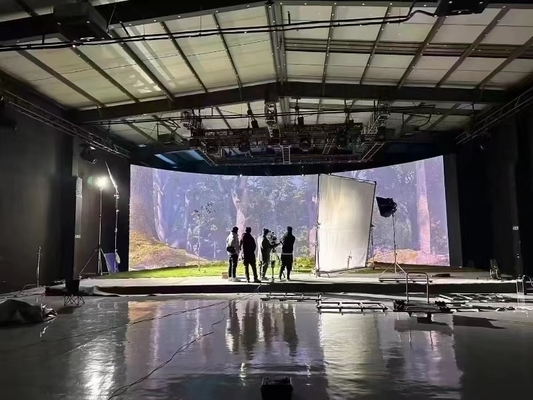

Our case

hot sale High performance indoor advertising digital P3.91 waterproof led display screens for advertising 0hot sale High performance indoor advertising digital P3.91 waterproof led display screens for advertising 1hot sale High performance indoor advertising digital P3.91 waterproof led display screens for advertising 2


Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

Features
1. Seamless --- precision cabinet, light weight and more durable.
2. Quality LEDs --- with wide viewing angle to ensure vivid and sharp images and video.
3. High refresh rate and high gray scale --- to ensure color consistency and better images


Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.

our service

1. Warranty is for 2 years: During the warranty period, we will maintain and replace the defect components for free if there is any quality problem due to us. After 2 years, we will charge the material and freight cost.

2. Free Training: You can send your engineers to our factory for free of charge training, which includes the software, operation, installation, adjustment, basic repairing, etc.

3. Technical Support: All operation manuals, software, CAD drawings of the steel structure and instruction of installing the cabinets can be provided for free. Online technical support by remote control is also available. If needed, we can send engineers to your country to instruct and help the installation.

4. If you need, we can send our engineer to guide the installation for you. But the relevant cost should be paid by your company such hotel, food, round trip ticket.



FAQ

Q1: What's the warranty of your LED Display Screen ?
A1: We have a 3-year warranty for our led display screen, and 100,000 hours life span of the led lamps.
Q2: What about your Pre-sale service and After-sale service?
A2: For Pre-sale service: We have a professional sales team and professional technical team who are willing to answer your question 24 hours on line. We can offer a set of solution for your project!

For After-sale service: We can instruct you how to use, adjust the screens, and common maintenance with spare parts.

Also, we can send engineers to your country if you need.

Q3: What’s your payment term? How long it takes to delivery?

A3: We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery.

Production time would be about 15-25 days according to your order quantity.
Q4: What's the control system?
A4: For synchronous control system: We use Nova, Linsn or Colorlight control system.

For asynchronous control system: We use Onbon or Xixun control system.
Q5: How can you ensure the led display product quality?
A5: We have nearly 10-year experience in producing Led Display with good reputation in this industry.

We would do 24 hours ageing to promise 100% non-dead chips before shipment.
