Flexible Outdoor Stage LED Screens Display High Definition SMD2727 3 Years Warranty

Flexible Outdoor Stage LED Screens Display High Definition SMD2727 3 Years Warranty

Flexible Outdoor Stage LED Screens Display High Definition SMD2727 3 Years Warranty
Flexible Outdoor Stage LED Screens Display High Definition SMD2727 3 Years Warranty
Flexible Outdoor Stage LED Screens Display High Definition SMD2727 3 Years Warranty
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CB,CE,ROHS, FCC.UL.CUL
Model Number: SCXK-P6
Payment & Shipping Terms:
Minimum Order Quantity: 10 sqm
Price: negotiation
Packaging Details: wooden case,flight case,it is up to you.
Delivery Time: 7-16 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5600 sqm month
Contact Now
Detailed Product Description
Material:: Iron And Steel Cabinet Cabinet Size:: 576x576*85mm
Module Size:: 192mm X192mm Warranty:: 3 Years
Led Light:: SMD2727 Led Chip:: Epistar
Scan Way:: 1/8 Scan Dot Density:: 27778 Dots/sqm
Waterproof: IP68 Product Name: Outdoor P6 Waterproof Led Display
High Light:

perimeter led display

,

led perimeter advertising boards

Flexible Outdoor Stage LED Screens Display High Definition SMD2727 3 Years Warranty


Core Advantages

Color Uniformity: The LED display would present uniform color at all times with low power consumption and low temperature rise.

No Blackout during Use: Reliable communication-level power supply and rational power distribution system lead to stable and safe operation.

No Black Screen during Use: Constituted by loop transmission, intelligent switch, anti-hacker security and fault alarm, the most reliable data transmission mode is incorporated internally.

Safe Maintenance: It supports hot swapping, which is more safe and convenient for maintenance personnel.



♦ Product specification

outdoor SMD P6
Resolution/mm 6
Pixel configuration 1R1G1B
Pixel density/pixels/m² 27778/m²
Module resolution 32x32
Module size/mm 192x192
View distance 5-400m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >8000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode Constant driving current
Scanning mode (1/8)
Frame rate 60Hz
Refresh frequency >3000Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃
Maximum power:/㎡ <900W
Average power:/㎡ <300W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%

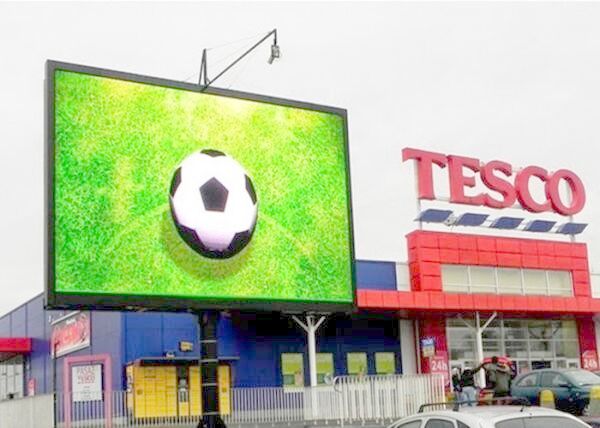

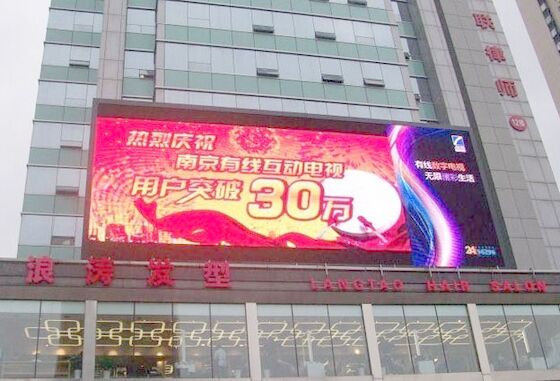

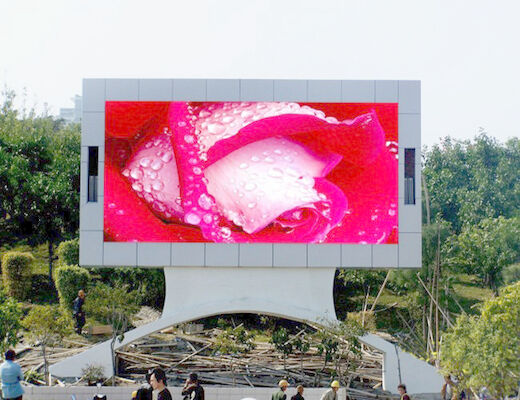

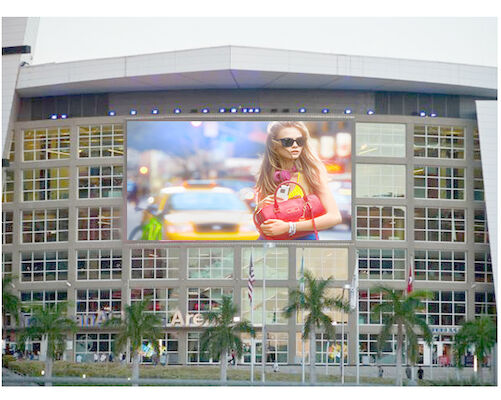

 Our  case

Flexible Outdoor Stage LED Screens Display High Definition SMD2727 3 Years Warranty 0Flexible Outdoor Stage LED Screens Display High Definition SMD2727 3 Years Warranty 1Flexible Outdoor Stage LED Screens Display High Definition SMD2727 3 Years Warranty 2Flexible Outdoor Stage LED Screens Display High Definition SMD2727 3 Years Warranty 3



♦ Production process:

1) Incoming Inspection→2) SMD→3) Plug-in

→4) Wave Soldering→5) After Welding→6) Testing

→7) Semi Finished Aging→8) Module Assembly

→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

Flexible Outdoor Stage LED Screens Display High Definition SMD2727 3 Years Warranty 4

♦ Packaging and shipping

Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.



♦ Why choose us:

Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.

Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.



Our team will be forever here to offer you full supports
