Indoor/Outdoor Advertising Curved LED Display Screen IP34 3.91mm Pixel Pitch curved led display

Name: Indoor/Outdoor Advertising Curved LED Display Screen IP34 3.91mm Pixel Pitch curved led display
Brand: Shenzhen ShiXin Display Technology Co.,Ltd
SKU: P3.91
Price: 5,500.00 USD
Availability: InStock

Brand Name:	SCX
Model Number:	P3.91
MOQ:	1 SQM
Price:	USD 1000-10000
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000 sqm per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,FCC,SASO

Led Module:

250*250mm

Pixel Pitch:

3.91mm

Pixel Density:

65410 Dots/sqm

Operating Humidity:

10 - 90 % RH

Protection Level:

IP34

Temperature-operating:

﹣30℃～60℃

Display Function:

Video,animation,graphics

Warranty:

3~5 Years

Brightness:

5000

Cabinet Size:

500*1000*85mm

Packaging Details:

Wooden Case , Size: 60x62x50cm, Wooden Case, Size:70x65x55cm

Highlight:

led video screen rental

led rental screen

Product Description

Indoor And Outdoor Advertising Curved Led Display Screen Wall Outdoor Led Large Screen Display

Features

>>Energy saving

>>Easy installation

>>Environmental protection

>>High brightness, high refresh rate 3840Hz

>>Adopt high refresh rate IC for better viewing effect

>>Pass the highest/lowest temperature test
>>Wide viewing angle: horizontal angle 160 degrees, vertical angle 140 degrees

Specification

Unit Module Specifications
Item	P3.91	P4.81	P5	P6	P8	P10
Pixel Pitch	3.91 mm	4.81 mm	5 mm	6 mm	8 mm	10 mm
Pixel Configuration	3in1 (1R1PG1B)
Module Size(MM)	250*250	250*250	320*160	192*192	256*128	320*160
Module Resolution(Dots)	64*64	64*64	64*32	32*32	32*16	32*16
Module Weight(Kg)	0.45	0.45	0.5	0.35	0.32	0.5
Package LED Mode	SMD1921	SMD1921	SMD2727	SMD3535	SMD3535	SMD3535
Max Power(Watt)	42	40	38	25	12	12
Pixel Density(Dots/SQM)	65410	43222	40'000	27'777	15'635	10'000
Driving Method	Constant Current Driving
Scan Method(Scan)	1/16	1/16	1/8	1/8	1/4	1/2
Interface Way	HUB 75
Brightness(CD/SQM)	≥ 1100	≥ 5500	≥ 7000	≥ 7000	≥ 7500	≥ 8500
Safety Standard	CCC,FCC,ROHS,TUV,CE,ETL,UL,BIS.....
Unit Cabinet Specifications
Cabinet Size(MM)	500*500	500*500	640*640	576*576	768*768	960*960
Cabinet Composing(PCS)	4	4	8	9	18	18
Power Supply Mode(Per Cabinet)	5V60A	5V40A	5V40A	5V40A	5V60A	5V60A
Cabinet Resolution(Dots)	128*128	104*104	128*128	96*96	96*96	96*96
Optimal Viewing Distance(M)	3-300	4-400	5-500	6-600	8-800	10-1000
Optimal Viewing Angle	Horizontal angle: 160 degree; Vertical angle: 140 degree
Environment Temperature	Storage: -40 degree ~ +85 degree; Work: -20 degree ~ +60 degree
Relative Humidity	10% ~ 95%
Power Supply Specifications
Operating Voltage	AC:100V~120V AC:220~240V
Average Power(W/SQM)	150-350	150-320	150-320	150-320	120-280	150-300
Max Power Consumption(W/SQM)	≤ 850	≤ 750	≤ 780	≤ 720	≤ 720	≤ 650
Current	≤ 20mA (single LED)
Control System Specifications
Computer	Pentium4 or above P4 or above
Operate System	Win7-11/2000/NT/XP
Control Mode	Synchronization with PC
Main Technical Parameter Specifications
Driving Device	Constant Current Driving
Refresh Rate	≥ 1900-3840Hz
Gray/Color	RGB each 256 grade, can display 16.7color
Lifespan	≥ 100000hours
Power Switch	RGX Automatic Switch
Display Mode	2048102410247681280*960mm
For more information please contact our sales.

Product Details

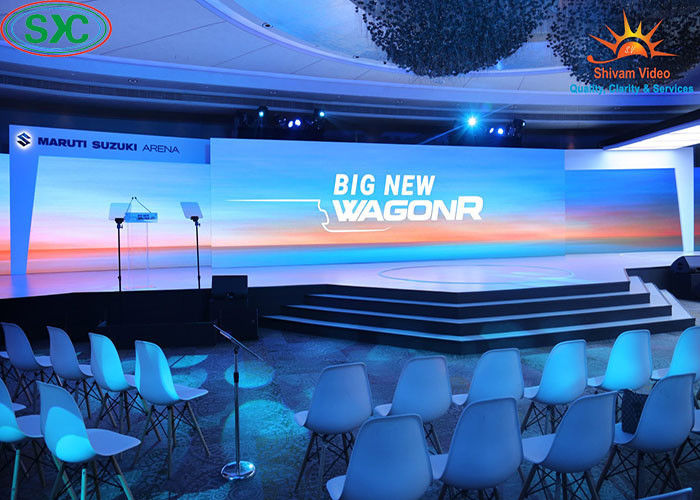

Indoor/Outdoor Advertising Curved LED Display Screen IP34 3.91mm Pixel Pitch curved led display 0

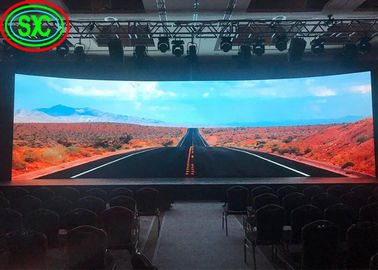

Indoor/Outdoor Advertising Curved LED Display Screen IP34 3.91mm Pixel Pitch curved led display 1

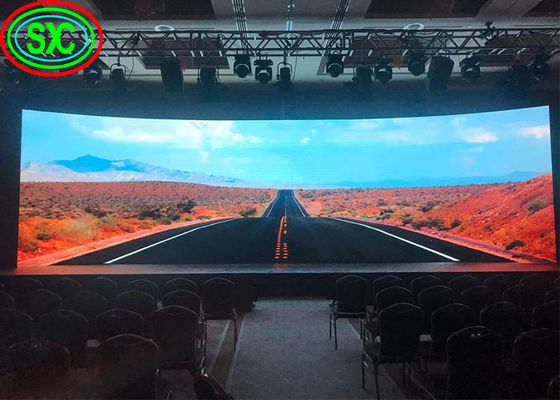

Indoor/Outdoor Advertising Curved LED Display Screen IP34 3.91mm Pixel Pitch curved led display 2

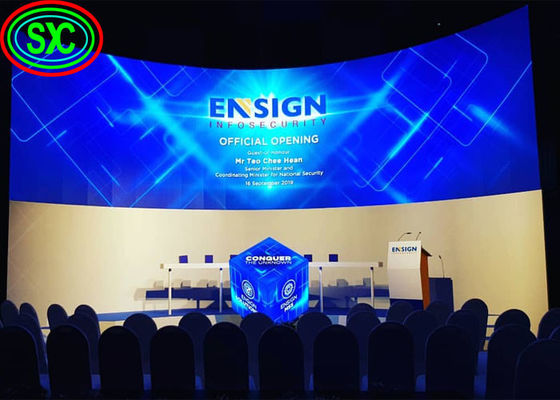

Indoor/Outdoor Advertising Curved LED Display Screen IP34 3.91mm Pixel Pitch curved led display 3

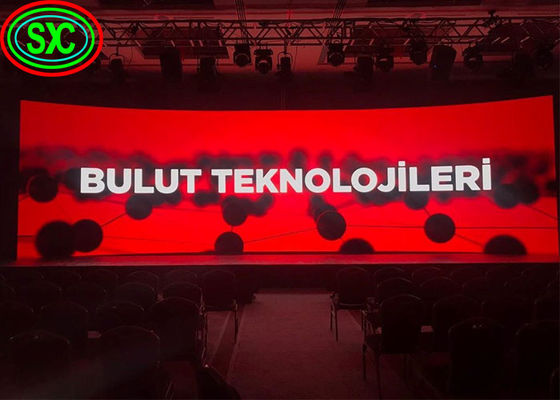

Indoor/Outdoor Advertising Curved LED Display Screen IP34 3.91mm Pixel Pitch curved led display 4

Indoor/Outdoor Advertising Curved LED Display Screen IP34 3.91mm Pixel Pitch curved led display 5

LED Control System

Our Service

1. We can provide customers a comprehensive solution delivery of series-related products

2. We can provide customers high quality products which allow they to scream

3. We can provide custom-made service.

4. We can provide customers one year free warranty, and support renewals extended

5. We can provide customers the free installation guidance and technical support

6. We willing to provide any countries and regions in the world with products and technical

support. at present, our product has covered more than 100 countries and regions.

FAQ

1. Can we make any size of indoor led screen?
Nope , according the led module size and cabient size, such as p3.9 mm indoor led screen,

the smallest unit size is: 500x500mm.

2,What's best size of indoor led screen?
The best aspect ratio of LED display are W16:H9 or W4:H3, recommand order 4x3=12pcs

for the demo ph3.9 mm indoor led screen,

3,How to install indoor led screen?
We will provide drawing of steel structure or hanging truss,then you can install indoor led screen,

very easy.

4,How to order indoor led screen?
Please tell me indoor or outdoor do you need,size of led display,where will be application

of indoor led screen

5,How to shipment?
Normally, ph3.9 mm indoor led screen will be shipped by air or by sea , because the value is

high than other product too much.

6,How to payment?
You can transfer payment by TT,West union, recommand Alibaba Trade Assurance.
